Description
Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving.

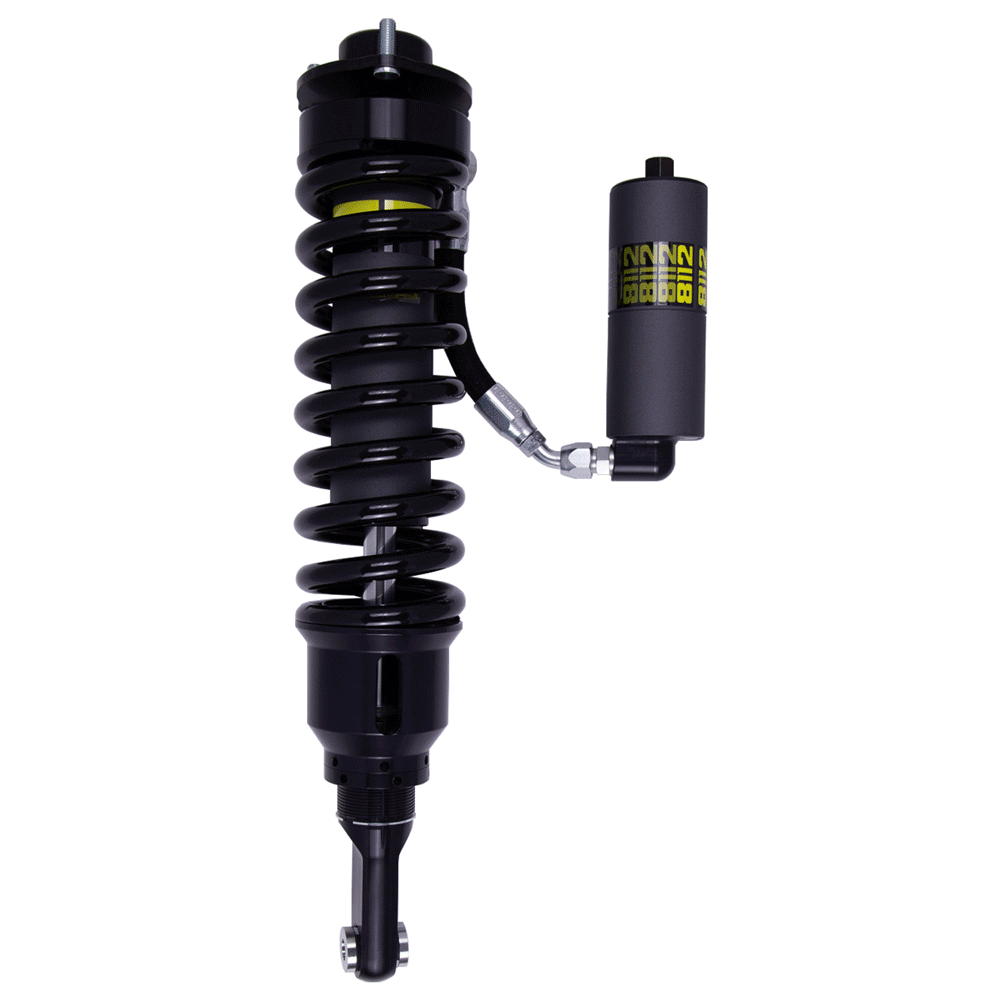

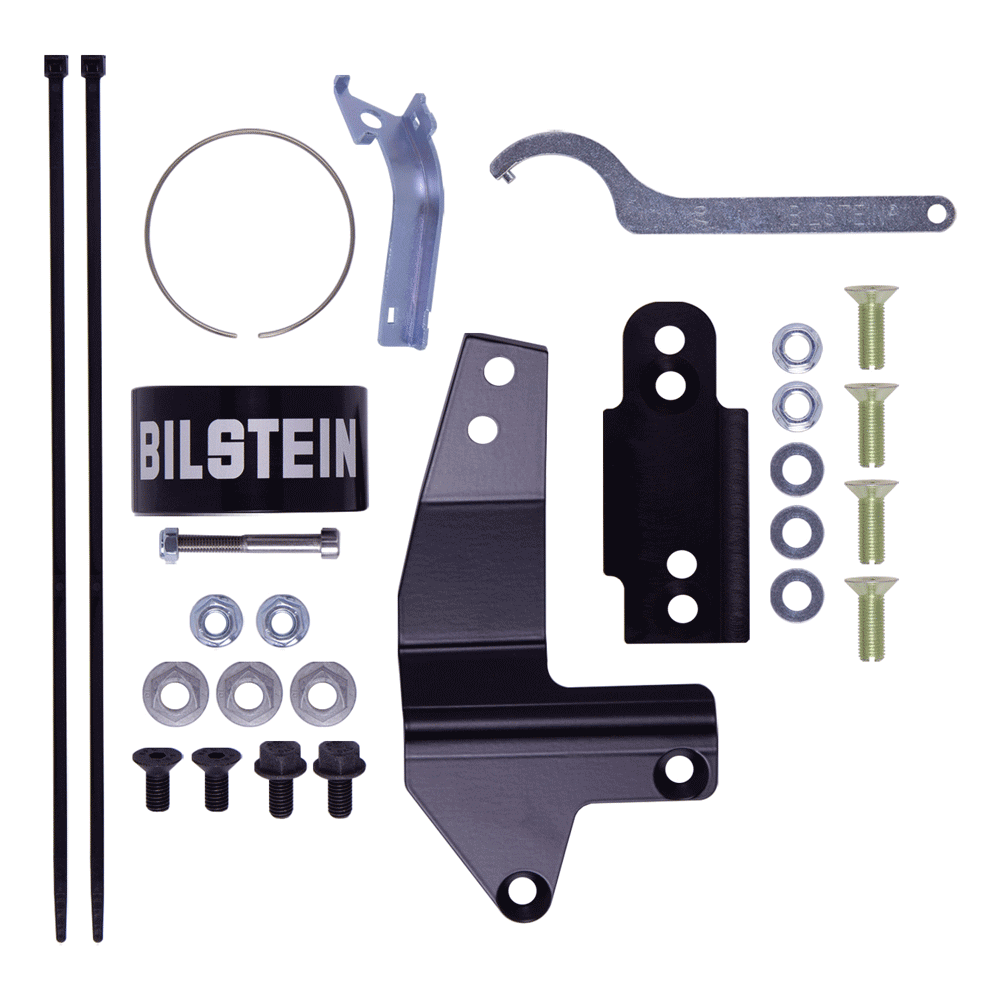

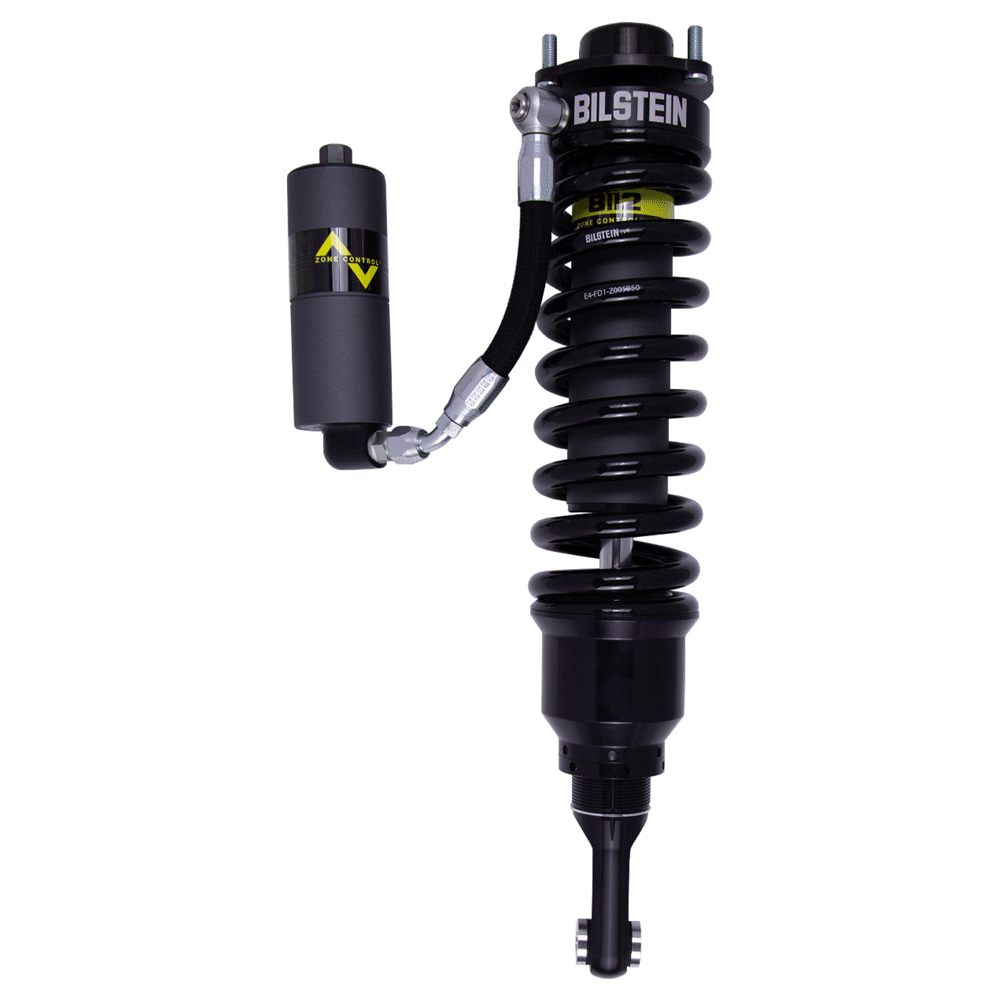

The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount.
BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Specifications:
-
Collapsed Length (in) - 17.99
-
Extended Length (in) - 22.80
-
Collapsed Length (mm) - 456.9
-
Extended Length (mm) - 579.1
-
Finish Dampers: Zinc Plated/Springs - Black.
-
Reservoir - Yes.
-
Body Design - Smooth Body (Coilover).
-
Body Diameter - 60mm.
-
Adjustable Damping - Non-Adjustable.
-
Optional Heavy Load Springs - 53-291387.
Notes:
- Front lift height - 1.5"-3".
- Without kinetic dynamic suspension system (KDSS).
