Dirt King Fabrication - Ball Joint Upper Control Arms - Toyota Tacoma (2005-2023)


Price:
Sale price$749.00

Shipping calculated at checkout

Stock:
This item may have a lead time and/or ships directly from the manufacturer

Description

Please allow up to 6 weeks for production.

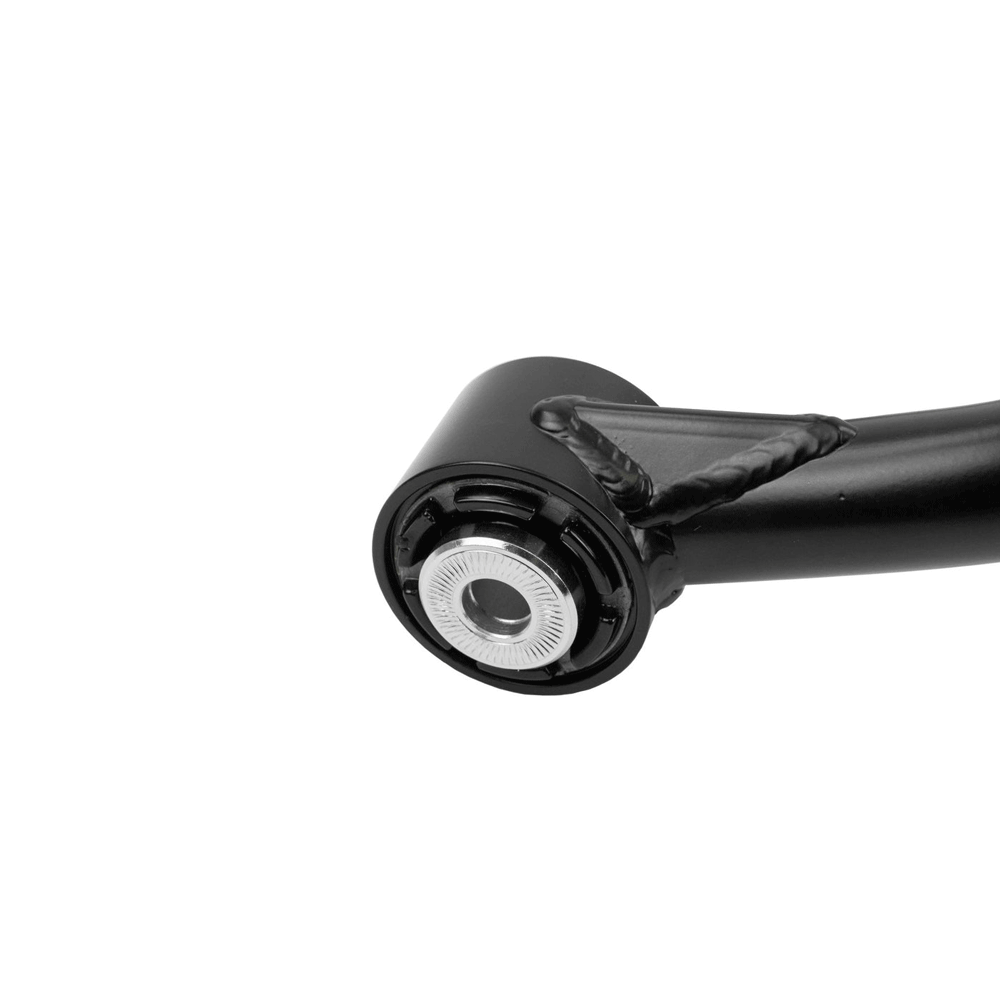

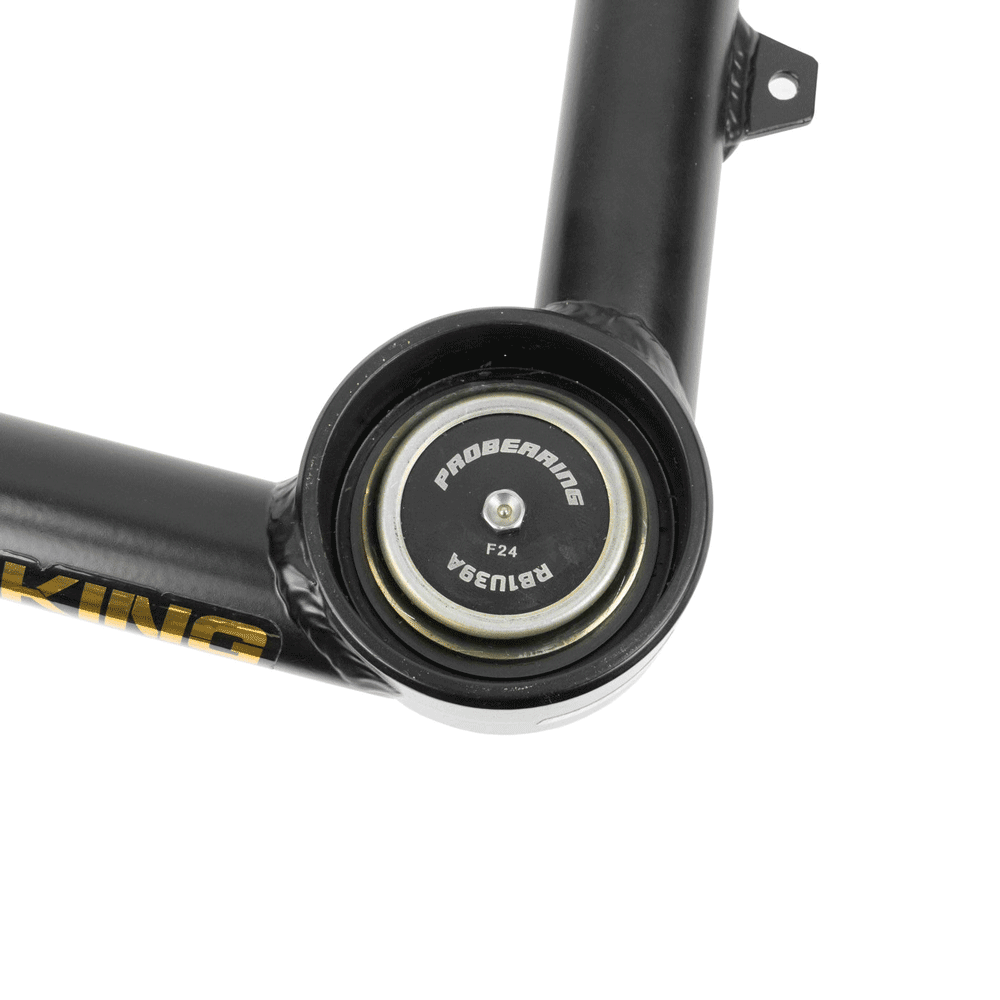

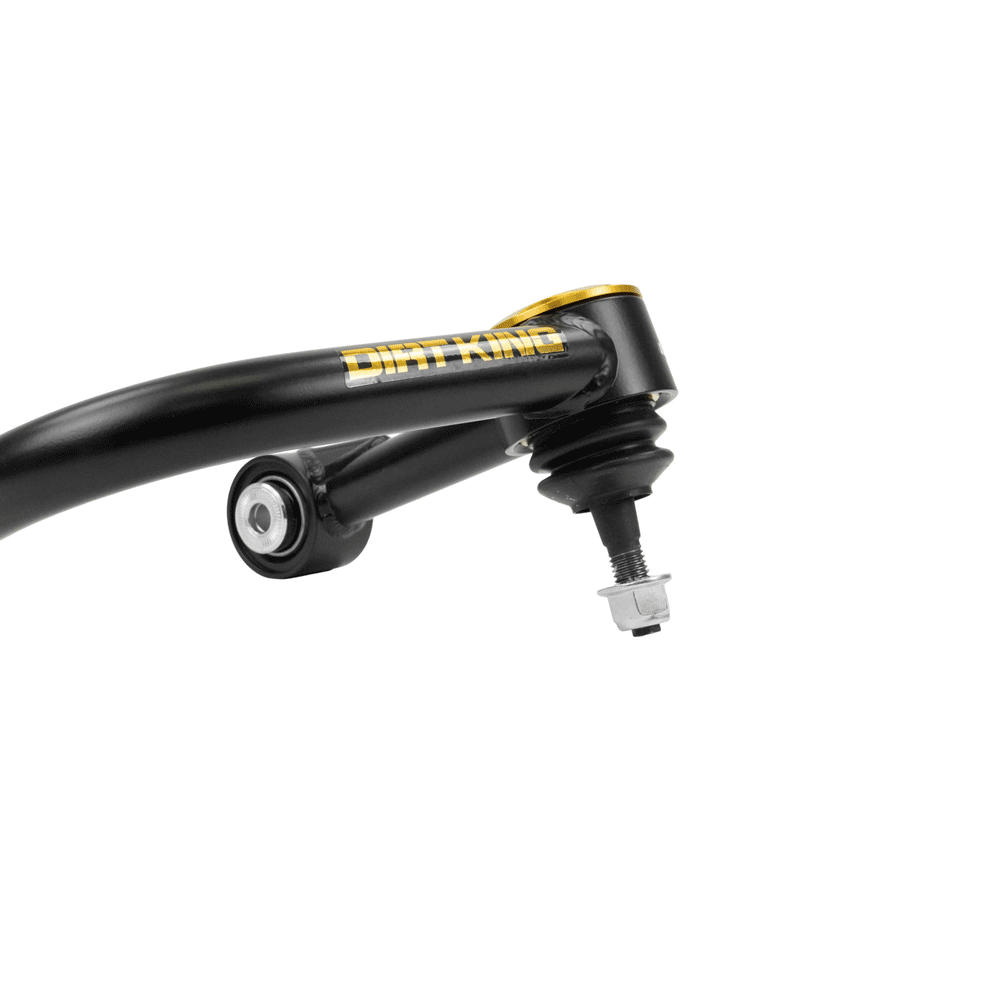

The Dirt King ball joint upper control arms are engineered to improve suspension geometry, enabling additional front lift when paired with Dirt King shocks. Lifting a vehicle with stock upper control arms compromises both the geometry and structural strength due to excessive articulation at the factory joints. The Dirt King arms address these issues with improved caster settings for enhanced handling and re-engineered pivot angles for increased articulation. The inner pivots feature Probearing Pro 2 Series bushings, offering the ideal combination of a free-spinning inner sleeve, typical of poly bushings, with the maintenance-free and greaseless advantages of OE elastomer bushings. Additionally, the standard ball joints have been upgraded to heavy-duty Moog ball joints ensuring superior durability. All components of these upper control arms are rebuildable or replaceable, promoting long-term durability and ease of maintenance. These arms arrive preassembled with detailed instructions for a straightforward installation.

Specifications:

Wheel travel: Additional 1” of down travel compared to stock:

  • Amount of lift: Allows for 0-3” of lift.
  • Track width: Stock.
  • Maximum backspacing: 4.75”.
  • Minimum rim size: 16”.

Wheel travel/lift:

The Dirt King upper control arms must be paired with aftermarket coilover shocks to lift the vehicle. The Dirt King arms offer an additional 1” of down travel compared to the stock upper control arms. These arms are compatible with Dirt King, King, Fox, Bilstein, ADS and Icon coilovers. Do not install these upper control arms with coil spacers paired with extended length aftermarket shocks.

Tire info:

The upper control arms will allow for 33” tires but the front section of the cab mount may need to be cut to avoid tire rubbing while turning. In addition, the front bumper may require trimming for proper tire clearance.

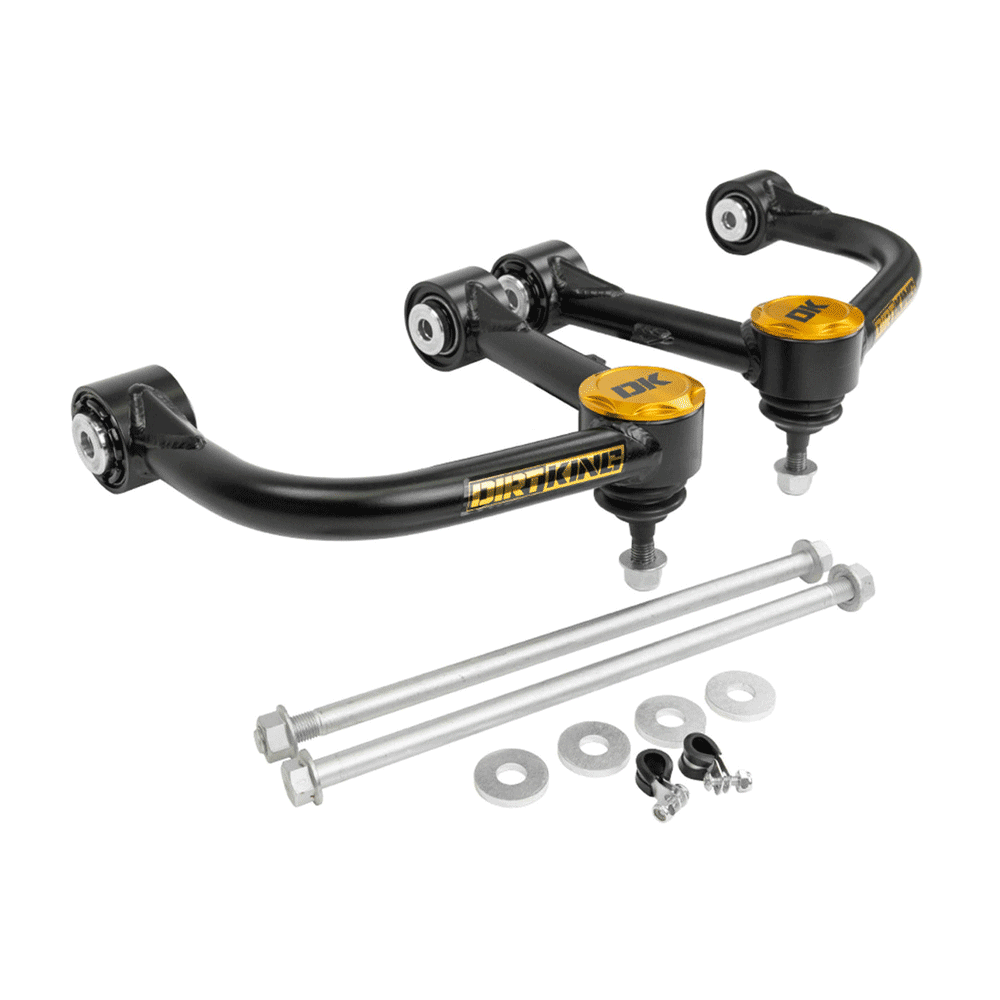

What's included:

  • Chromoly upper control arms.
  • Urethane bushings.
  • Grease fittings.
  • Moog ball joints.
  • Upgraded dust boots.
  • Zinc plated bushing washers.
  • Zinc-plated inner bushing sleeves.
  • Durable black powder coat.
  • Dirt King sticker pack.
  • Installation instructions.

Features:

  • CAD designed.
  • Formed steel bushing gussets.
  • Constructed with 4130 chromoly tubing.
  • Preassembled for fast installation.
  • Grease fitting ports for easy servicing.
  • Zinc plated components for corrosion resistance.
  • Professionally MIG welded.
  • Proudly made in the USA.

Compatibility:

  • 2005-Current Toyota Tacoma 2WD/4WD.
  • *Not compatible with 5 lug Tacoma’s.
