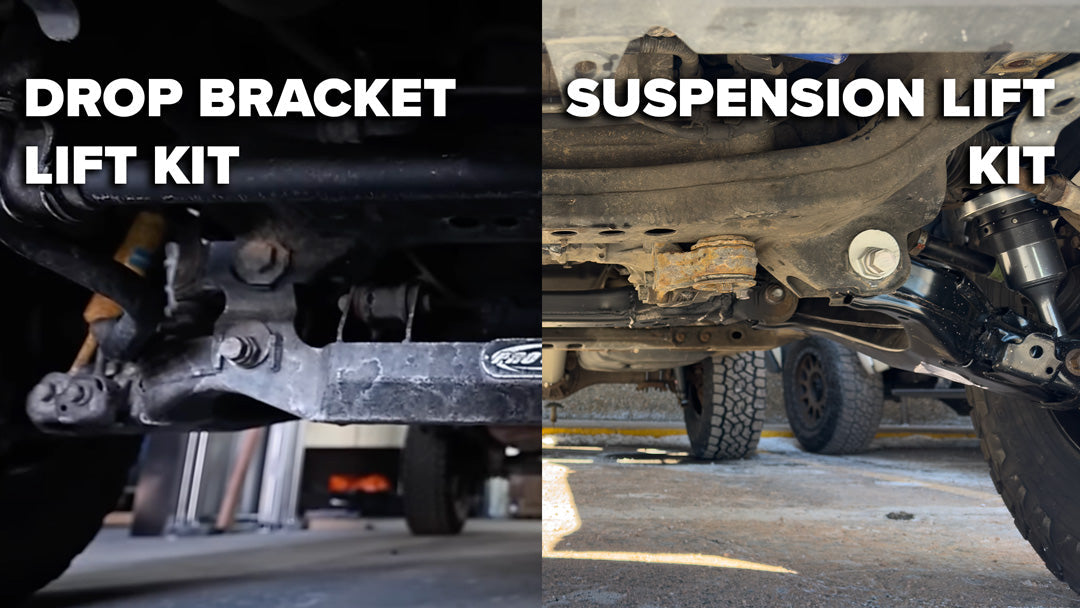

Suspension Lift Kit vs. Drop Bracket Lift Kit: What's the Difference?

When it comes to modifying your Toyota truck or SUV for off-road performance, one of the most common upgrades is a lift kit. Lift kits not only enhance ground clearance but also improve approach, departure, and breakover angles, making your vehicle more capable on rugged terrain. However, not all lift kits are created equal. Two popular options are suspension lift kits and drop bracket lift kits. While both achieve the goal of lifting your vehicle, they differ in design, performance, and suitability for various off-road needs. Let’s break down the differences to help you decide which is right for your build.

What is a Suspension Lift Kit?

A suspension lift kit raises the vehicle by modifying or replacing key components of the suspension system, such as:

• Control arms

• Coil springs or struts

• Shocks

• Leaf springs (if applicable)

The primary goal is to create additional ground clearance between the vehicle's undercarriage and the trail. By extending the suspension system's height, a suspension lift kit allows for the installation of larger tires, further improving clearance and traction.

Key Features of Suspension Lift Kits:

1. Improved Articulation: Since the suspension is redesigned or upgraded, suspension lift kits often improve the vehicle's ability to flex and articulate over uneven terrain. This is crucial for rock crawling and technical trails.

2. Better Ride Quality: High-quality suspension lift kits use upgraded shocks and springs, which can provide better on-road comfort and off-road performance compared to stock components.

3. Customizable Heights: Available in various heights, suspension lift kits allow you to choose a lift size that fits your specific needs—whether it’s a mild 2-inch lift or an extreme 6-inch lift.

4. Increased Ground Clearance: The entire undercarriage sits higher, offering better protection from rocks, stumps, and other trail obstacles.

What is a Drop Bracket Lift Kit?

A drop bracket lift kit, also known as a spacer lift or subframe drop kit, achieves lift by lowering the mounting points of the suspension components relative to the vehicle’s frame. This is done by installing drop brackets, which allow the suspension geometry to remain closer to factory specifications while raising the vehicle.

Drop bracket lift kits are most commonly used on independent front suspension (IFS) vehicles where maintaining factory angles for steering and drivetrain components is crucial for longevity and performance.

Key Features of Drop Bracket Lift Kits:

1. Factory Suspension Geometry: Drop brackets are engineered to retain the original angles of control arms, CV axles, and steering linkages. This minimizes wear and tear on these components and avoids issues like bump steer.

2. Cost-Effective Solution: These kits tend to be less expensive than fully replacing suspension components and are easier to install.

3. Primarily for Larger Lifts: Drop bracket kits are most effective for lifts above 4 inches, where maintaining driveline angles becomes challenging with standard suspension lifts.

4. Cutting the Subframe: One of the most significant drawbacks of drop bracket lift kits is the requirement to cut a section of the subframe to allow the driveshaft to clear. This modification can have serious implications:

   • Permanent Alteration: Once the subframe is cut, reversing this modification is extremely costly and complex.

   • Resale and Insurance Issues: Dealerships and auctions often consider a vehicle with a cut subframe to be totaled, drastically affecting its resale value. Additionally, some insurance companies may deny coverage or devalue a vehicle with this type of modification.

   • Reduced Structural Integrity: Cutting the subframe can weaken its overall strength, which may be a concern for both off-road and daily driving use.

5. Reduced Ground Clearance Underneath: While the vehicle’s body is lifted, the lowest parts of the suspension (such as crossmembers) remain closer to the ground, potentially reducing ground clearance for extreme off-road use.

How Do They Compare?

Which One is Right for You?

Choosing between a suspension lift kit and a drop bracket lift kit depends on your goals and how you plan to use your vehicle.

• Go for a Suspension Lift Kit if:

  • You need maximum ground clearance for tackling rugged trails.

  • You’re building a highly capable off-road rig for activities like rock crawling.

  • You’re willing to invest in premium parts and a more complex installation.

• Opt for a Drop Bracket Lift Kit if:

  • You want a cost-effective way to lift your vehicle, especially for IFS setups.

  • You need a larger lift (4 inches or more) while maintaining factory suspension geometry.

  • Your off-roading is limited to mild to moderate trails, not extreme conditions.

  • You are aware of the implications of cutting the subframe and are prepared for the potential downsides.

Final Thoughts

Both suspension lift kits and drop bracket lift kits have their place in the off-road world. Understanding their differences—including the significant drawbacks of cutting the subframe for a drop bracket kit—will help you make an informed decision. At Runnin4Tacos, we specialize in off-road builds and can help you find the perfect lift kit for your Toyota truck or SUV. Whether you’re looking for premium suspension upgrades or a reliable drop bracket solution, we’ve got you covered.
