Diode Dynamics - SS42 Light Bar


Price:
Sale price$560.00

Shipping calculated at checkout

Stock:
May have applicable lead time / Ships from Manufacturer

Description

Features:

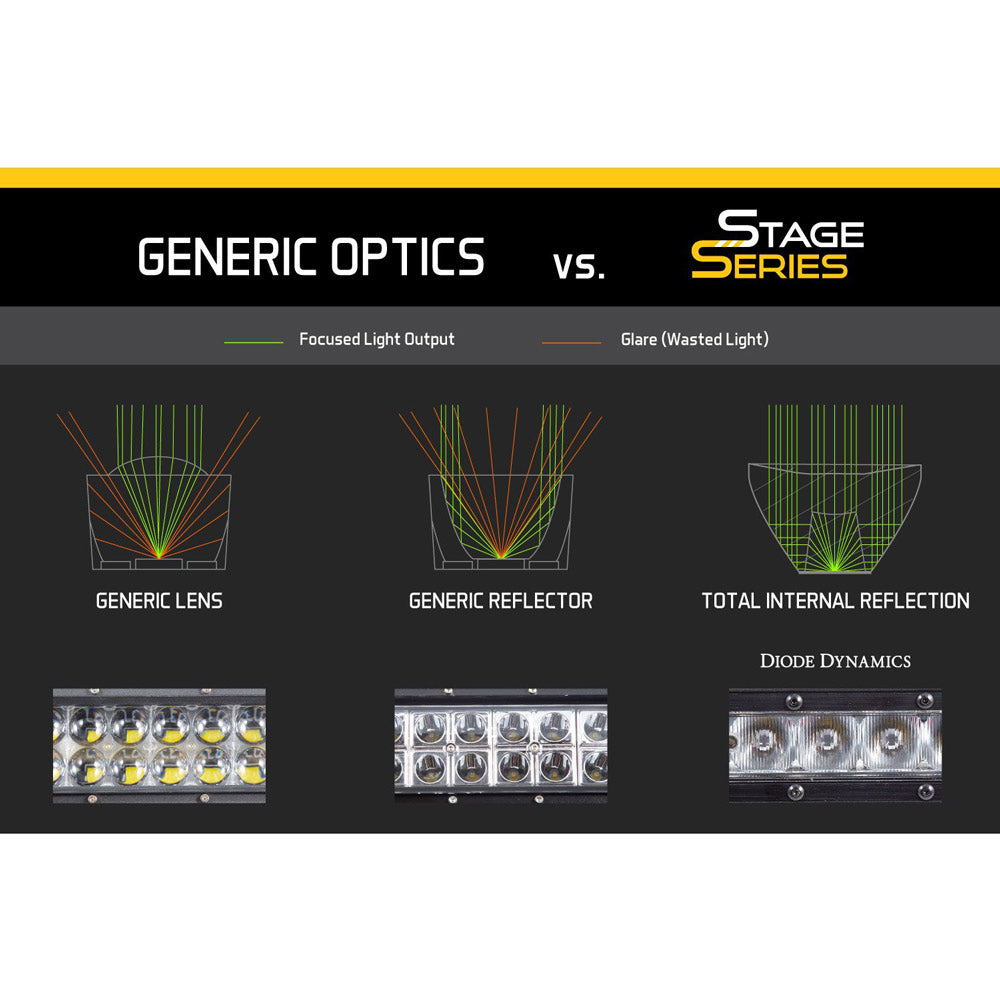

  • Advanced TIR optics provide high efficiency and focus
  • High-intensity automotive-type LEDs with pure white color

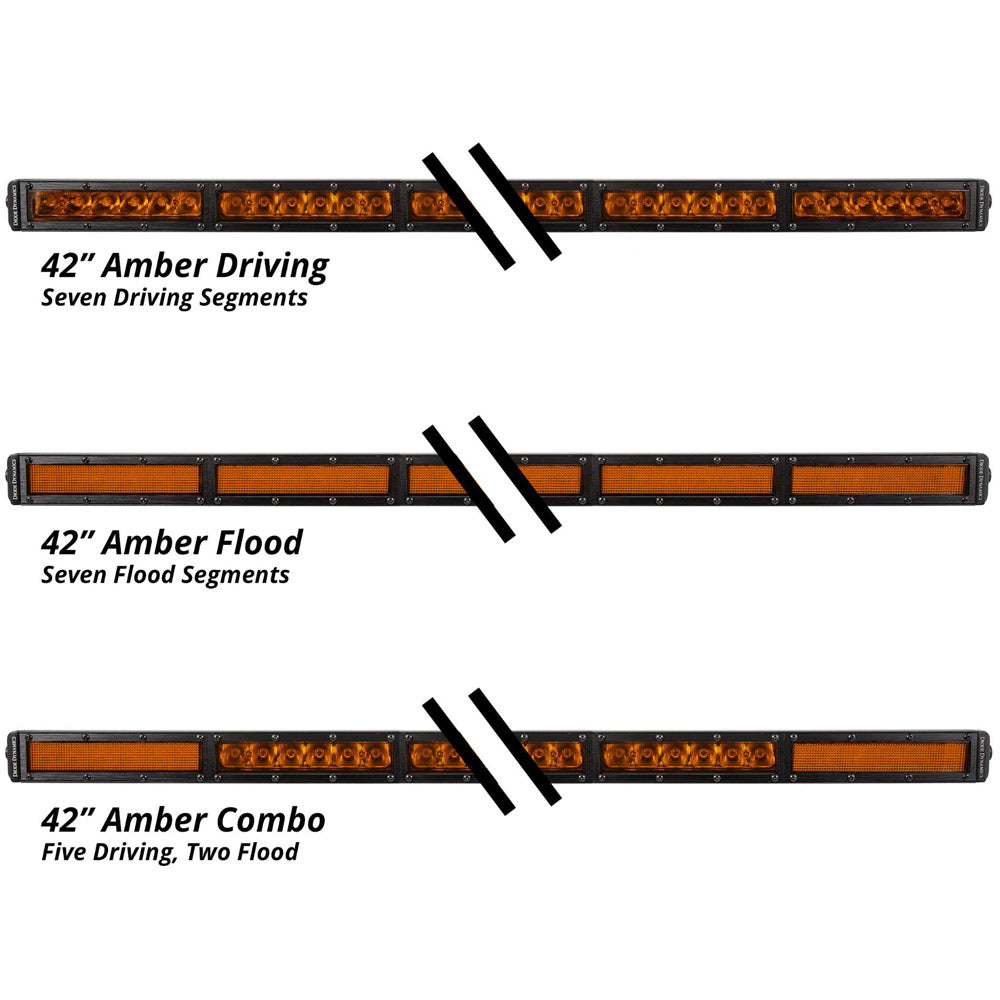

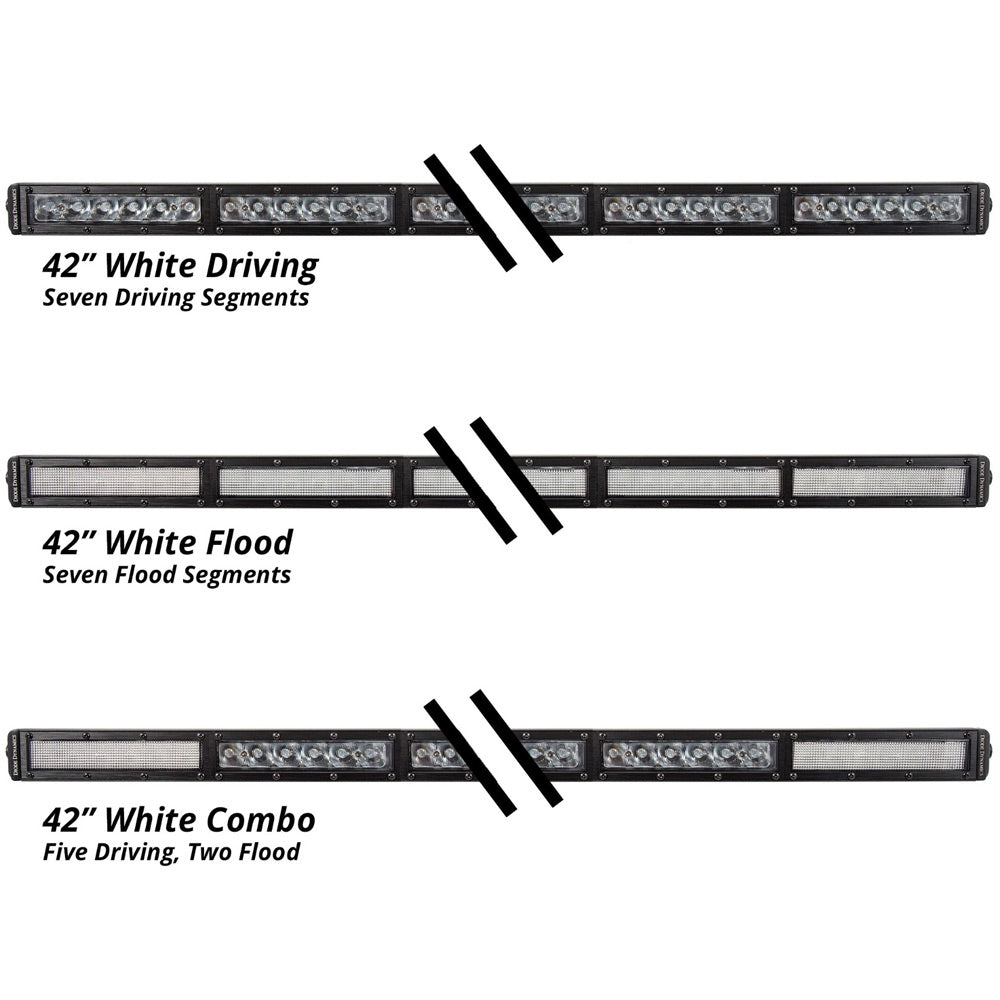

  • Available in Driving, Flood, or Combo beam patterns
  • Slim 42mm housing for low-profile fitment
  • Durable matte powder-coated extrusion

What's included in the box:

  • One (1) LED light bar (White or Amber)
  • One (1) wire pigtail
  • Universal bracket set

Quantity:

  • One (1)

Hardware:

  • Two (2) M6 Hex Screws, for the main mounting point
  • Two (2) M5 Hex Screws, for rear mounting point

Fitment:

  • With the included universal bracket set, this product can be installed on any make or model.

    Specifications:

    • Color Temp (CCT): 6000K

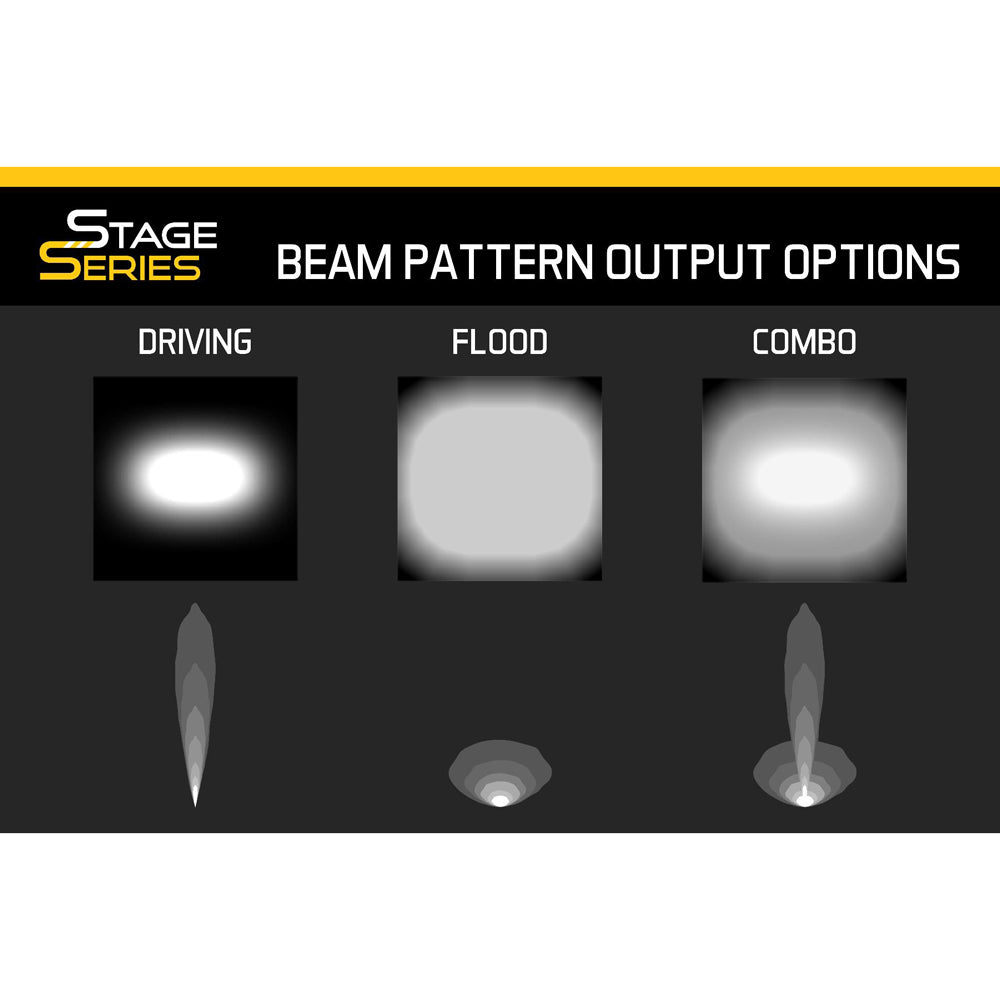

    • Beam Angle: Driving, 20 Degree x8 Degree, Combo (Driving and Flood), Flood, 80 Degree x50 Degree
    • Power (watts): 224
    • Operating Voltage: 9-16V
    • Current (amps at 13.2V): 16
    • Polarity: Polarity Specific
    • Operating Temperature: -40C to 85C (-40F to 185F)
    • LED Emitter: Luxeon Z ES
    • Connector(s): Deutsch DT Input
    • Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink
    • Cooling: Passive, heatsink
    • Intrusion Ratings: IP68 Waterproof
