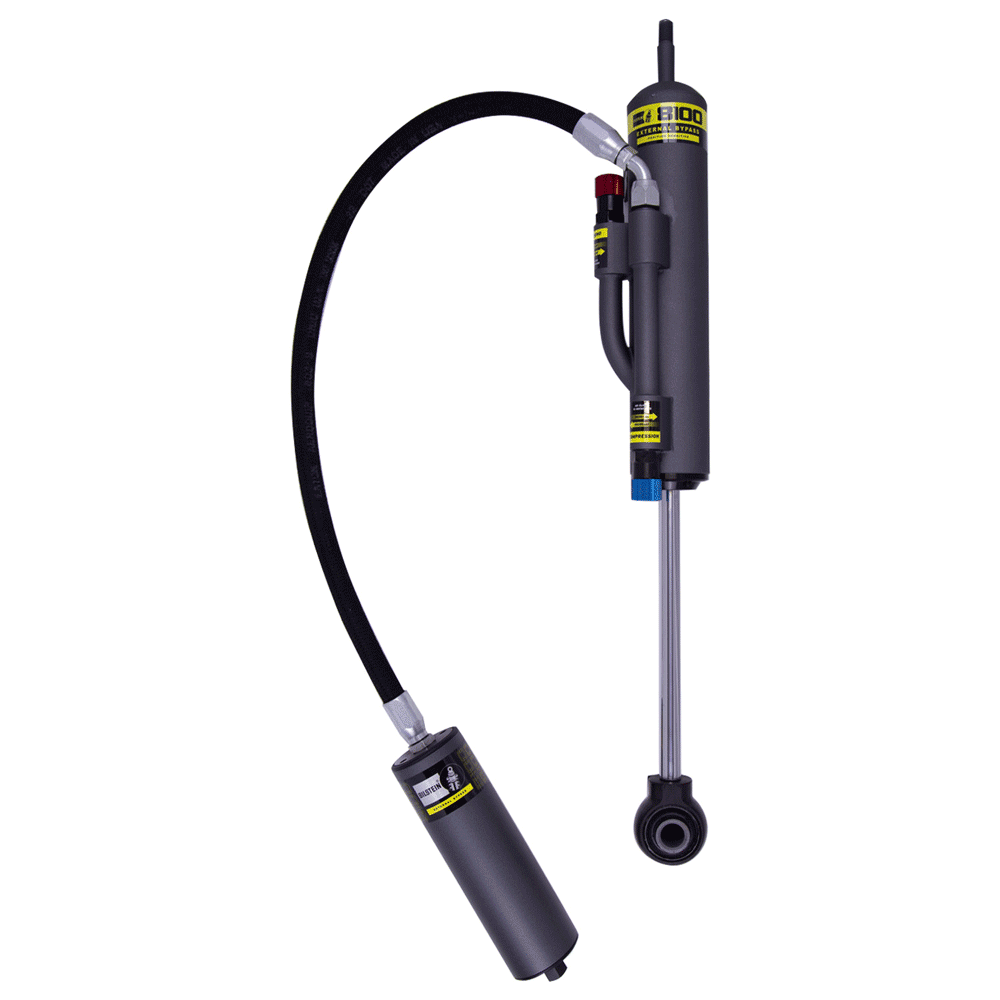

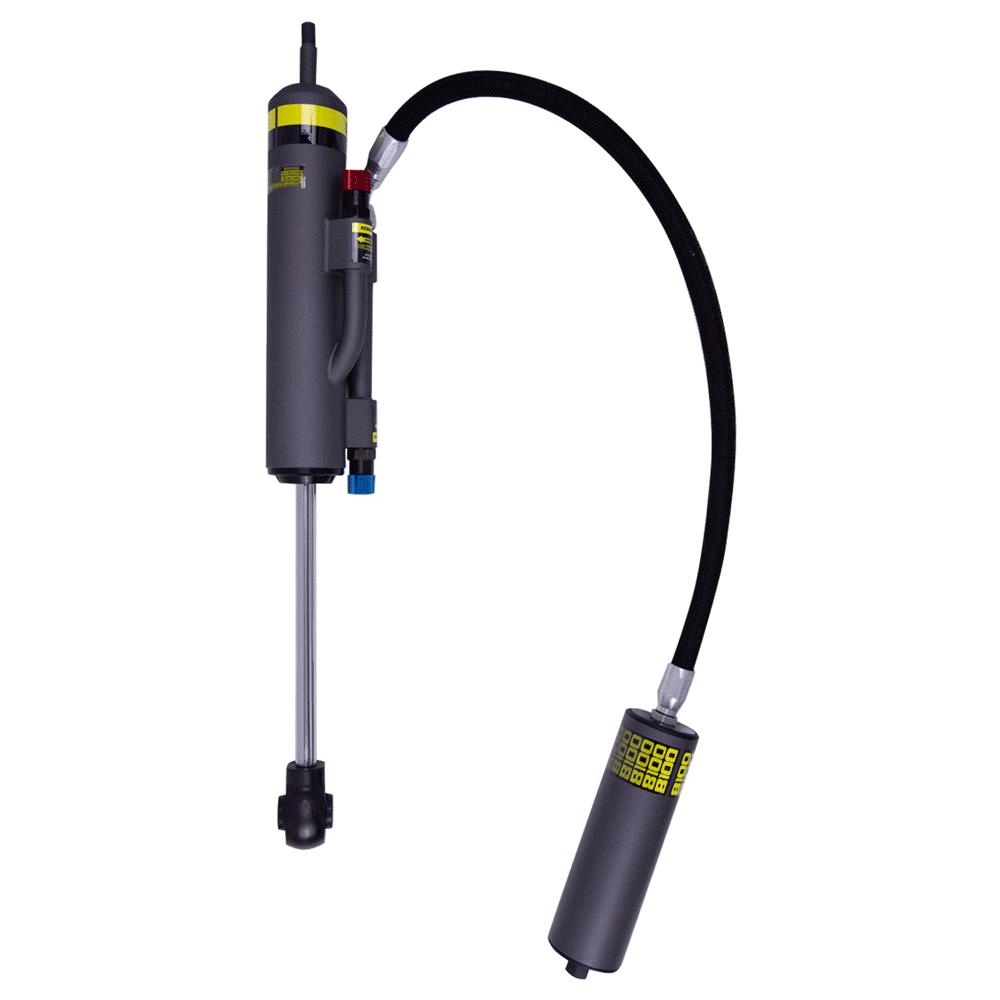

Bilstein - B8 8100 (Bypass) Right Rear Suspension Shock Absorber - Toyota 4Runner (2003-2024), Lexus GX460 (2010-2023), GX470 (2003-2009)

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

Specifications:

• Collapsed length (in): 24.09
• Extended length (in): 14.72
• Collapsed length (mm): 612.0
• Extended length (mm): 374.0
• Finish: EVO grey.

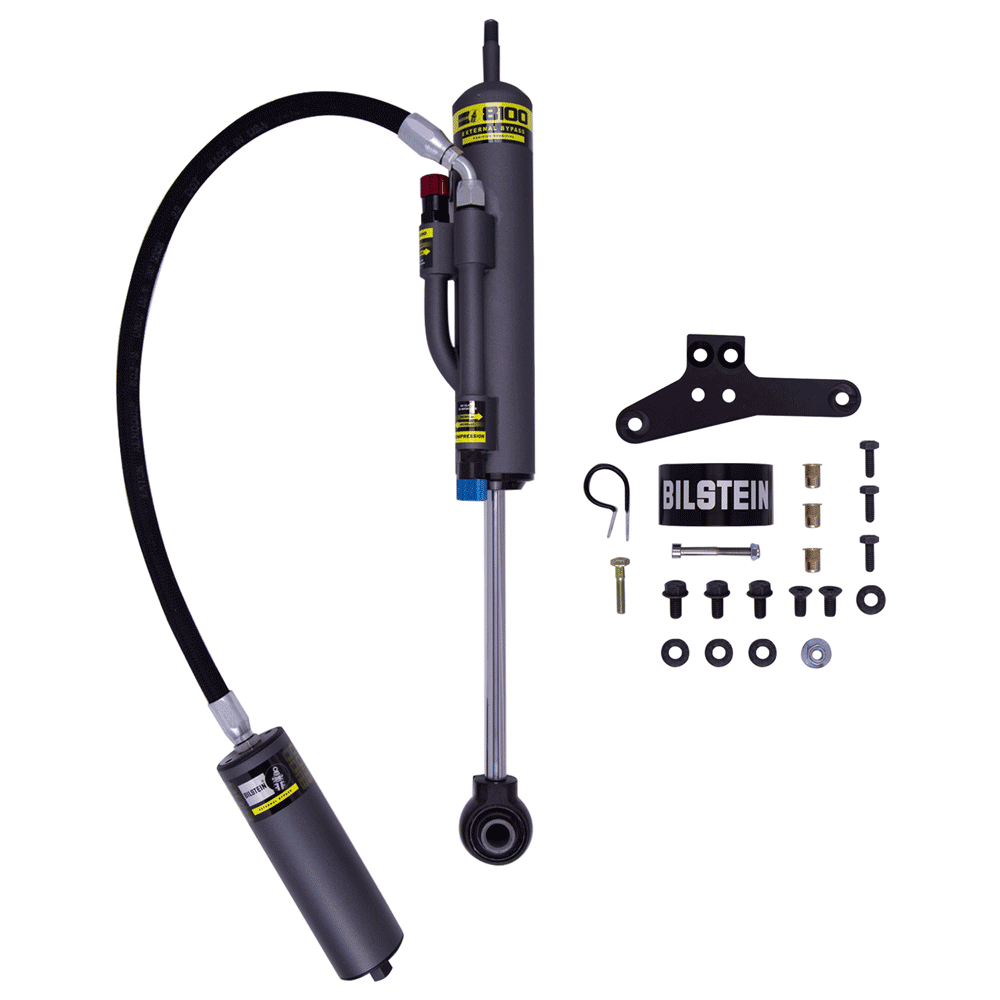

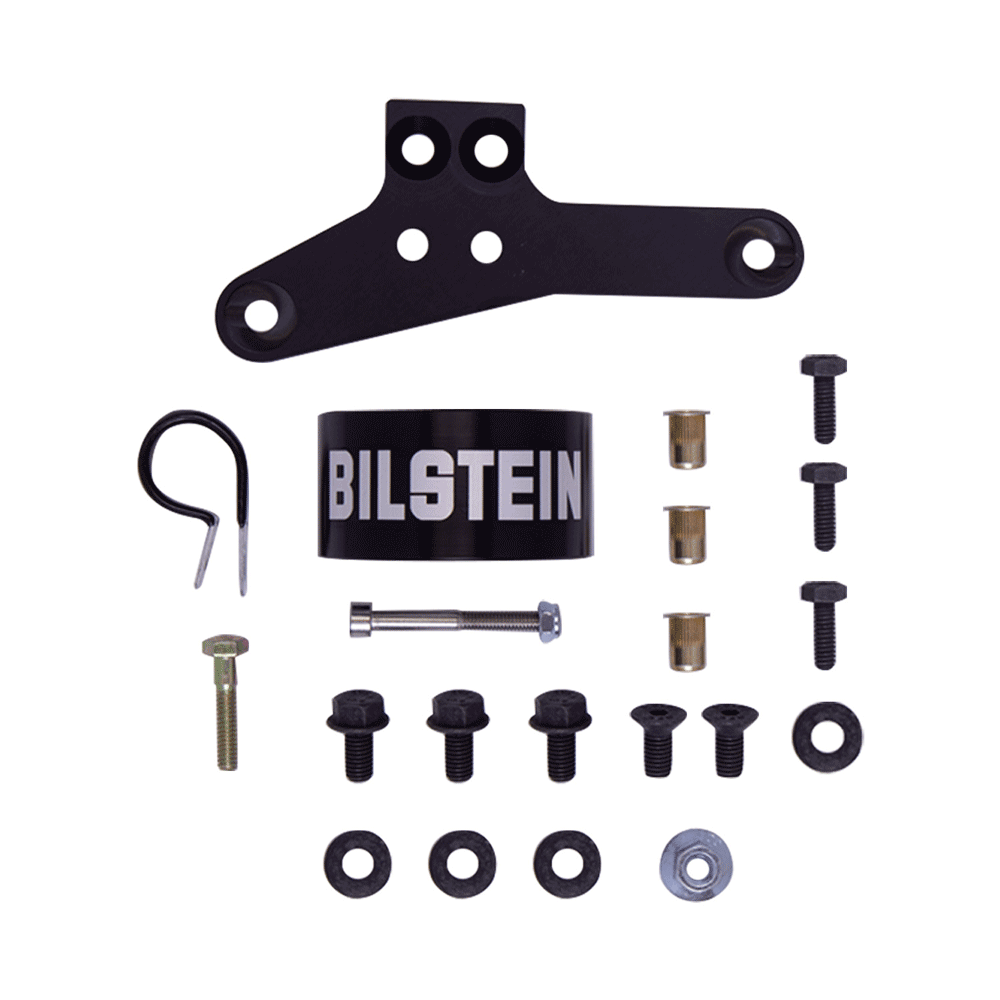

• Reservoir: Yes.
• Body design: Bypass body (Non-coilover).
• Body diameter (id): 60mm.
• Spring seat included: No.

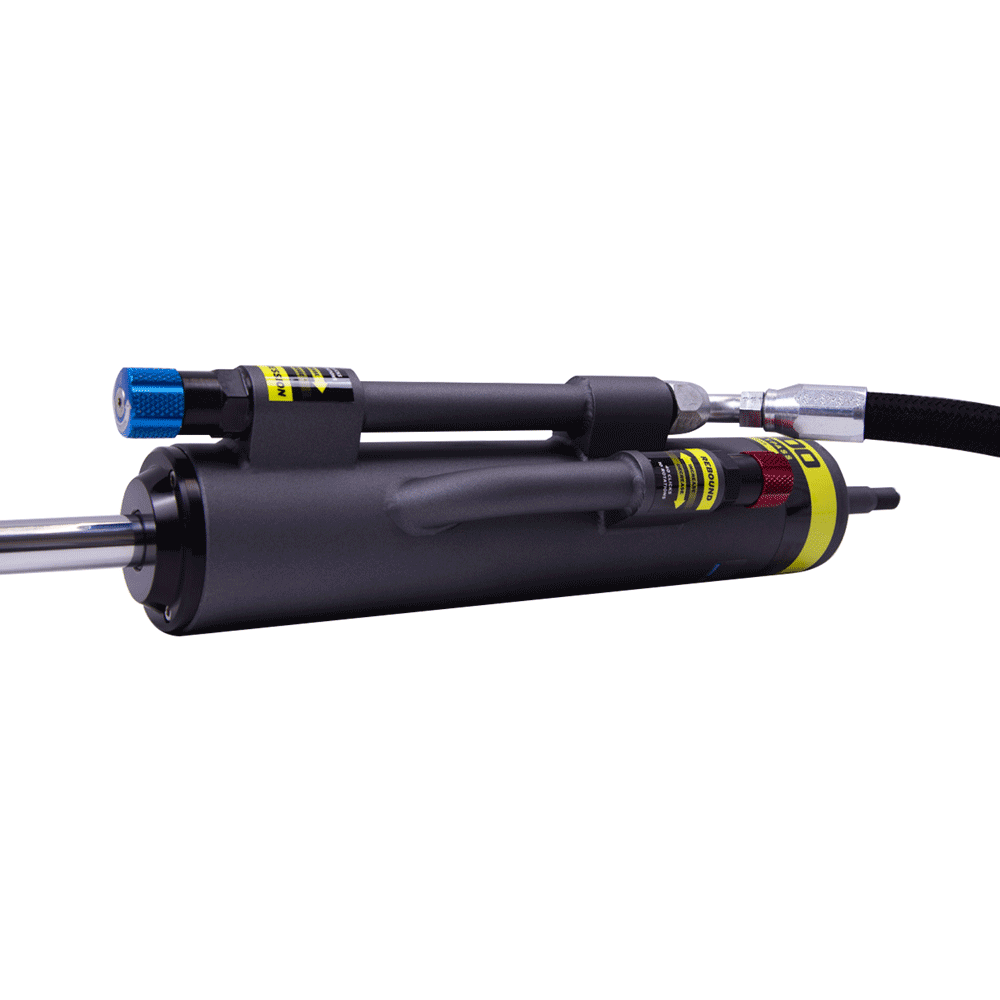

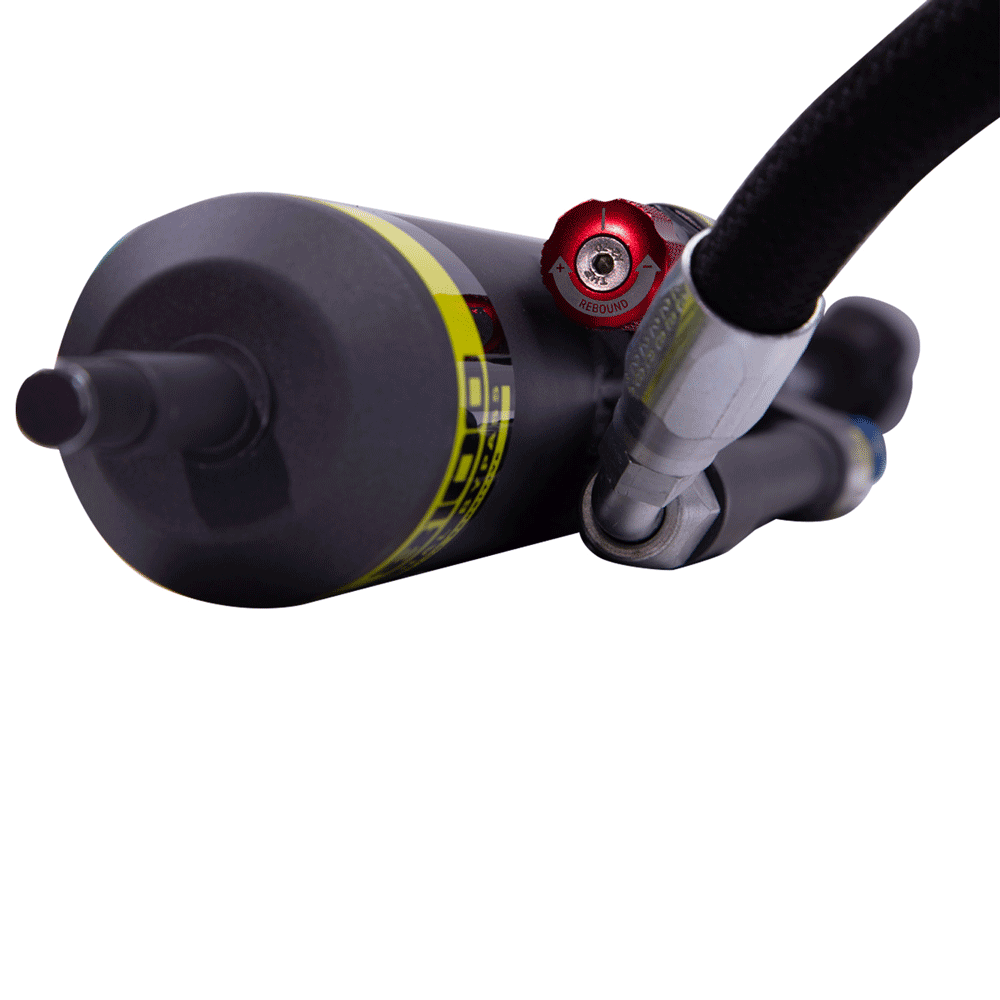

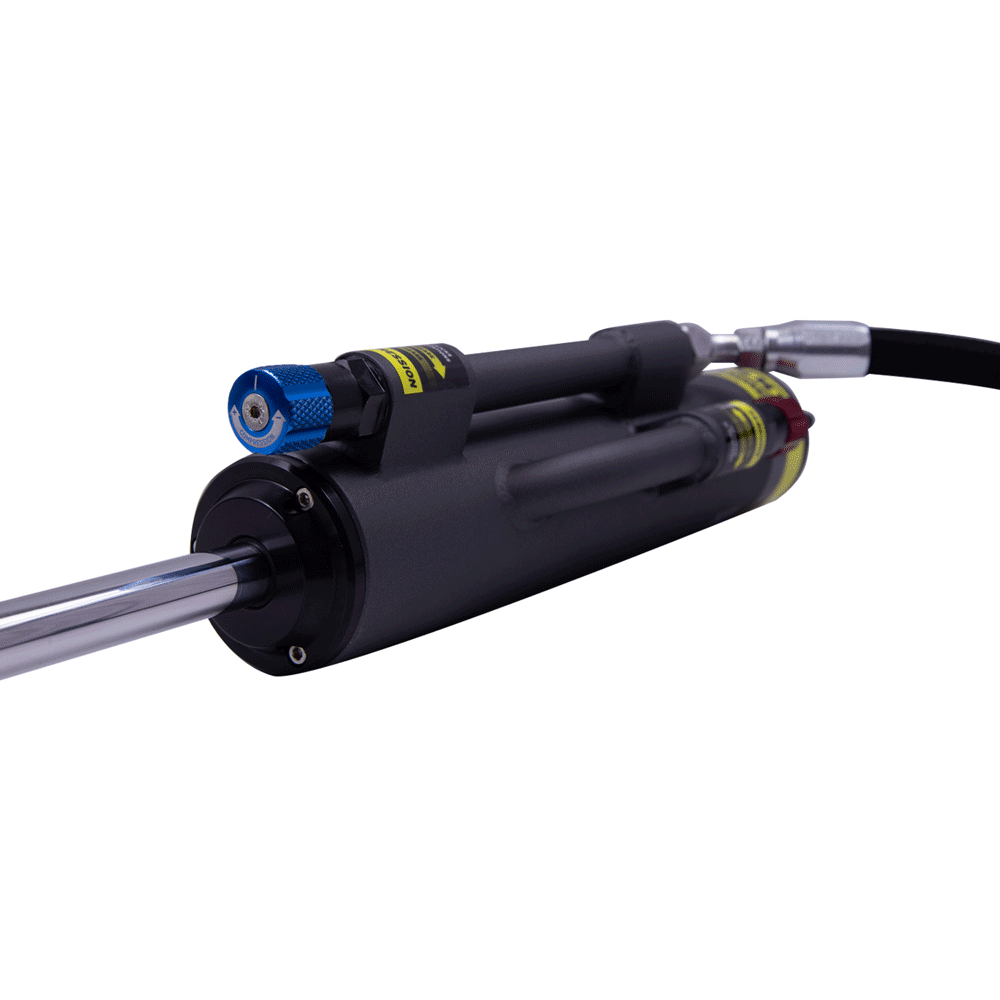

• Adjustable damping: Double adjustable compression and rebound with click adjuster knobs.
• Fits vehicles with 0-2" rear lift.
• Not sold as a pair.
