Description
B8 8112 (ZoneControl CR) - Front Right Corner Module

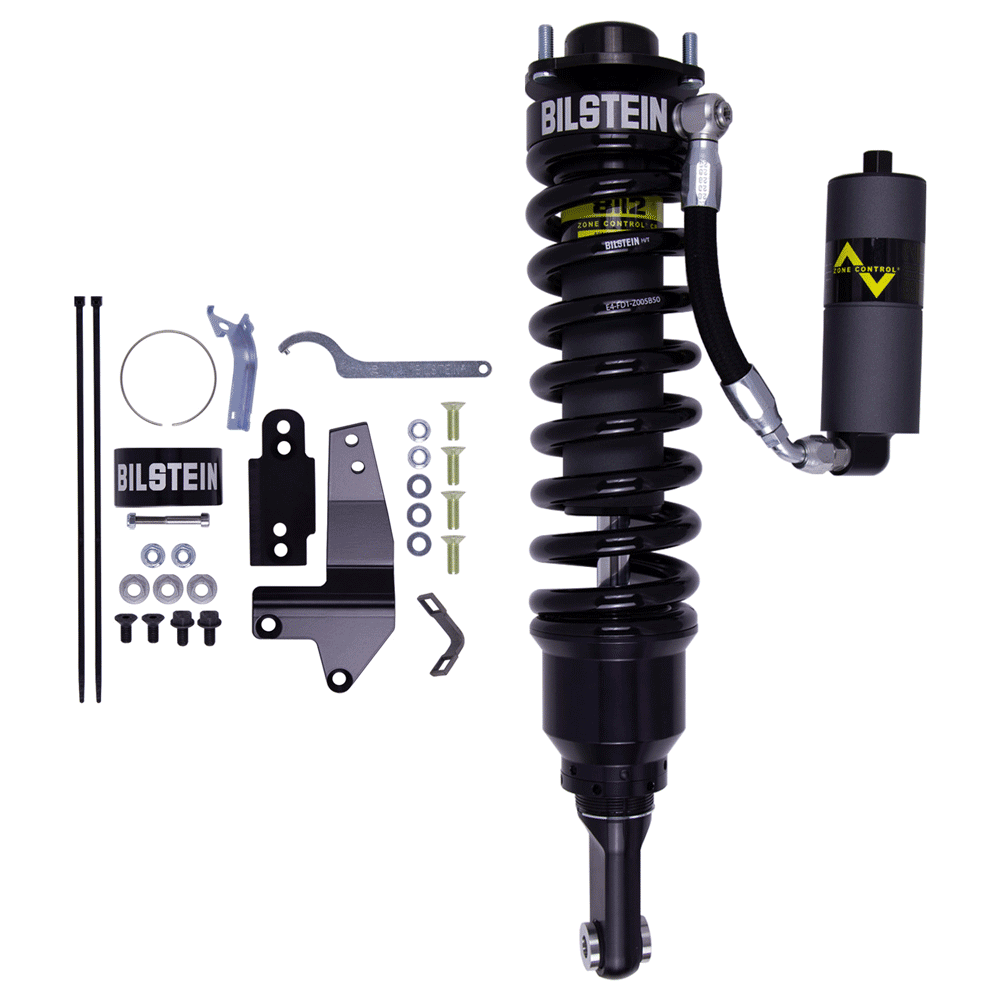

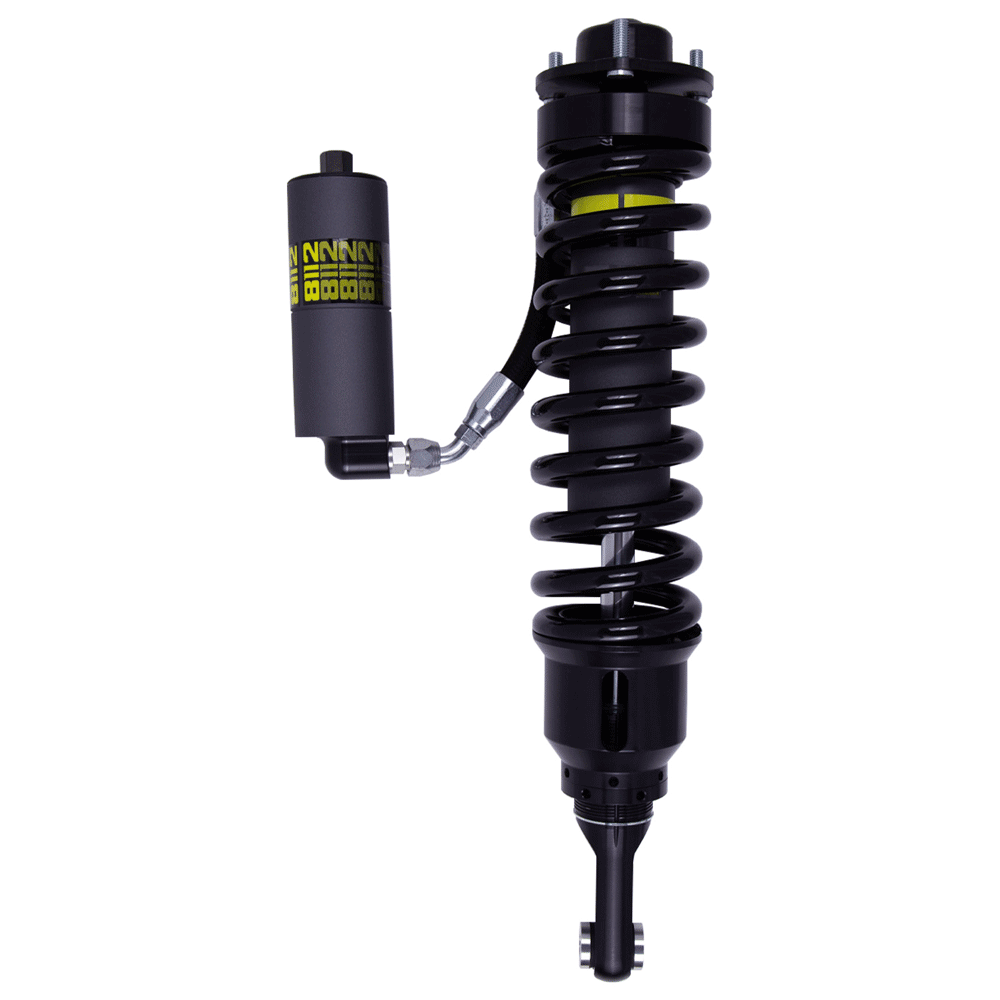

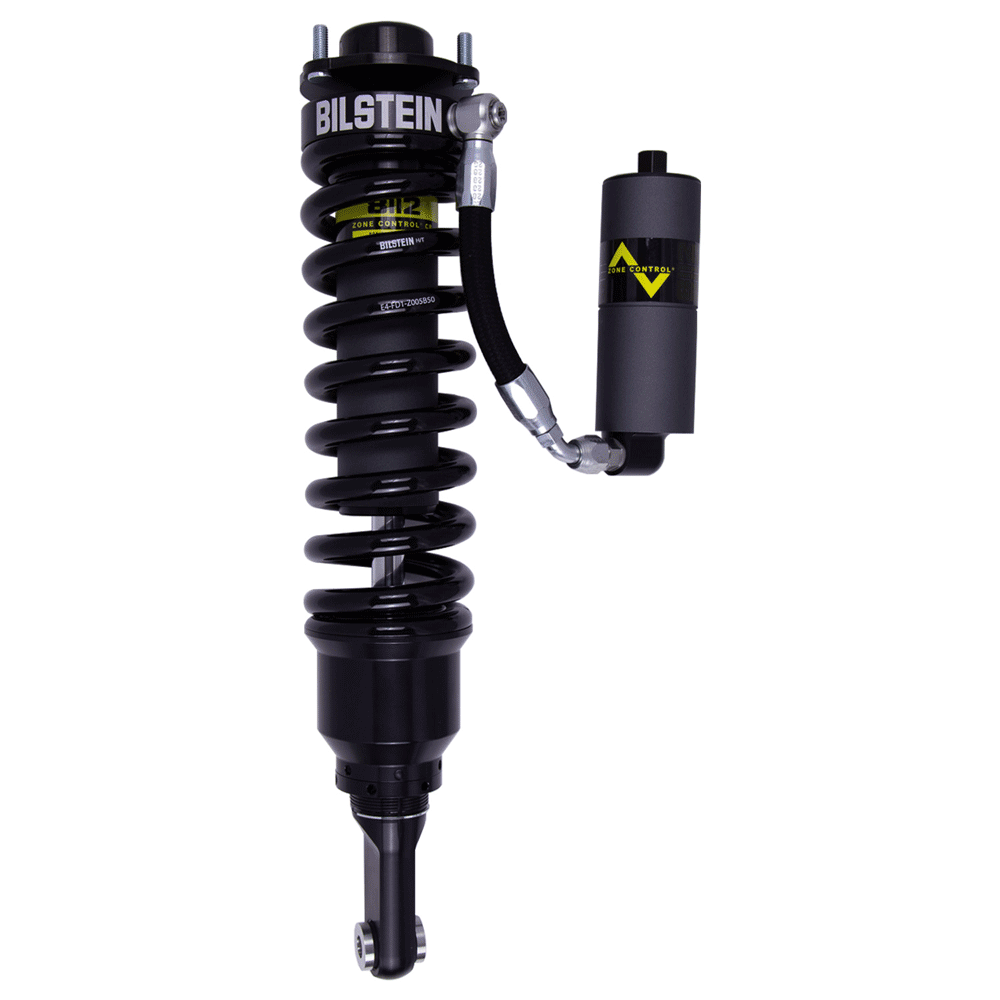

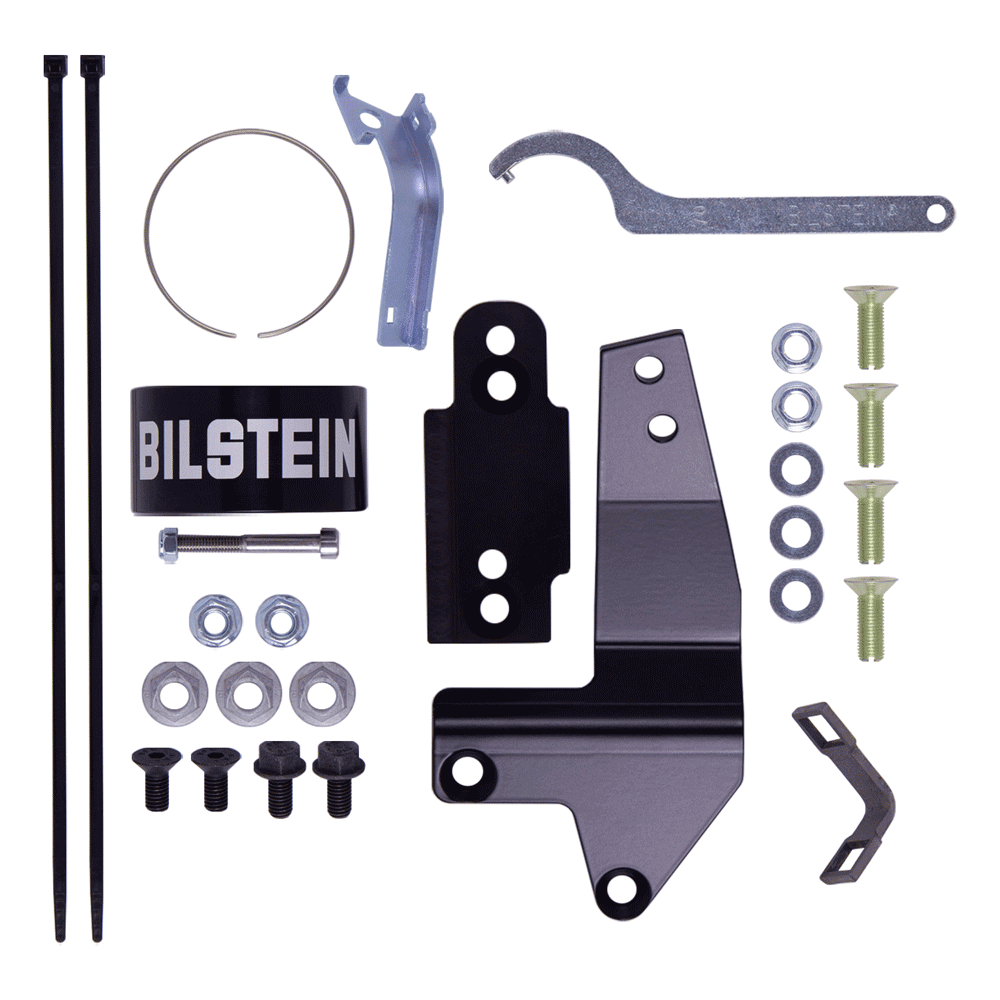

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
Specifications:
- Collapsed length (in): 17.99
- Extended length (in): 22.80
- Collapsed length (mm): 456.9
- Extended length (mm): 579.1
- Finish: Dampers: EVO Grey / Springs: Black.
- Reservoir:Yes.
- Body design: Smooth body (Coilover).
- Body diameter (id): 60mm.
- Body material: Steel.
- Spring seat included: Yes.
- Adjustable damping: Non-adjustable.
- Optional heavy load springs :53-291387, 53-332837.
- Provides 1.5-3" Front lift.
- Without Kinetic Dynamic Suspension System (KDSS).
- Not sold as a pair.
