Description
Lead time: 6-8 weeks.

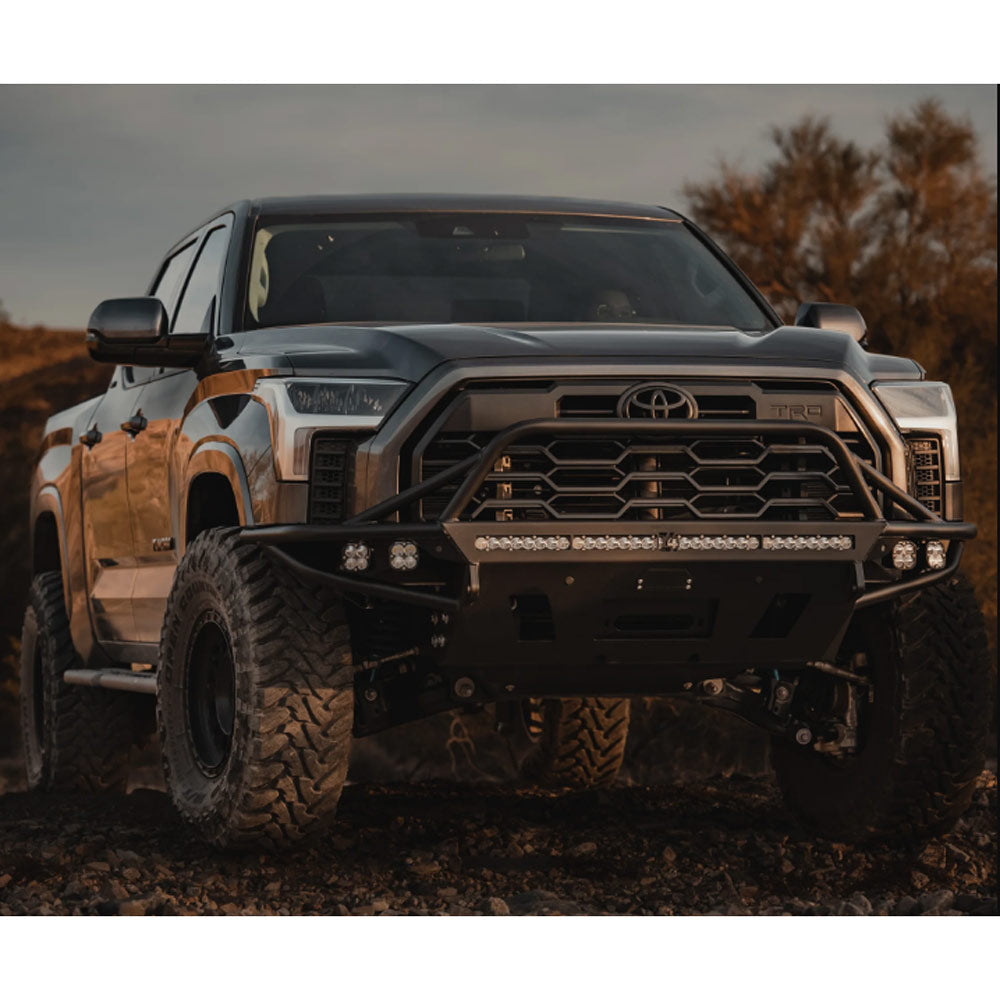

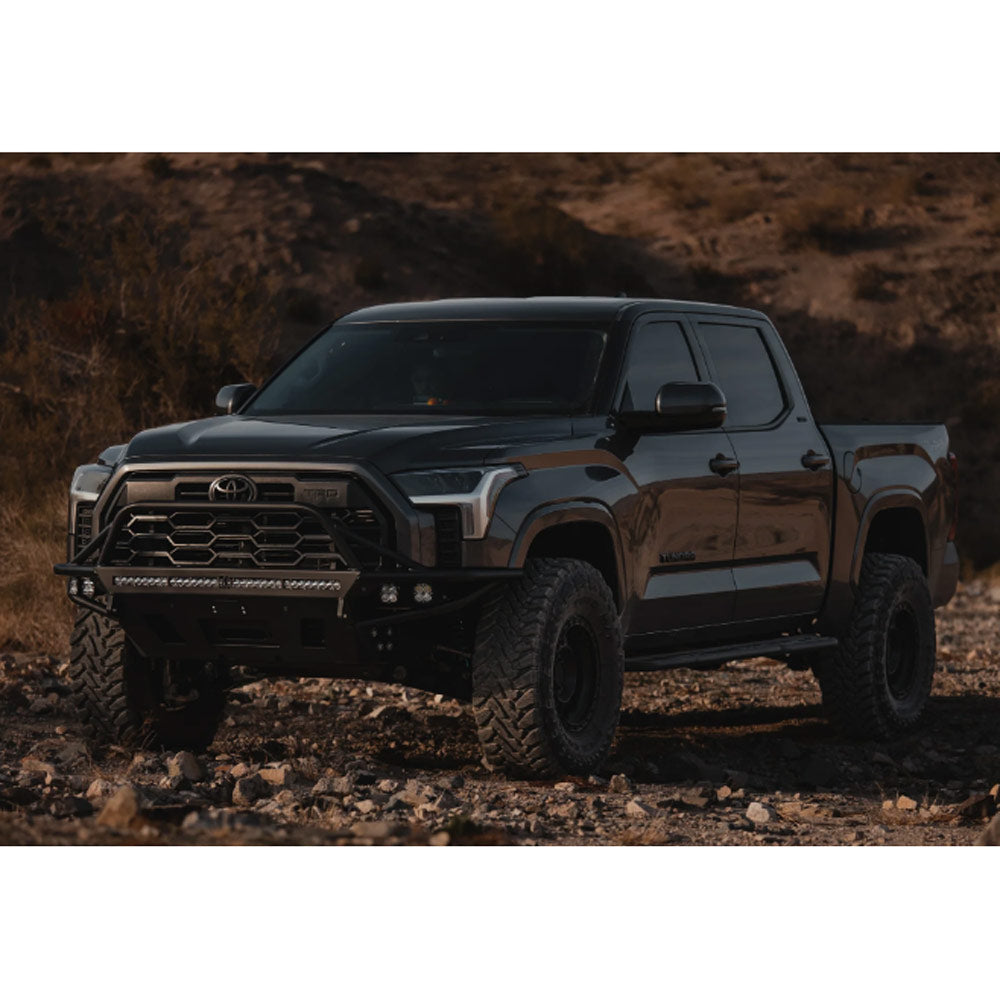

The Hybrid Series Front Bumper brings strength, clearance, and full sensor compatibility to your 3rd Gen Toyota Tundra. Engineered to retain the functionality of Toyota Safety Sense (TSS), parking sensors, and the front-mounted camera, this bumper integrates seamlessly with modern tech while adding rugged protection. All bull bar options are TSS-compatible; low and mid-height bars may appear in the camera view but won’t fully obstruct visibility. Some trucks may require TSS recalibration at a Toyota dealership after installation.
Lighting is fully integrated, with cutouts designed to fit a 40″ single-row light bar (Baja Designs S8 recommended) and provisions for two pairs of Baja Designs Squadron fog lights. LP9s fit all bull bar options except the low bar. OE fog lights cannot be reused.
The bumper ships with a steel skid plate to replace the factory plastic version and includes provisions to reattach the factory fender liners. Installation requires trimming the plastic bumper panels under the headlights and fender flare ends, with a detailed video provided for guidance. Correct orientation of the sensors and a level truck stance are recommended to ensure proper sensor performance.
Built from 3/16″ laser-cut P&O steel with 1/4″ mounting and winch plates, this bumper is reinforced with fully welded 3/4″ D-ring tabs and .120 wall HREW tubing. It fits most 8k-12k winches (synthetic rope with hawse fairlead recommended) but is not compatible with the Smitty XRC 12k. Unless you select the powder-coated option, the bumper must be painted or powder coated before installation to prevent rust.
Features:
- Comes with front skid plate that replaces the factory plastic skid plate.
- Bumper is made from 3/16″ laser cut P&O steel with 1/4″ thick mounting plates and 1/4″ thick winch plate.
- 3/4″ thick D-Ring tabs standard on every bumper and come fully welded front and back.
- Bull bar tubing is .120 wall 1 3/4″ and 1 1/2" diameter HREW tubing.
- Weighs 160lbs (no bar), 168lbs (low bullbar), 174lbs (mid height w/gussets).
- Unless you choose our powder coated option, this product will need to be painted or powder coated before installation to prevent rust.
- Retains full functionality of Toyota Safety Sense, park sensors and front mounted camera. All bull bar options are compatible with TSS. Low-Height bull bar and Mid-Height bull bars will be visible in the front mounted camera, however, they will not block full view of camera.
- TSS Recalibration at a Toyota dealership may be required after installation. We have had some customers report that their TSS system was requesting a recalibration after installing all of the sensors into the bumper. This sometimes happens when the sensors are moved from their original location on the vehicle to the new bumper.
- Parking sensors need to be oriented correctly per the install video to avoid malfunctioning. C4 fabrication recommends your truck sit level for sensors to be in an optimal position. If your truck has too much forward rake, sensors will be more sensitive and may go off more intermittently.
- Bumper will require cutting the plastic bumper panels under the headlight on each side and trimming the end of the fender flares to install. (installation video is very detailed and provides step by step instructions).
- Bumper has holes to reattach factory fender liners.
Shipping details:
- Free shipping (Lower 48) to a commercial address with forklift of loading dock or nearest freight dock.
- Residential shipping (Lower 48): $150.
- If shipments are leaving the country, C4 will calculate shipping charges, duties, brokerage fees, and taxes and send an invoice for them prior to shipping the items. If you or your customer prefer to use your own broker and to pay these fees on delivery, you will need to send us contact information for the broker that will be used. If you choose to use your own broker we will only charge you for the actual shipping charges on our end.
