Description
Features:
- Modern TIR optics for the highest intensity on the market.

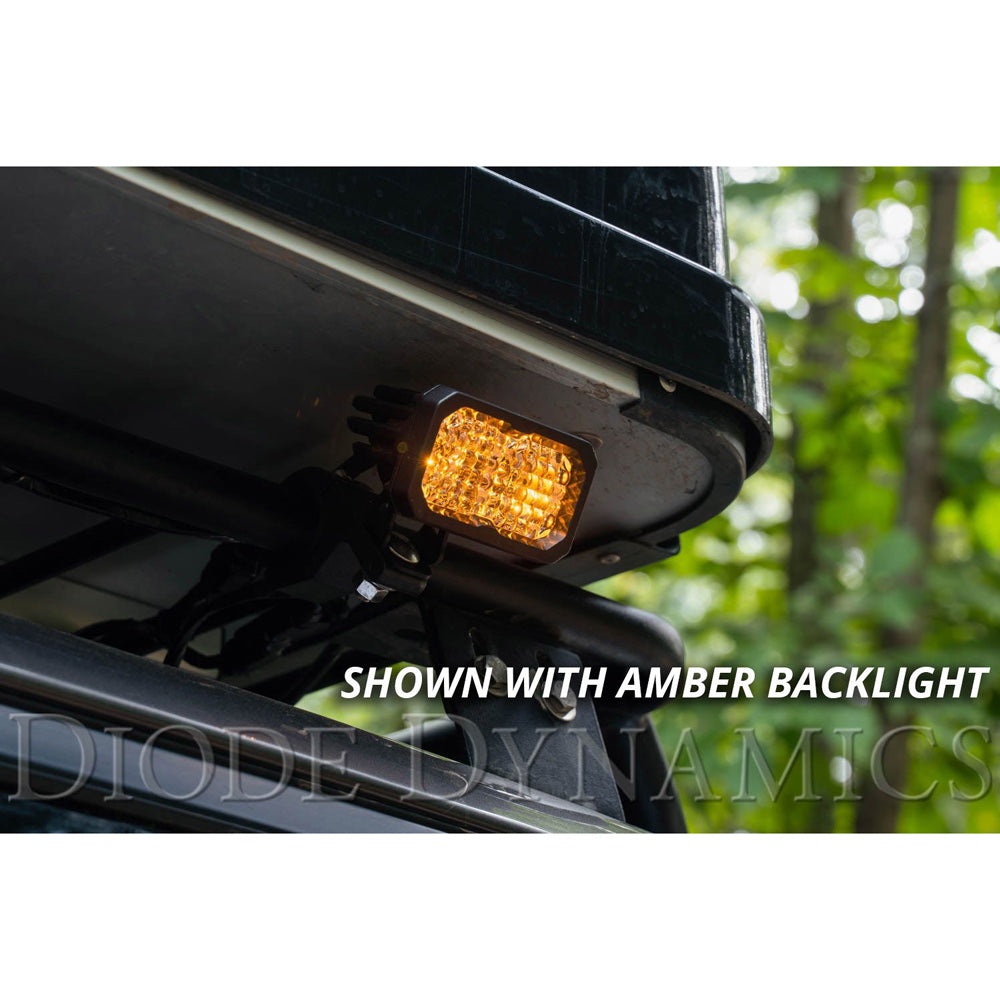

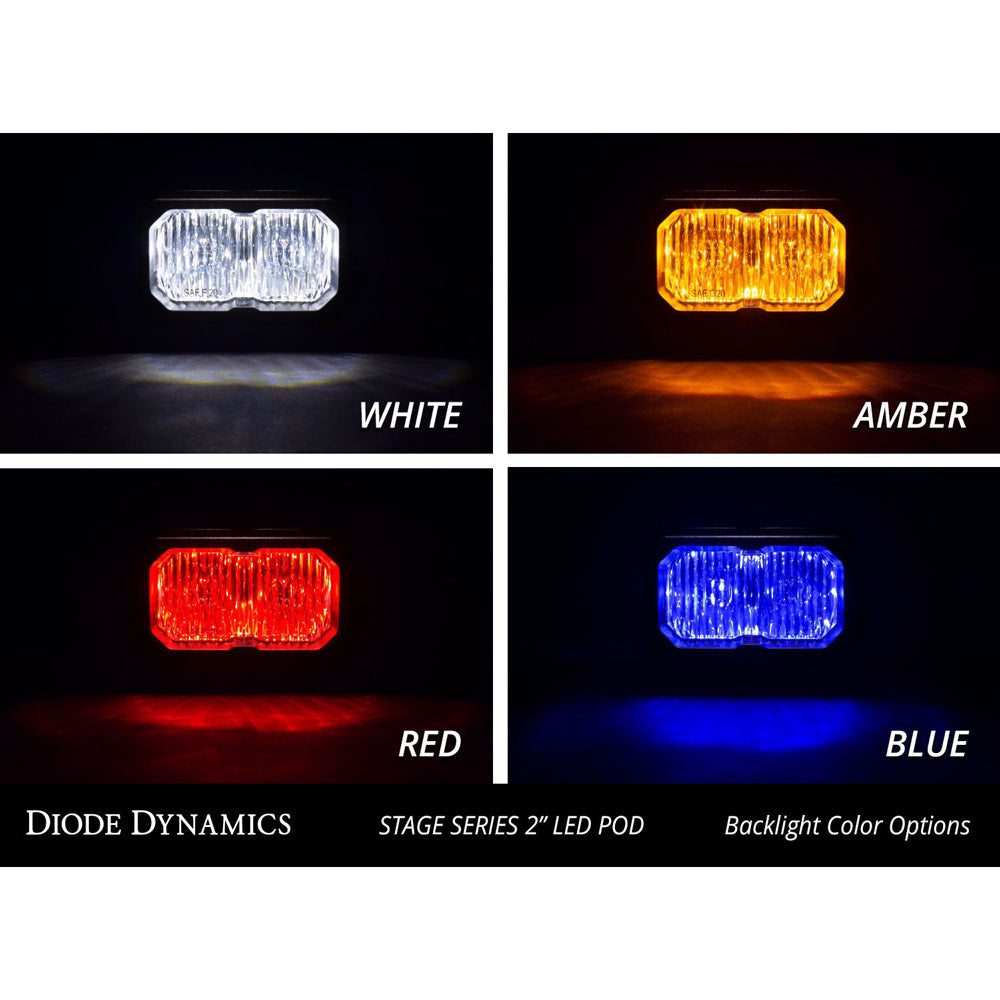

- Backlighting is available in white, amber, red, and blue.
- Durable powder-coated aluminum construction.
- Integrated Deutsch-style connector
- Pin-fin heatsink design.
- Designed, torture tested and assembled in the USA.

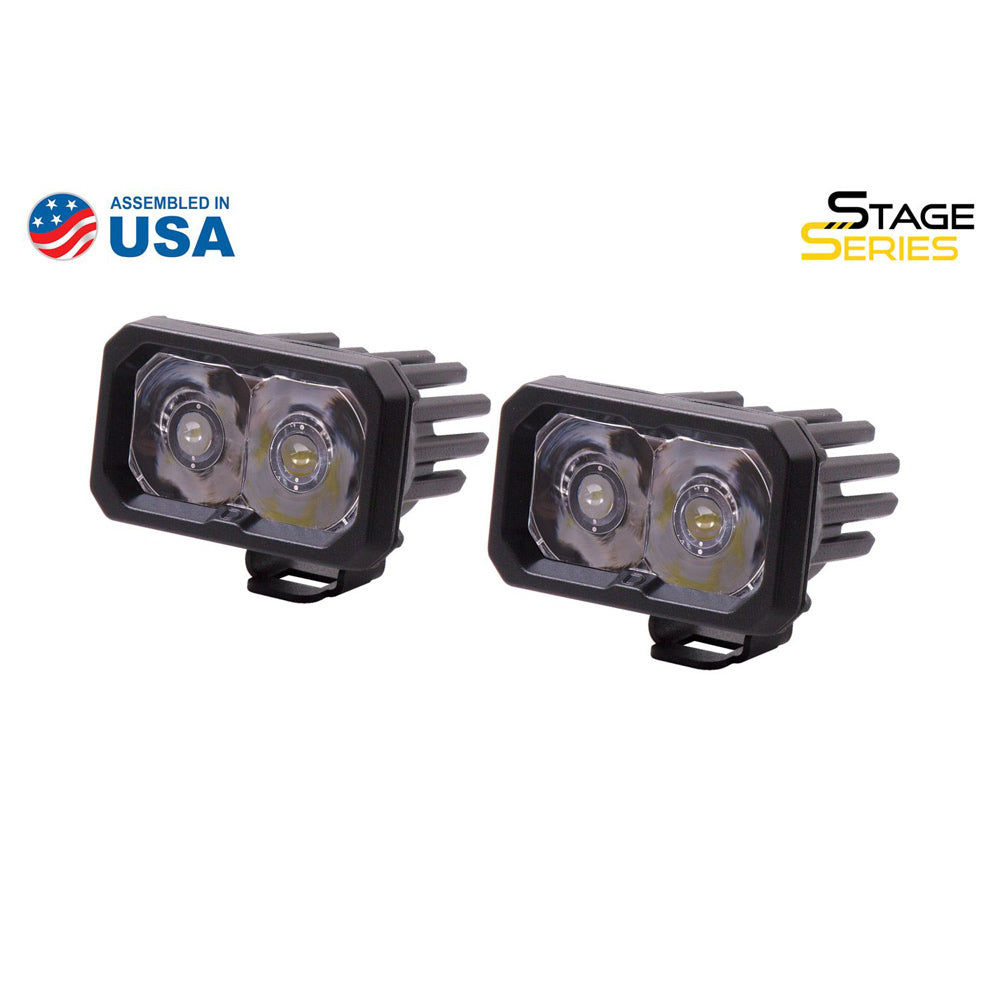

- Two (2) Stage Series 2" LED pods.
- Two (2) Deutsch-style wire pigtails.
- Two (2) Mounting brackets and hardware.
Overview:
Introducing the Stage Series 2" LED Pod! Featuring higher output intensity than any other 2” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package.
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the Stage Series 2" collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.
From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series 2" serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the Stage Series 2" is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

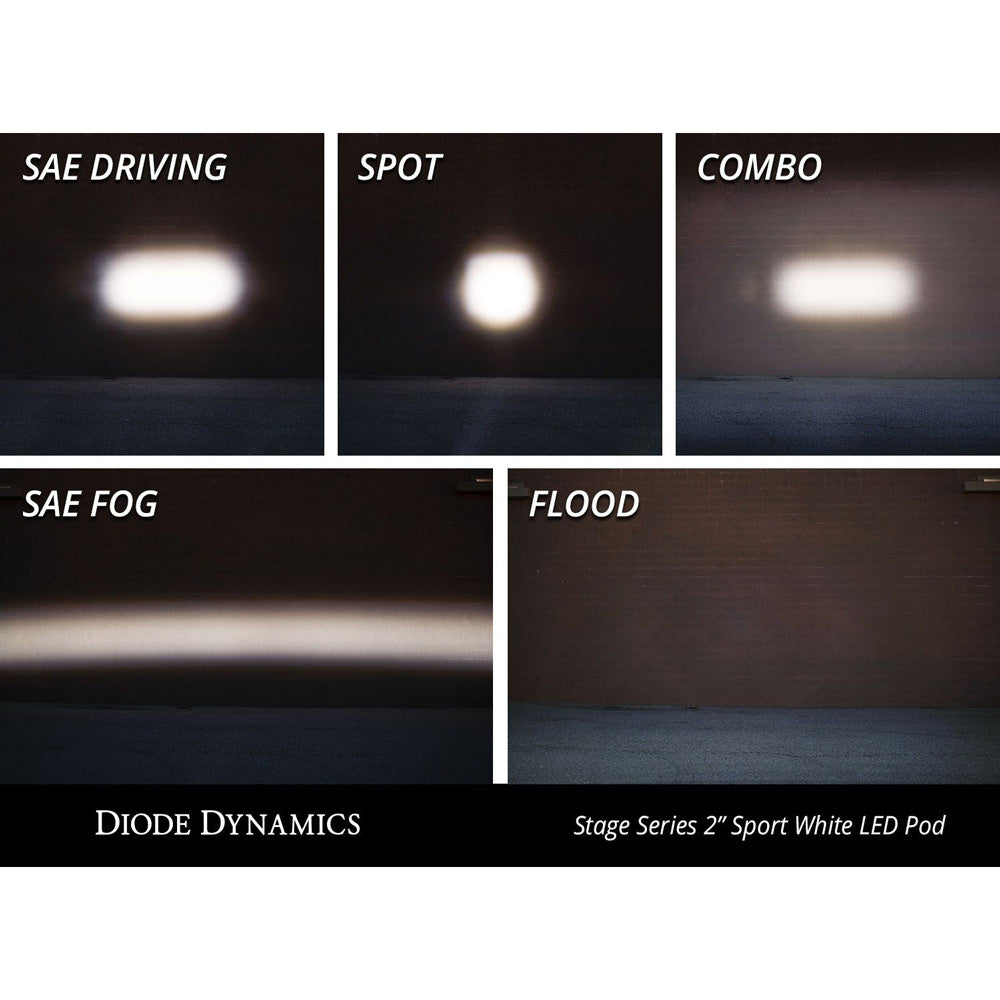

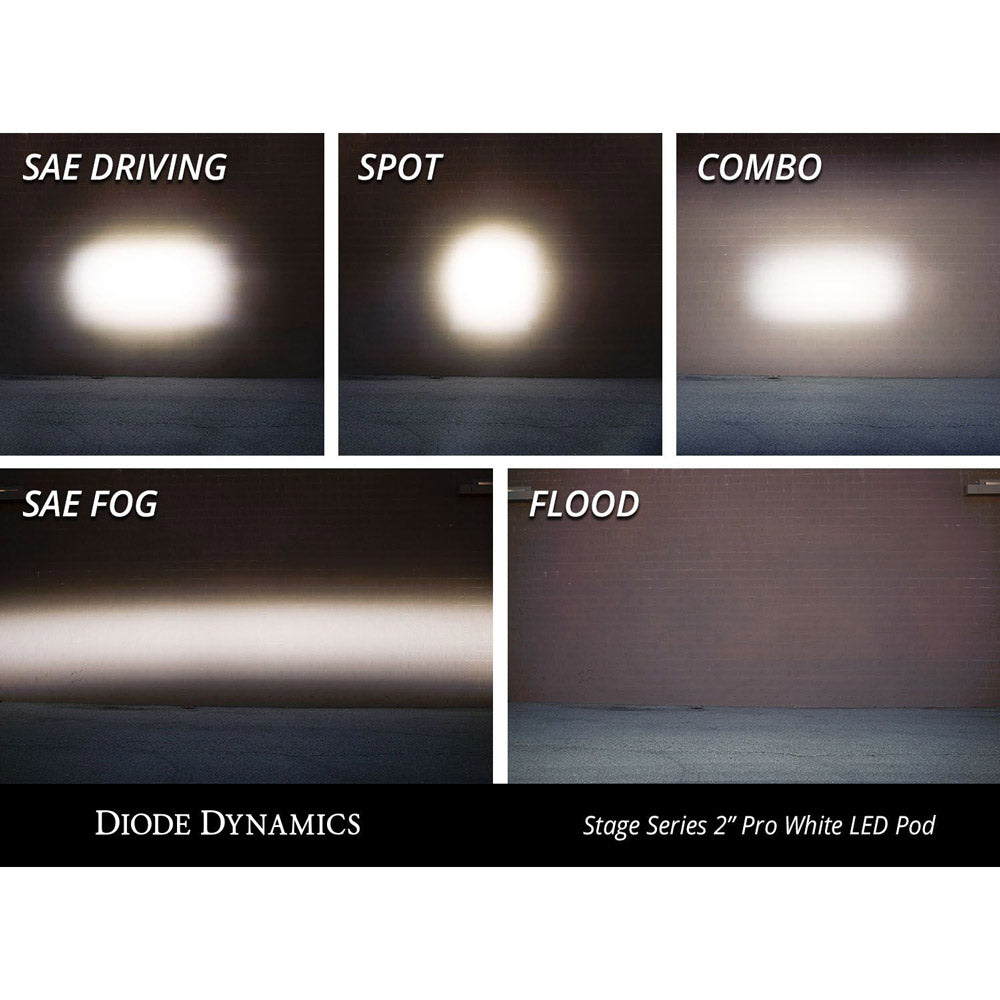

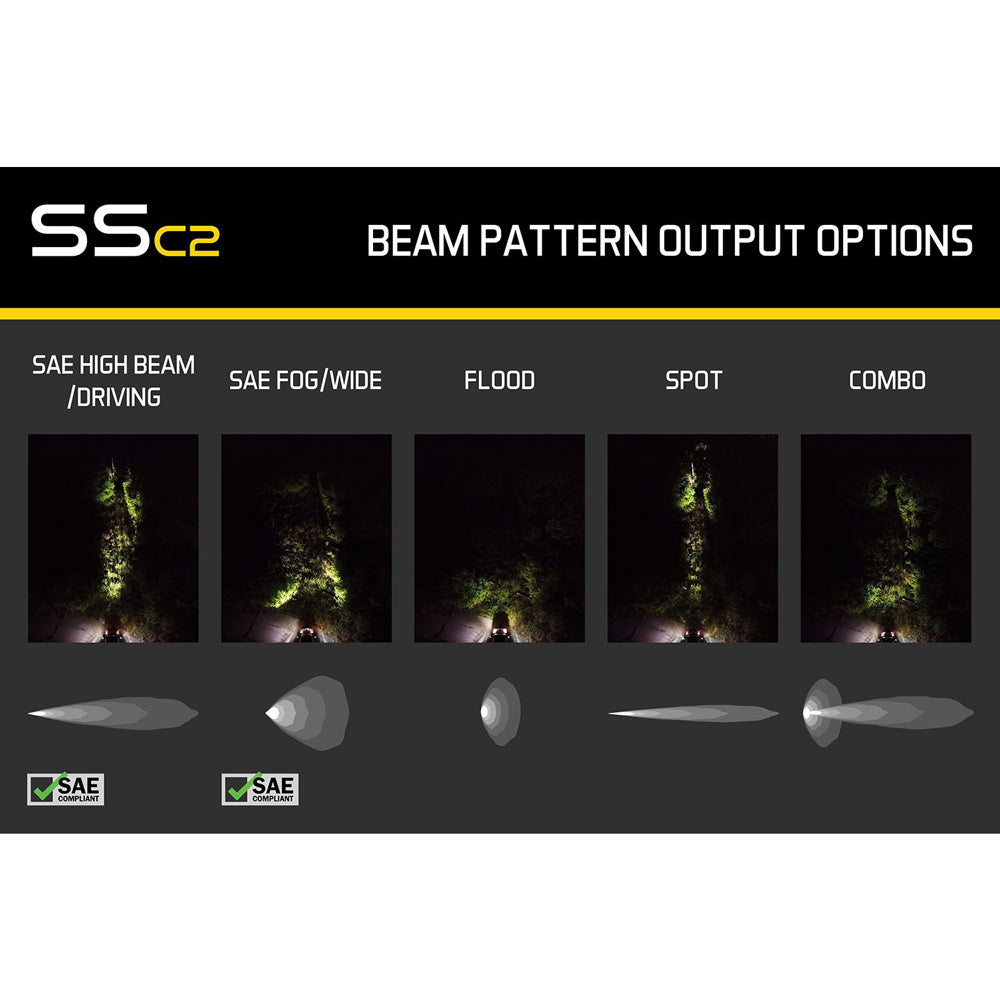

Functional patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!
SAE driving is designed to supplement your high beams, but it’s great for general illumination as well. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.
SAE fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.
Flood pattern was designed to provide uniform, even illumination with a full 60x60 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout. It is perfect to use as a backup light, for lighting up anything at low speeds, or for trailers and worksites.
Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 40x20 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other.

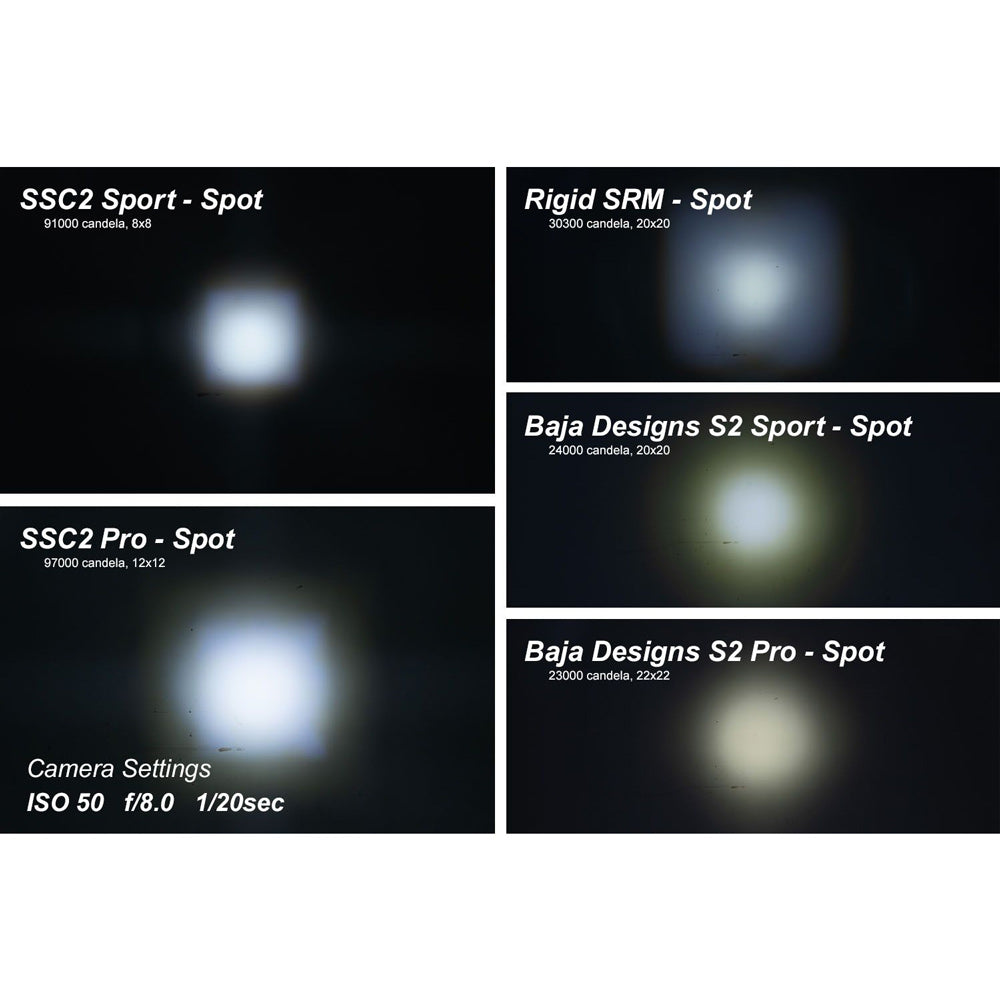

Spot is an unmodified pattern, shining light directly from the TIR optic. The result is a highly focused 6-degree beam of light, perfect for directing light far into the distance.
Heavy duty dual output 3-way 4-pin wiring harness: This harness has been designed to be used with Stage Series pods with backlight functionality. The harness connects directly to your vehicle's battery and features a three-way switch to toggle between backlight, off, and main beam. (Additional $60).
