Description
Features:

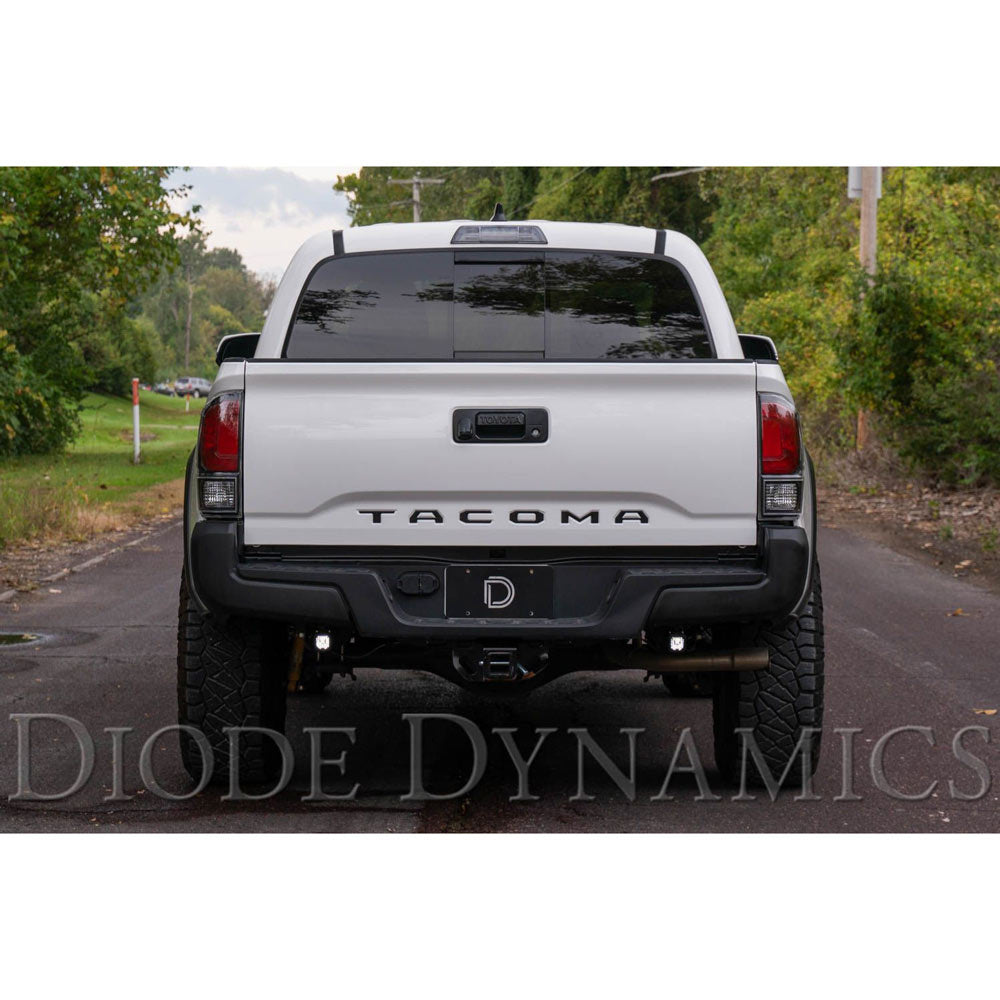

- Allows you to mount SSC1 or SSC2 pods underneath the 2016-2023 Toyota Tacoma rear bumper.
- Plug-and-play wiring harness, with OEM connectors and toggle switch override.
- Provides high-power reverse light, and red accent light.
- Designed and assembled in the USA.

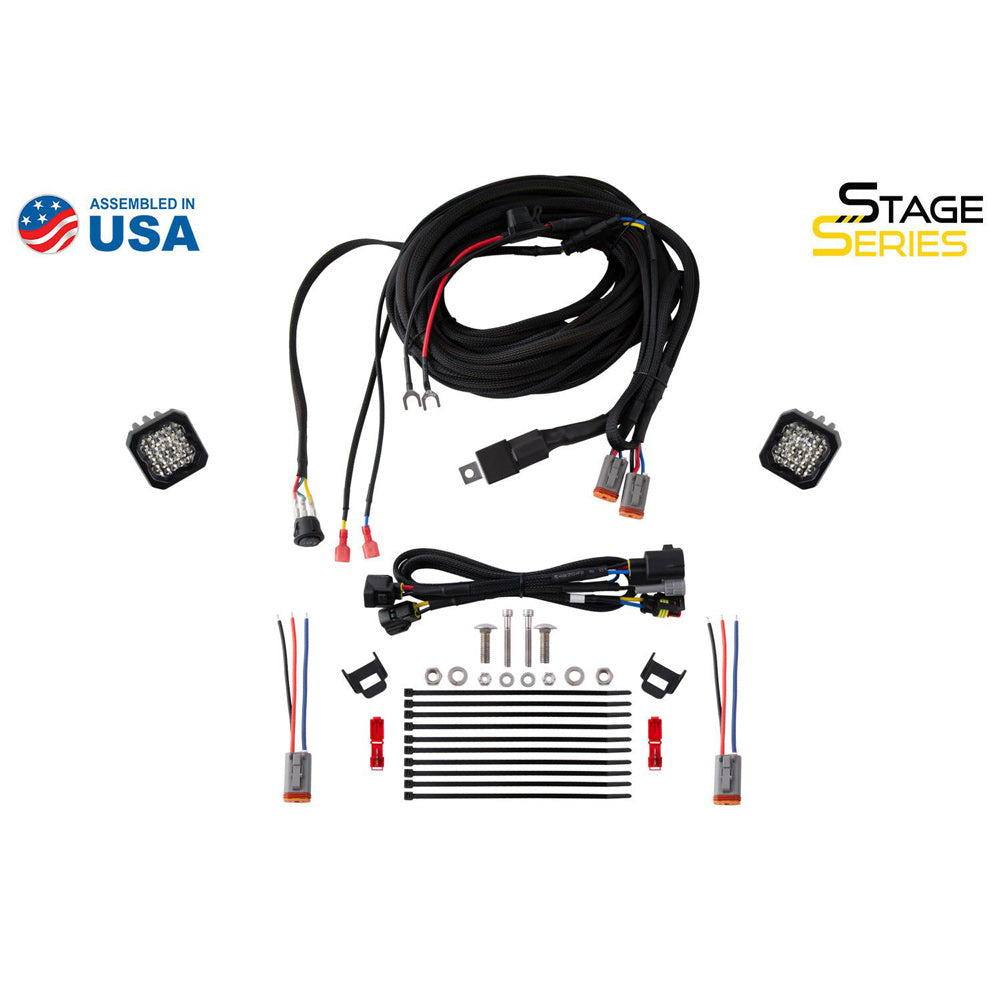

In the Box:
- Two (2) SSC1 or SSC2 Standard LED pods.
- One (1) Universal reverse light wiring harness.
- One (1) Adapter harness for 2016-2021 Toyota Tacoma.
- Two (2) Mounting brackets.
- Ten (10) Zip ties.
- Two (2) T-taps.
- Mounting hardware.
- Quantity: Two (2).
- Fitment
- Make & model: Toyota Tacoma.
- Years: 2016-2023.
Specifications:
- Color Temp (CCT): 6000K
-
Power (watts): SSC1 Sport: 12.8, SSC1 Pro: 19, SSC2 Sport: 7.7, SSC2 Pro: 25.6
-
Operating Voltage: 9-16V
-
Current (amps @ 12.8V): SSC1 Sport: 1, SSC1 Pro: 1.5, SSC2 Sport: 0.6, SSC2 Pro: 2
-
Polarity: Polarity Specific
-
Operating Temperature: -40C to 85C (-40F to 185F)
-
LED Emitter: Luxeon Z ES, Cree XP-L HI
-
Connector(s): Deutsch DT Input
-
Driver Features: Constant Current
-
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
-
Cooling: Passive, Pin-Fin heatsink
-
Compliance Ratings: SAE J575 Durability Test
-
Intrusion Ratings: IP67 Weatherproof
-
Unit Weight (lbs.): SSC1: 3.25 SSC2: 3.5
- Product Weight (lbs.): SSC1: 3.75 SSC2: 4.15
