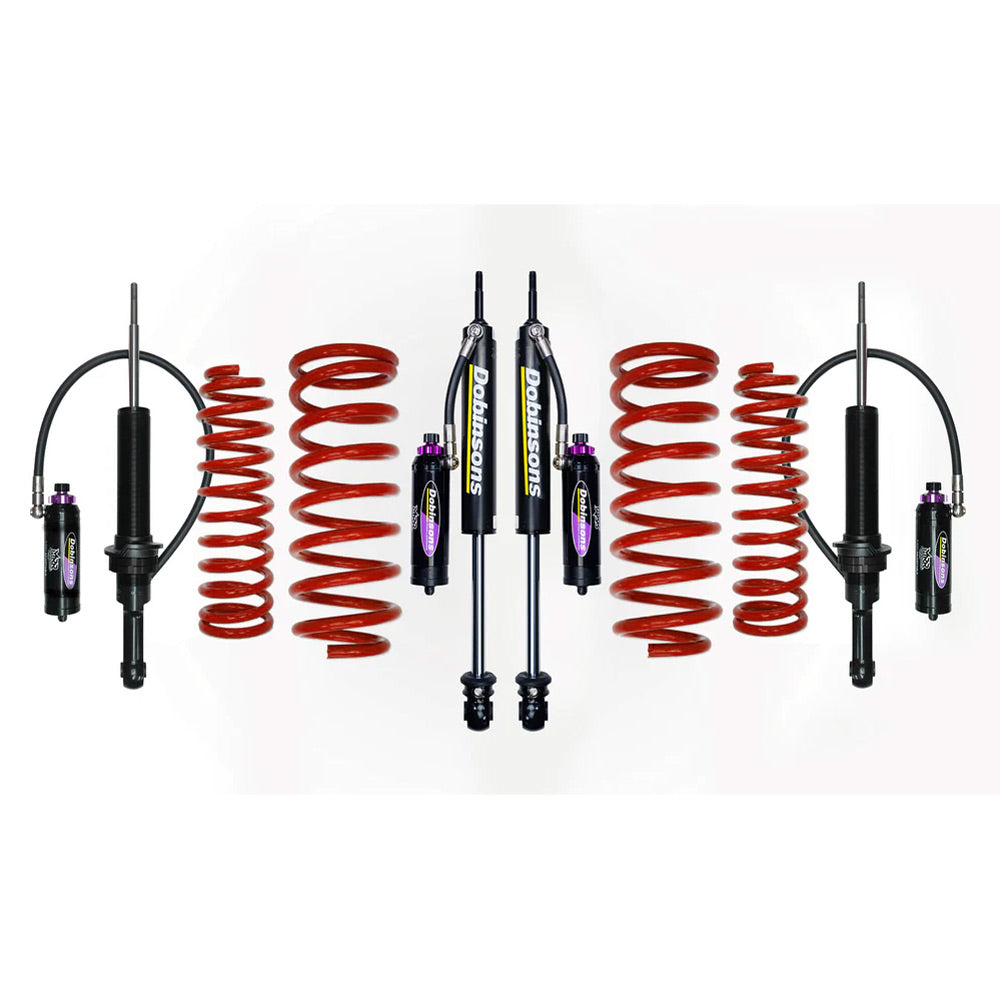

Dobinsons - 3" to 4" MRR 3-Way Adjustable Lift Kit - Toyota Sequoia (2023+)
Dobinsons - 3" to 4" MRR 3-Way Adjustable Lift Kit - Toyota Sequoia (2023+)
Dobinsons - 3" to 4" MRR 3-Way Adjustable Lift Kit - Toyota Sequoia (2023+)
Roll over image to zoom in Click on image to zoom
Dobinsons - 3" to 4" MRR 3-Way Adjustable Lift Kit - Toyota Sequoia (2023+)Dobinsons - 3" to 4" MRR 3-Way Adjustable Lift Kit - Toyota Sequoia (2023+)Dobinsons - 3" to 4" MRR 3-Way Adjustable Lift Kit - Toyota Sequoia (2023+)

Dobinsons - 3" to 4" MRR 3-Way Adjustable Lift Kit - Toyota Sequoia (2023+)

Dobinsons Spring & Suspension
Price:
$305.00

Shipping calculated at checkout

Stock:
May have applicable lead time / Ships from Manufacturer

Description

Lead time: 12 weeks (estimate).

TRD PRO will yield 1" less lift in front and 1" less in rear

Front coil spring specs:

  • C59-834 (75mm - 3") 0-110lb Load.
  • C59-836 (75mm - 3") 110-220lb Load.
  • C59-838 (100mm - 4") 0-110lb Load.
  • C59-840 (100mm - 4") 110-220lb Load.
Rear coil spring specs:
  • C59-817V (Stock Height) Stock Load.
  • C59-819V (25mm - 1") Stock Load.
  • C59-821V (50mm - 2") Stock Load / (25mm - 1") 220-440lb Load.
  • C59-823V (50mm - 2") 220-440lb Load / (25mm - 1") 600-800lb Load.
  • C59-851V (75mm - 3") Stock Load.
  • C59-853V (75mm - 3") 220-440lb Load.

Features:

  • 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
  • 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
  • 20 Stage Low Speed Compression - For creepy crawling and cornering.
  • 15 Stage Rebound - Control your coils, prevent bucking.
  • 60mm CNC Machined High Flow Billet Aluminium Race Piston.
  • 2.6" Precision Honed Shock Body.
  • 3mm Thick Heavy Duty DOM Seamless 66mm O.D. shock Body Precision Honed to +/- 0.04mm.
  • Upgraded 3 Stage FKM-HNBR Sealing System.
  • TSUGAMITM CNC machined components for precise tolerances.
  • ParkerTM Braided High Pressure Hoses.
  • 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA.
  • T6 6061 Height Adjustable Spring Seat.
  • Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance.
  • 60mm Full 6063 aluminum remote reservoir.
  • Lightweight CNC Machined Low Friction floating piston.
  • High Quality O.E.M. Grade Natural Rubber Bushings.
  • Single Piece Lower Leg.
  • EDP Surface Protection.
  • Direct Bolt-On Design.
  • CNC TIG Precision Welded Body End Mounts.
  • Fully Rebuildable Design.
  • If doing a 2.5" lift or higher in the front, a diff-drop kit or longer TRD CV-axles are REQUIRED, faliure to complete these requirements could cause OE CV-axle faliure.
  • TRD axle shafts: PT362-3432B and PT362-3431B
  • Coil seat for MRA59-A446 should be set at 175mm (6.87") from the strut bushing eye to top of coil isolator.

    All Colorado local pick-up orders for the MRR 3-Way Adjustable Lift Kit is subject to a $165 transport fee.
