Description
Lead time: 12 weeks (estimate).
Features:

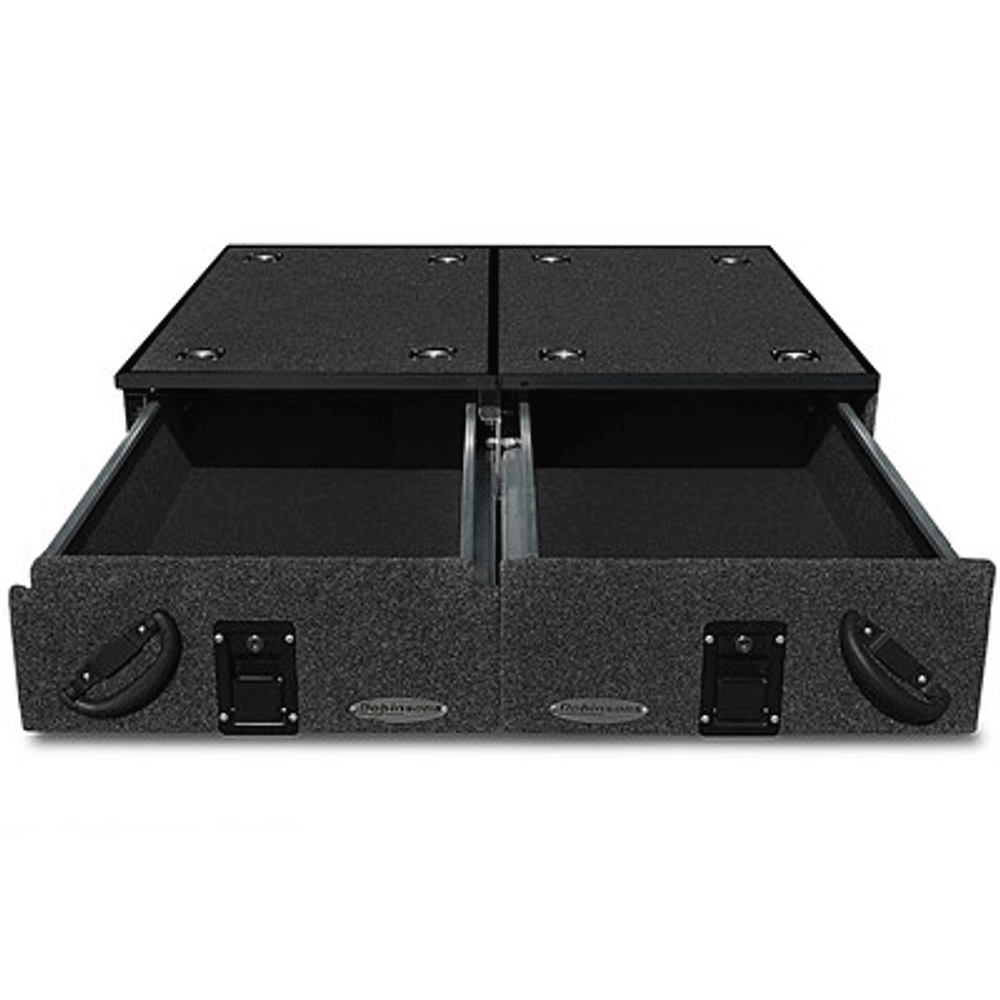

- Drawer dimensions:
- External: 900mm (l) x 1000mm (w) x 255mm (h) (285mm from mounting ribs).
- Internal: 840mm(l) x 435mm (w) x 195mm (h).
- Between tie downs 560mm (l) x 310mm (w).
- 1.6mm zinc plated robust steel construction, 12mm heavy duty plywood panels with marine carpet covering.
- Built-in heavy-duty fridge slide, 8 x heavy duty stainless steel tie down points.
- Comprehensive outer wing trim kit to provide a factory fit. Installation of drawers requires drilling and bolting through floor. Any existing sliding deck must be removed prior to drawer installation.
- Aluminum edging protection, heavy duty lockable latches. Sliding portion is not changeable from one side to the other.
- The wing kit optional is specifically designed for the Prado 150, it will fit the 5th Gen 4Runner but may have gaps or require some trimming.
- Not compatible with 3rd row seat installed. Massive 150KG (330LB) drawer capacity on heavy duty roller bearing system.
- For replacement bearings use part numbers:
- 608-RS - 8mm x 22mm x 7mm.
- 6200-2RS - 10mm x 30mm x 9mm.
Shipping is to nearest freight terminal or to a commercial address with a loading dock or forklift. Residential delivery adds additional separate costs.
All Colorado local pick-up orders for the Dobinsons Rear Dual Roller Drawer System with Fridge Slide are subject to a $330 transport fee.
