Description

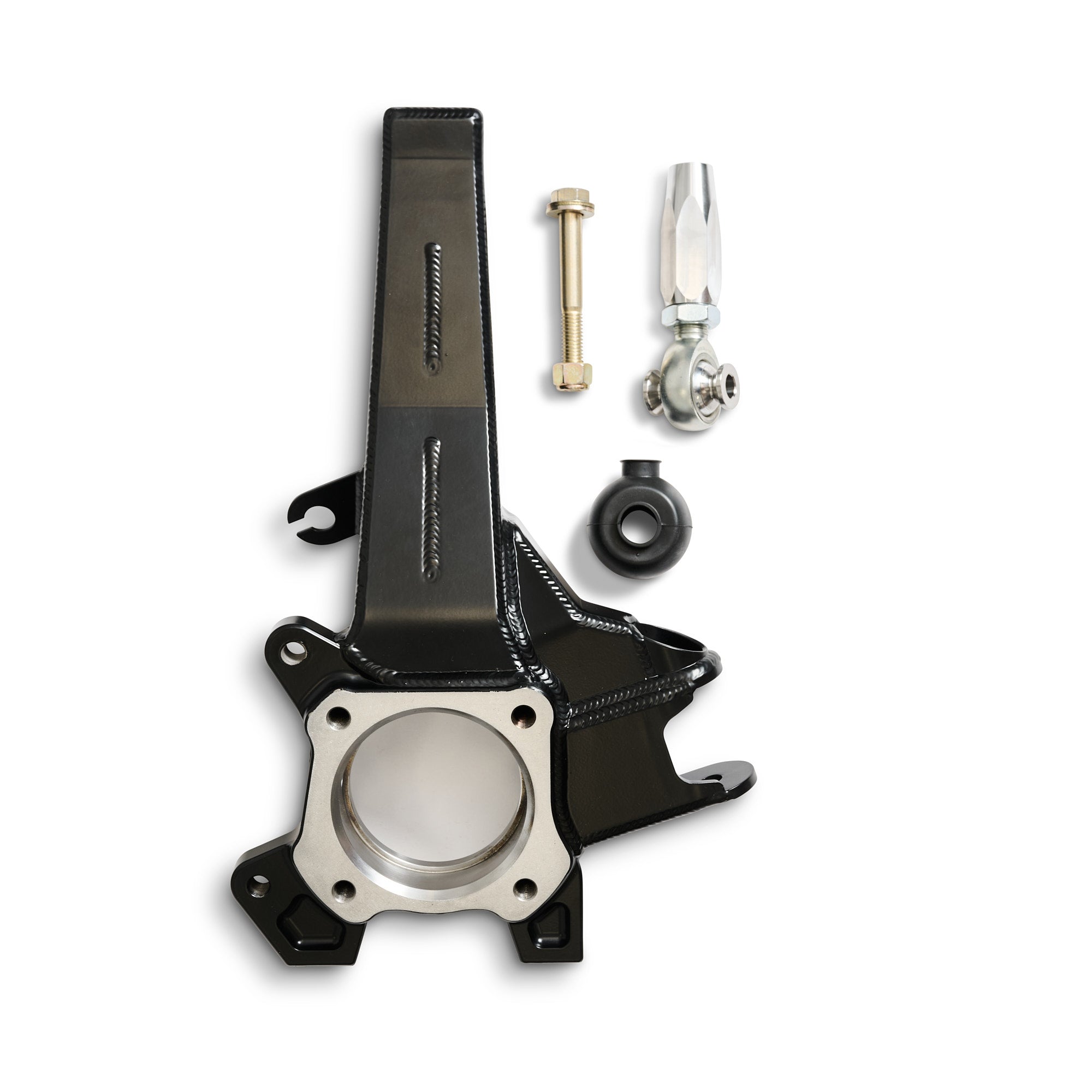

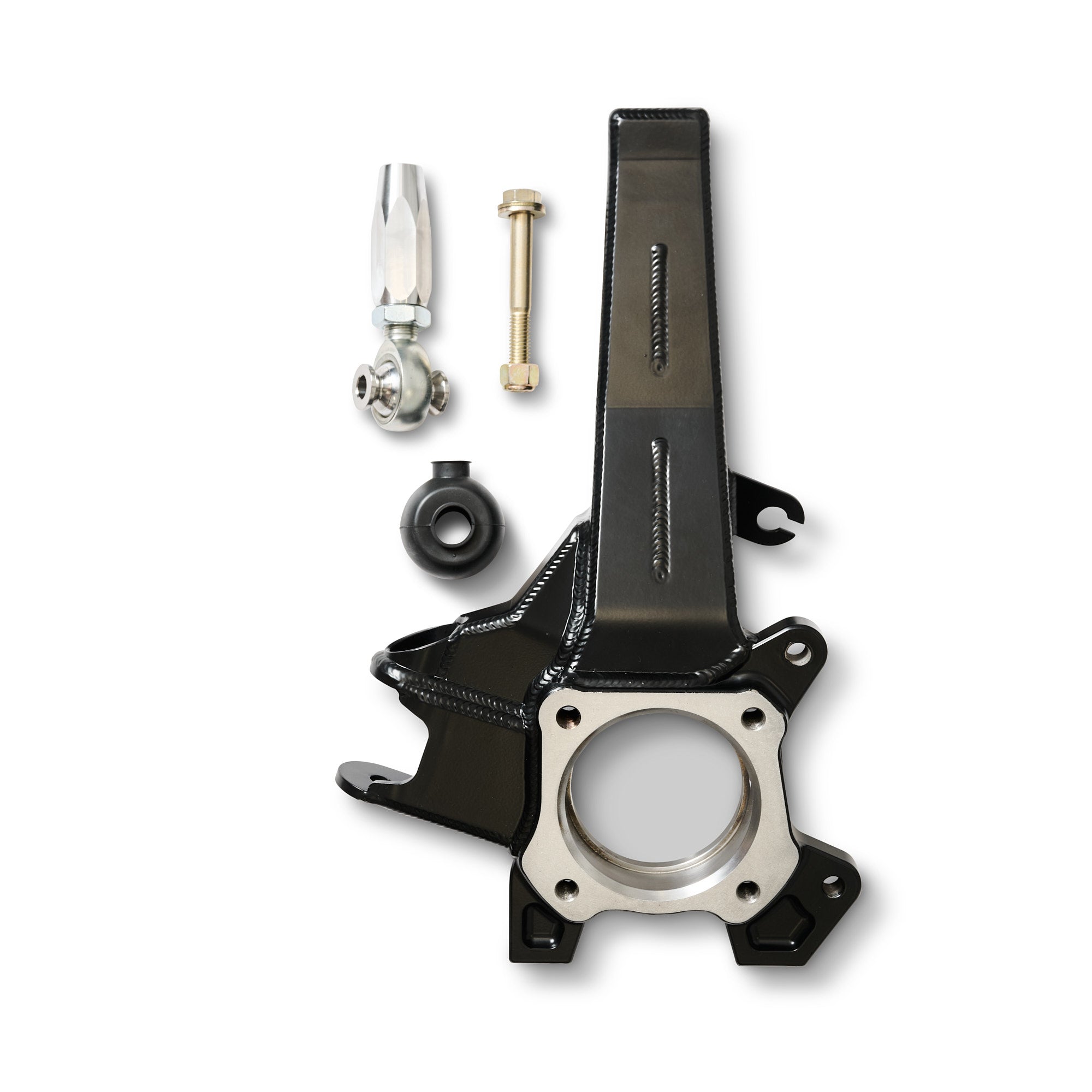

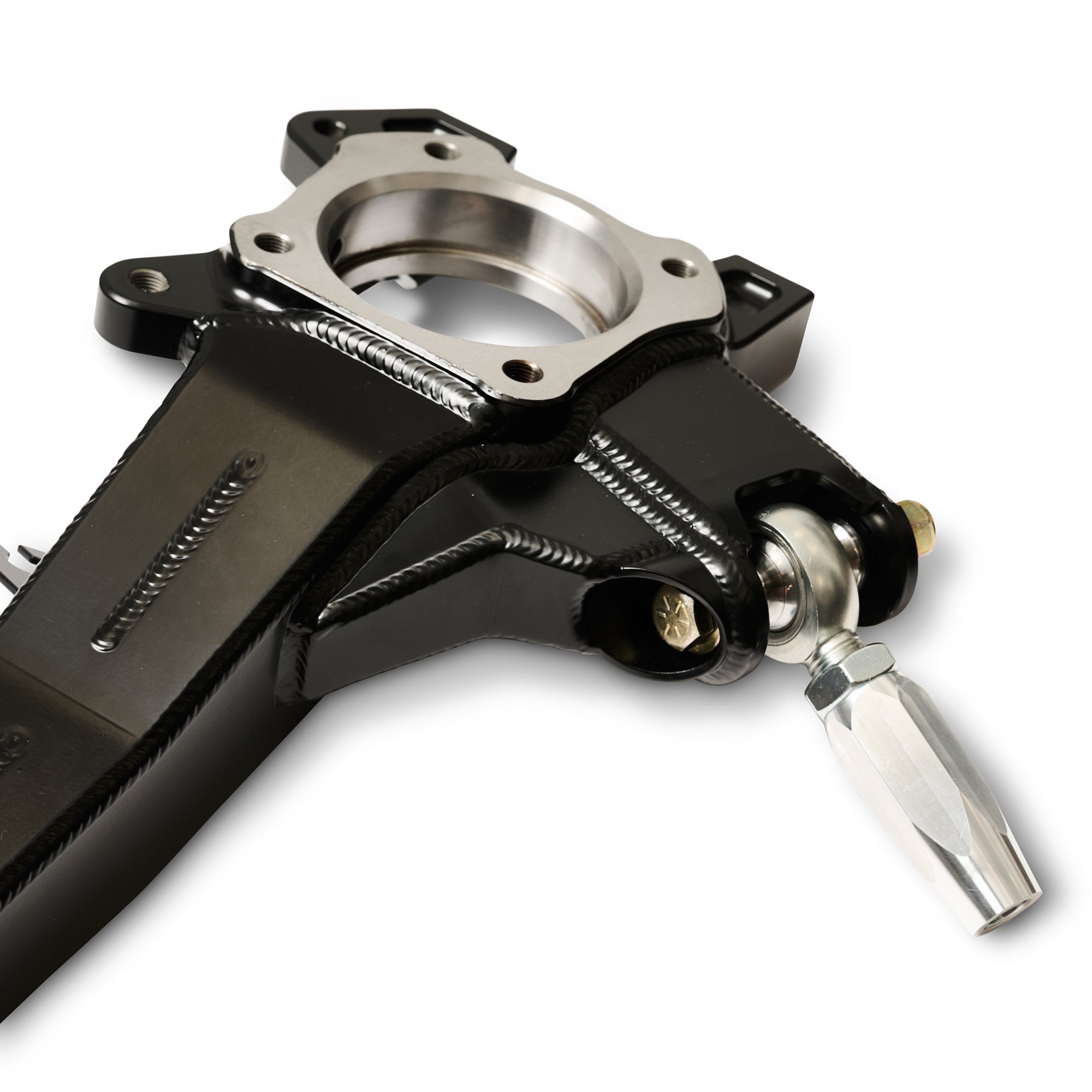

DRT Fabricated Spindle
IMPORTANT NOTE:
All non-Tacoma models will require a Tacoma bottom taper misalignment from your UCA manufacturer.
If you have questions, please contact info@drt-fabrication.com
Estimated lead time: 3–4 weeks.
Why Upgrade?

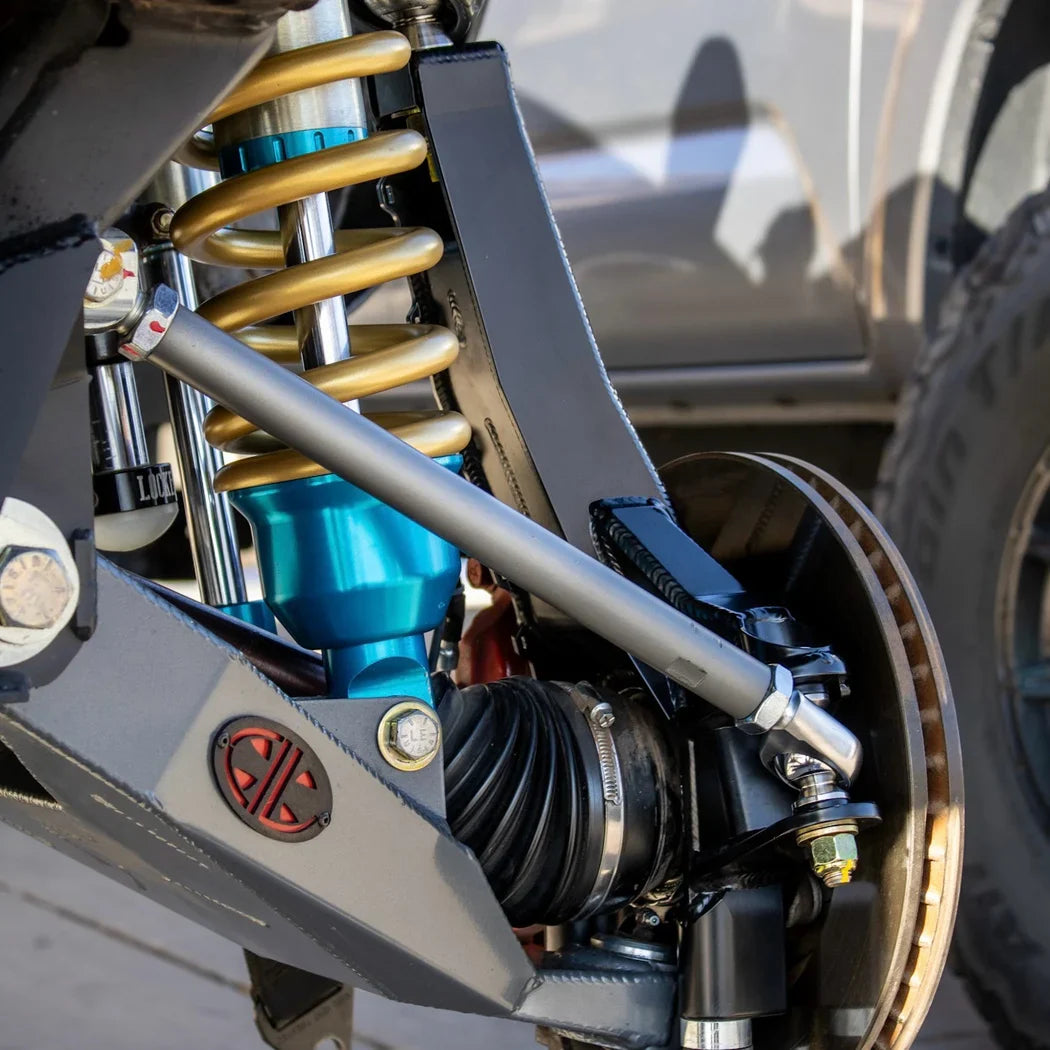

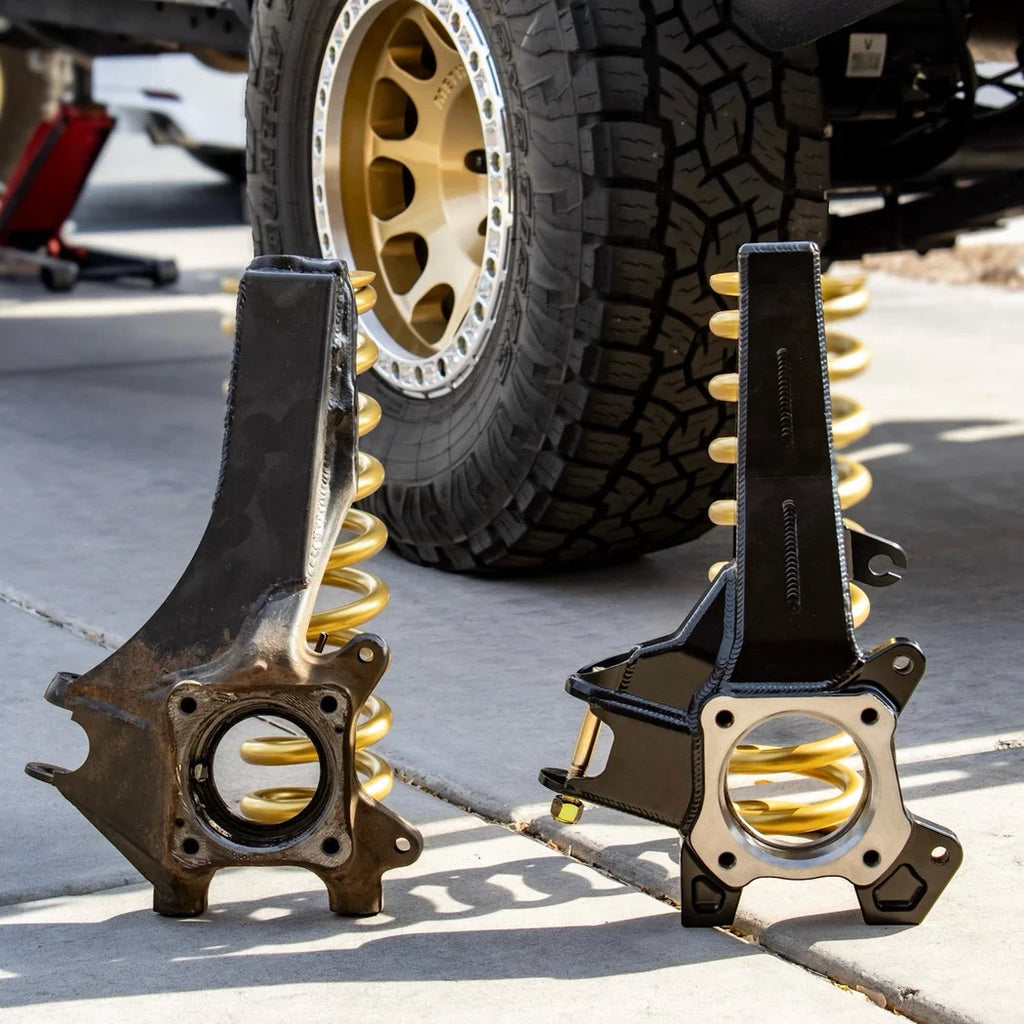

Most bolt-on long travel kits today reuse the factory spindles—leaving a critical weak link in your suspension system. The DRT Fabrication fabbed spindle eliminates this weak point, giving you the missing link in building a bulletproof suspension package.
Our design is based on the factory spindle with no geometry changes, meaning it is compatible with any bolt-on long travel kit designed for OEM spindles (both 2WD & 4WD Tacoma).
Key Features:
Strength & Construction:

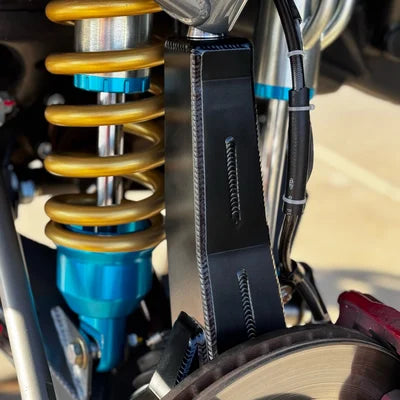

- Built from 3/16" & 1/4" A36 steel plate with internal gussets.
- 100% MIG welded for maximum durability.
Steering:

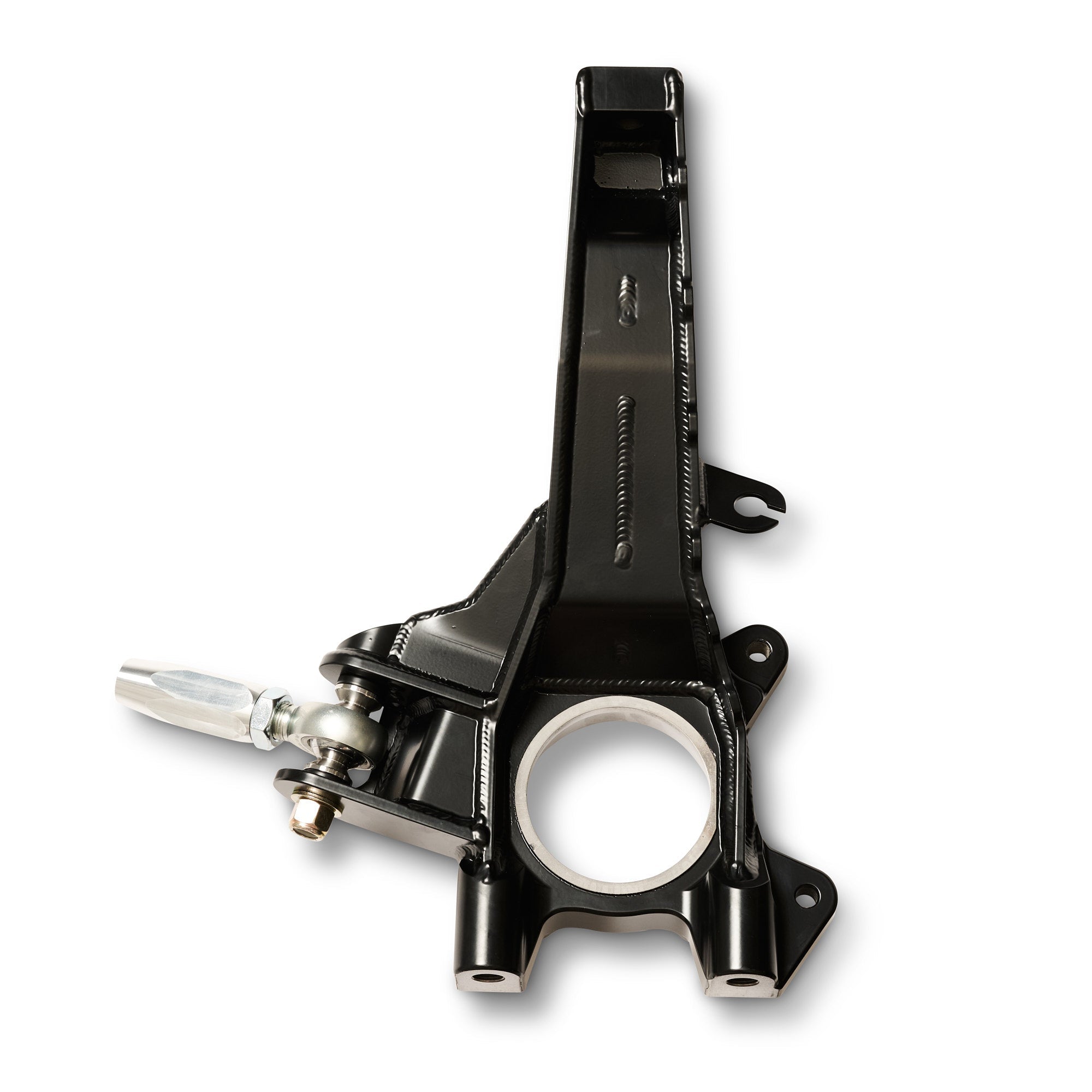

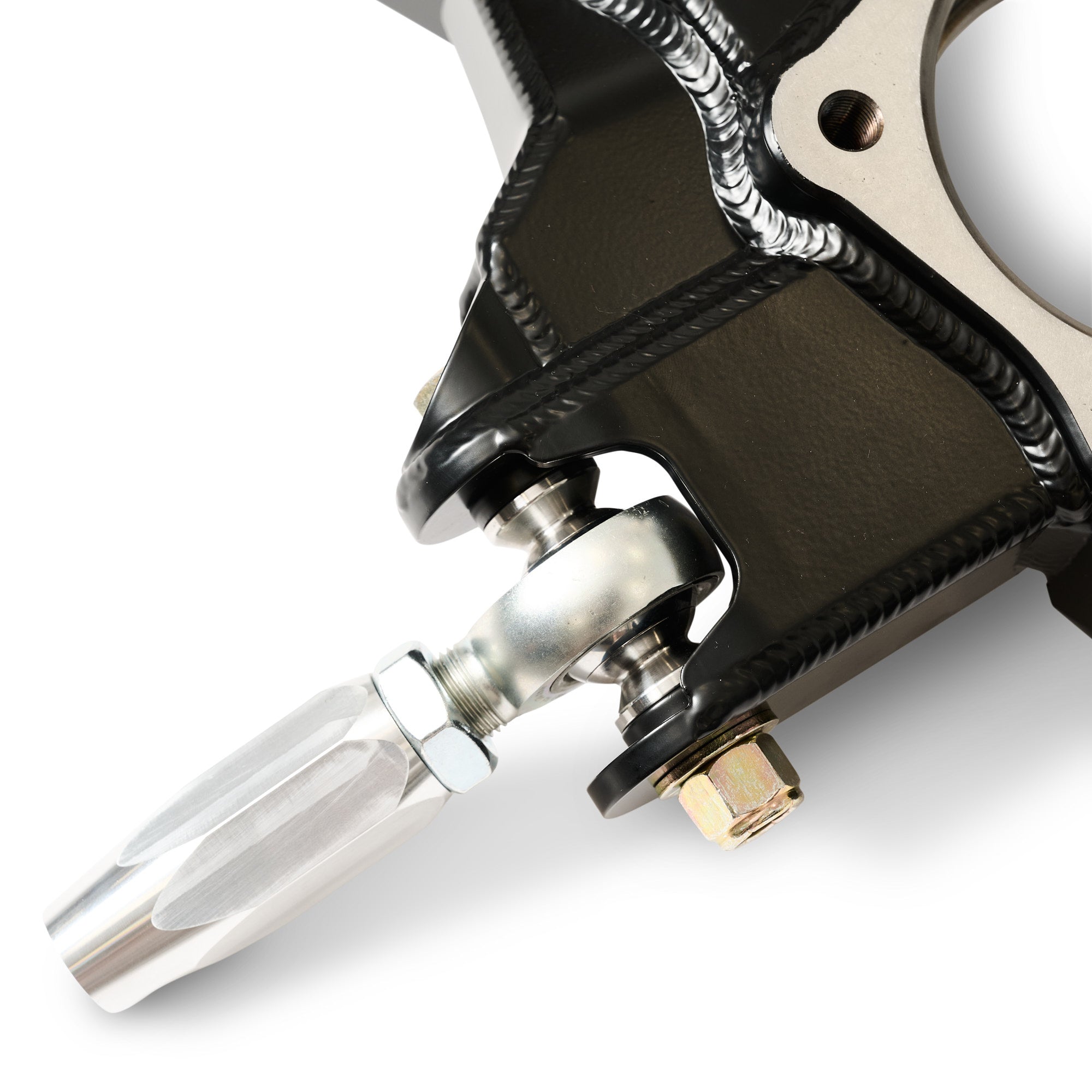

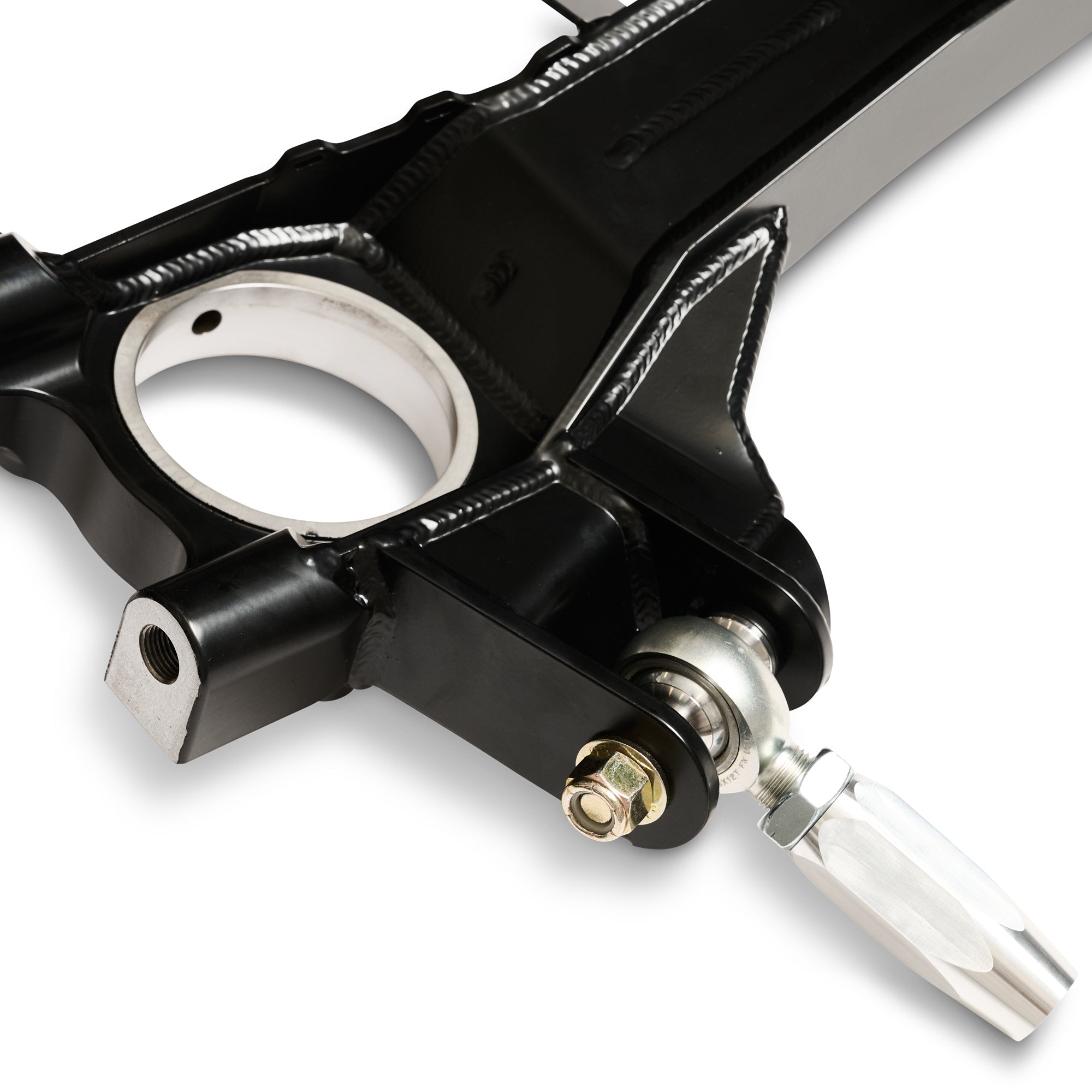

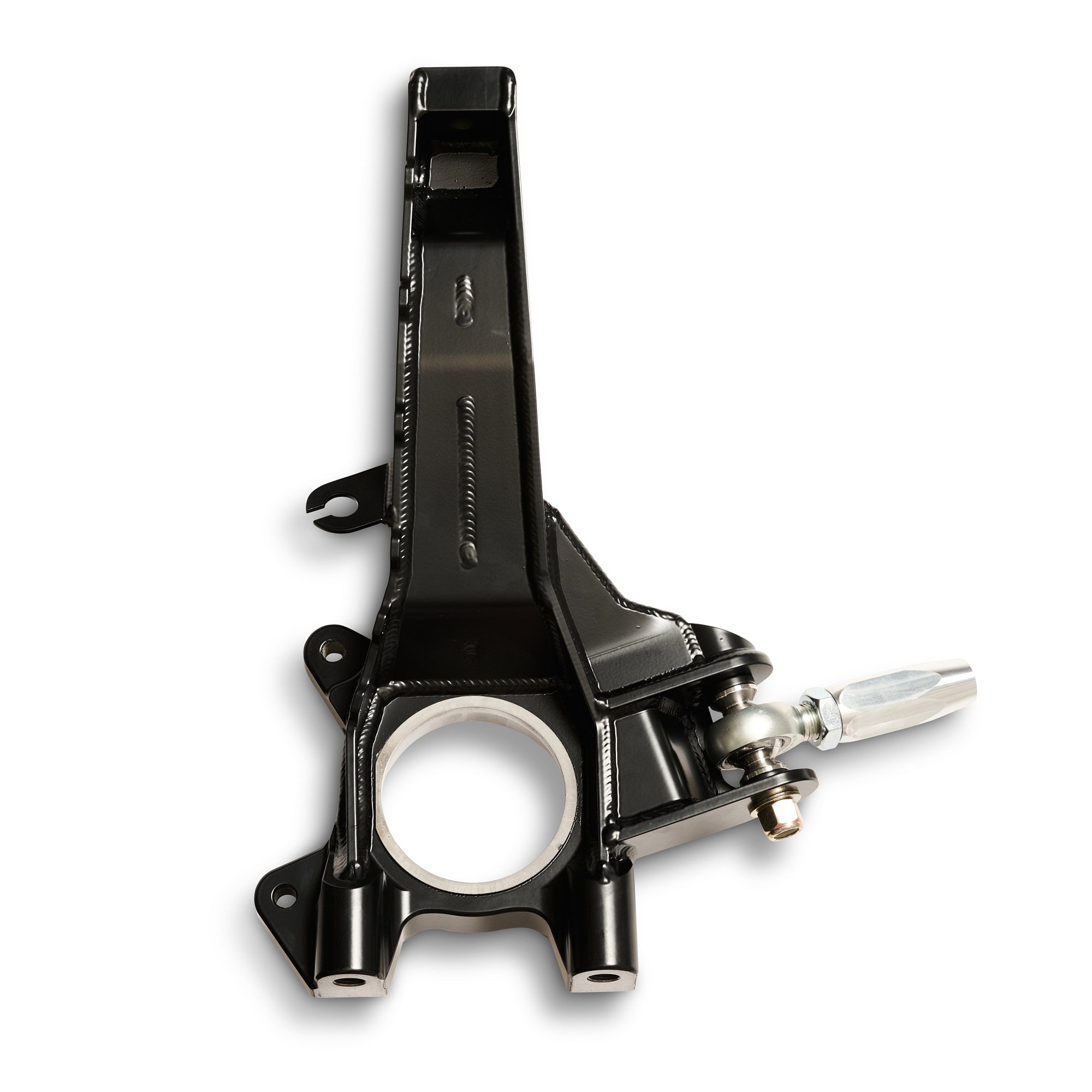

- Standard dual-shear heim steering (outer only) with correct heim center placement—unlike aftermarket conversions that alter geometry.
- Works with factory inner/outer tie rods and steering extenders.

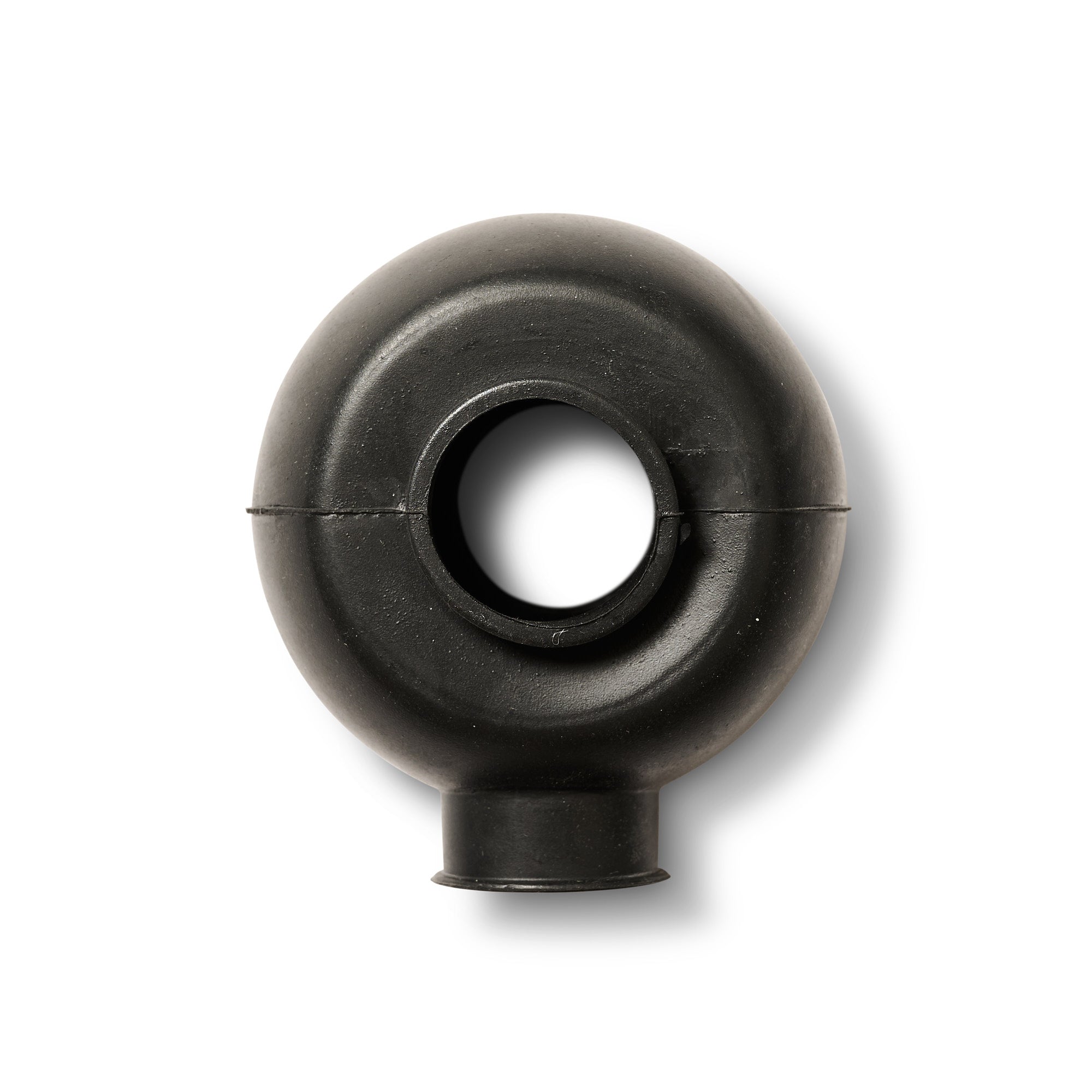

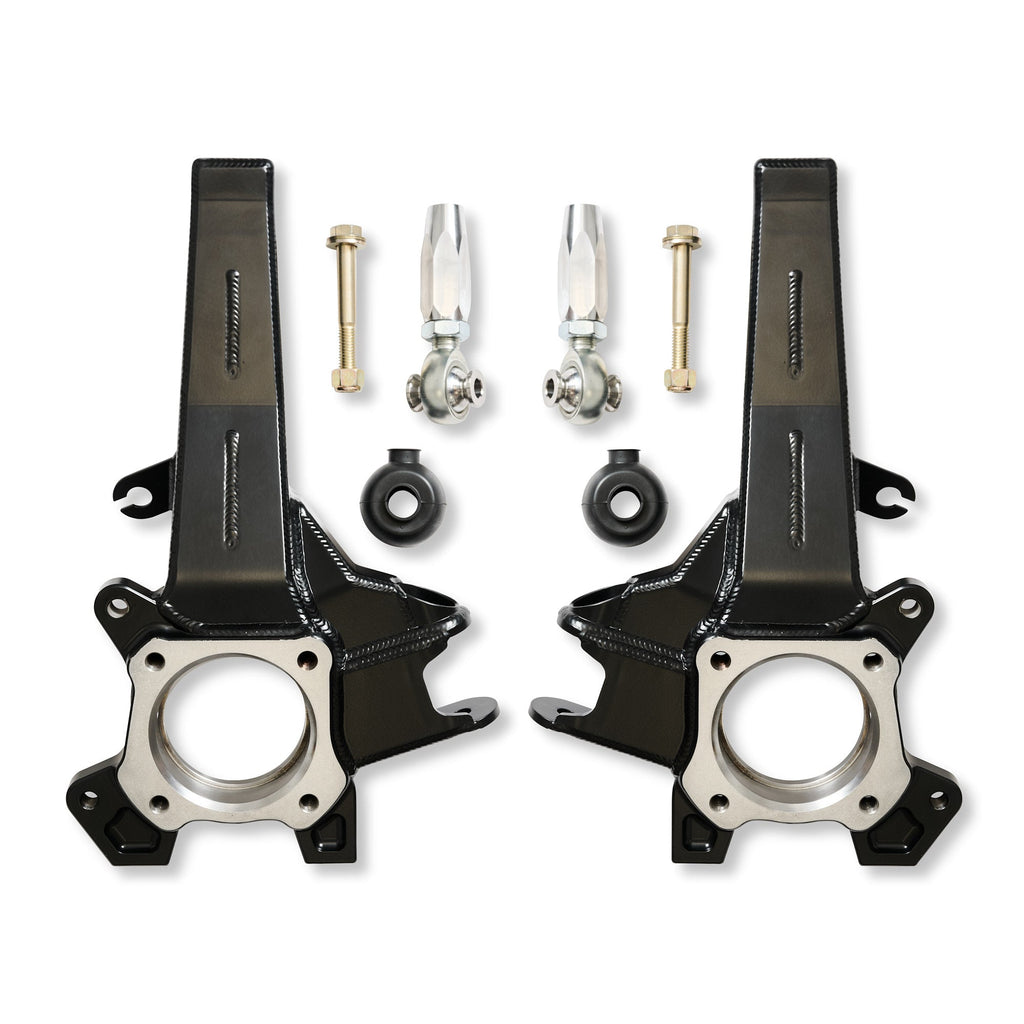

- Includes 3/4" FK JMX12T heim, custom high-angle misaligns, and a rubber boot cover for protection.
Hub Block & Brake Integration:
- Machined from billet steel with integrated caliper mounts.
- ABS sensor relocated behind caliper bracket—protected from damage.
- Stress risers minimized with extensive filleting.
Finish
- Powder coated satin black for a clean, durable finish.
Specs:
- 3/16" & 1/4" A36 plate + internal gusset
- 100% MIG welded
- Double shear heim outer steering w/ boot cover
- Relocated ABS sensor
- Billet hub block, tie rod, and UCA mount
- Satin black powder coat
Requirements & Compatibility
- Wheels: Minimum 16" diameter, minimum 4.5" backspacing
- Sway bars: Not compatible
- Works with factory & aftermarket LCAs

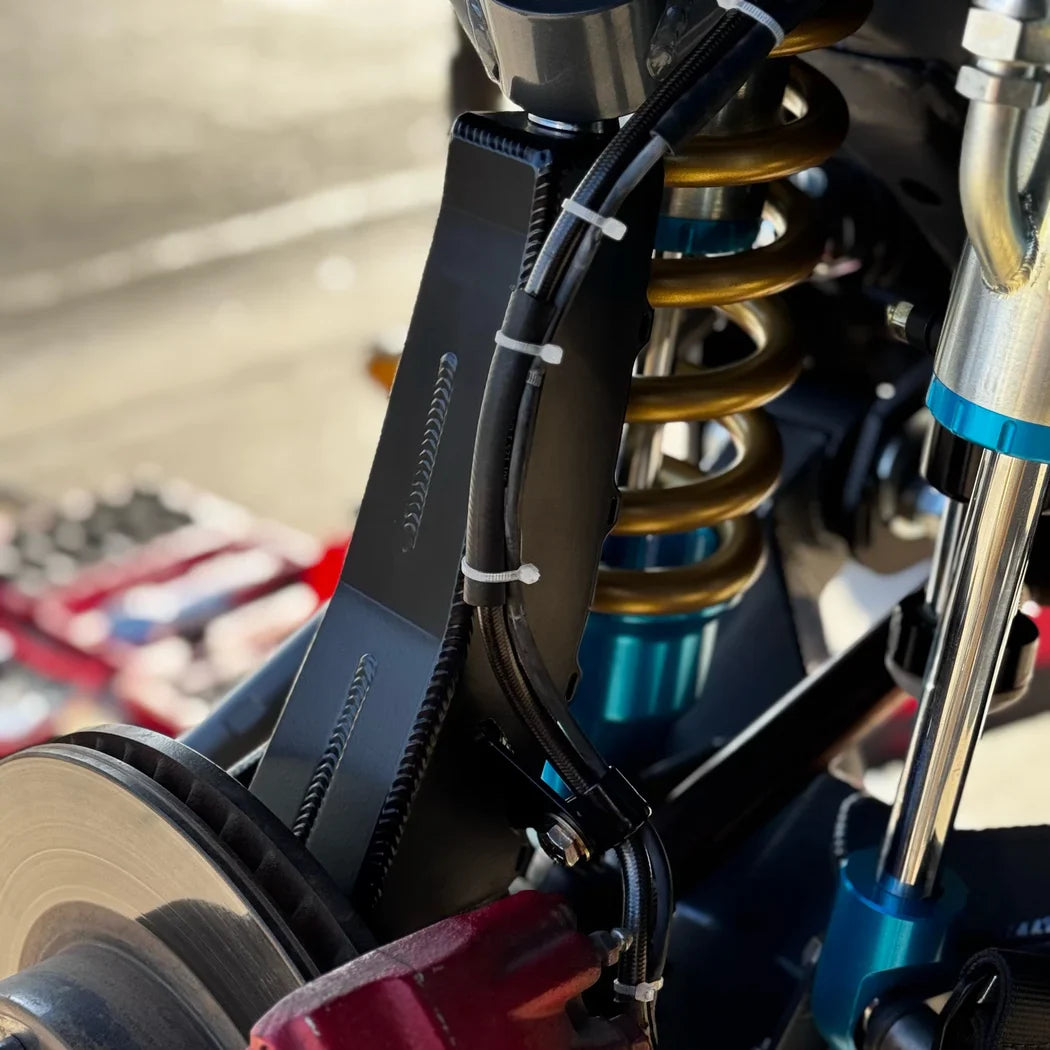

- Fits mid-travel & long-travel applications using OEM-style spindles
- Compatible with bolt-on LT kits and heim steering kits using a JMX12T heim (must use DRT HAM high-angle misaligns)
Brake Kit Fitment:
- SOS Performance BBK: Requires special adapter (contact SOS Performance).
- PowerBrake BBK: Requires special adapter (contact PowerBrake).
For Off-Road Use Only
Shipping:
Flat-rate shipping applies to the lower 48 states only.
Orders outside the lower 48 will be invoiced for the additional shipping cost prior to order fulfillment.
