Lensun Solar - 200W 12V Solar Blanket for 12V Battery or Power Station

LensunSolar 200W 12V Solar Blanket, the Most Durable Solar Mat on the market.

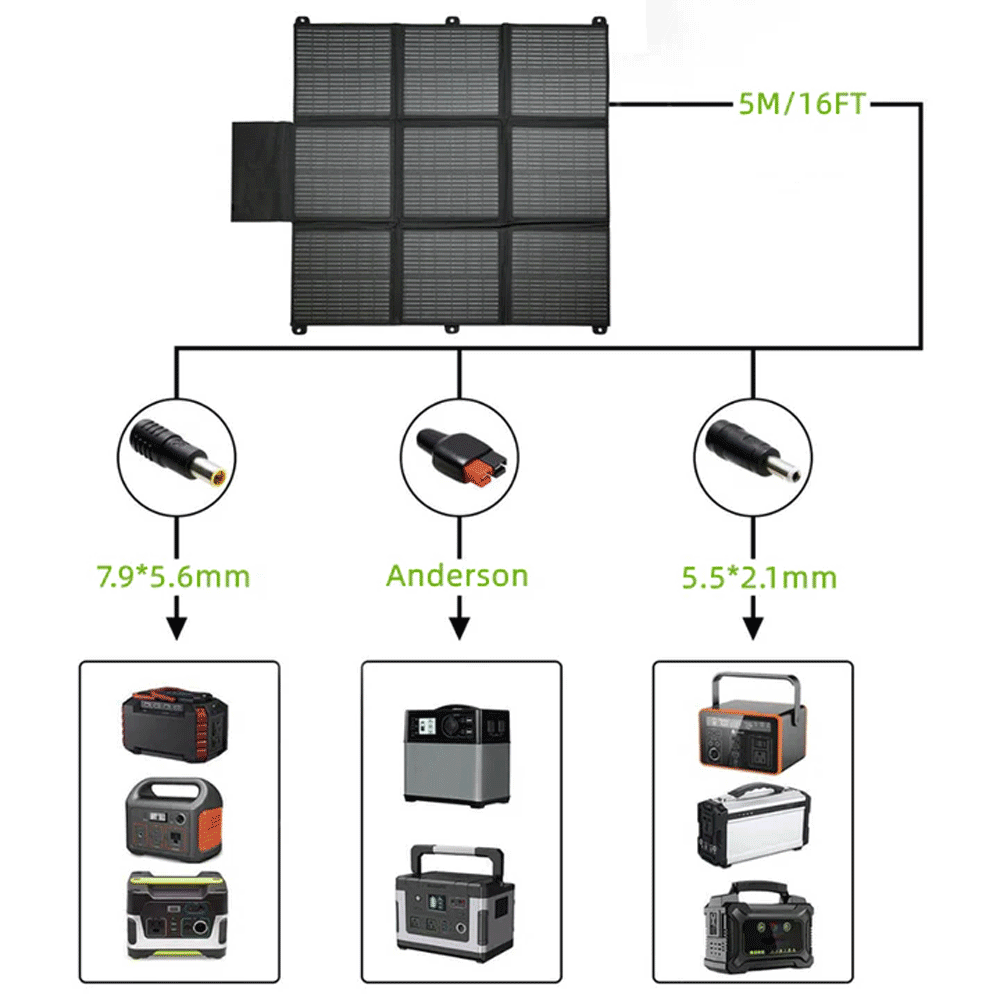

Come with adapter cables that can be compatible with most solar generators on the market (Jackery, GoalZero, etc.).

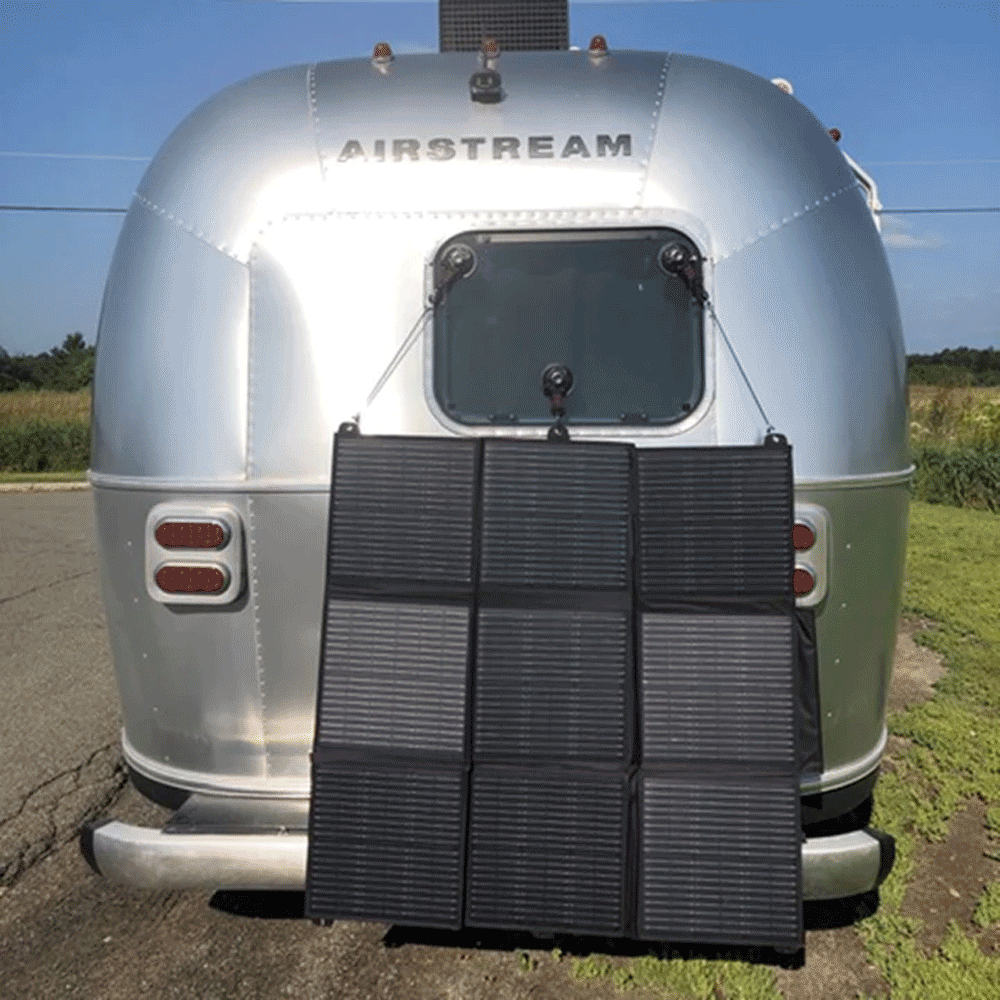

The LensunSolar 12V 200W Portable Solar Blanket is the ultimate in portable, lightweight solar power for any camping lifestyle. Built for durability and efficiency, it features a solid copper backing and thick connectors for better performance.

With top-grade PERC 9BB monocrystalline solar cells, it keeps your power station or 12V dual battery system charged, powering fridges, camp lights, and more. Perfect for anyone from the casual camper right through to the 24/7 caravanners after an extra bit of power.

Made from high-quality canvas, this flexible, lightweight blanket packs down to 1/9th of its size, just like one compact tile, and weighs just 5.2kgs/11.4 lbs. Our solar blankets are an ideal charging solution for those short on space.

Feature:

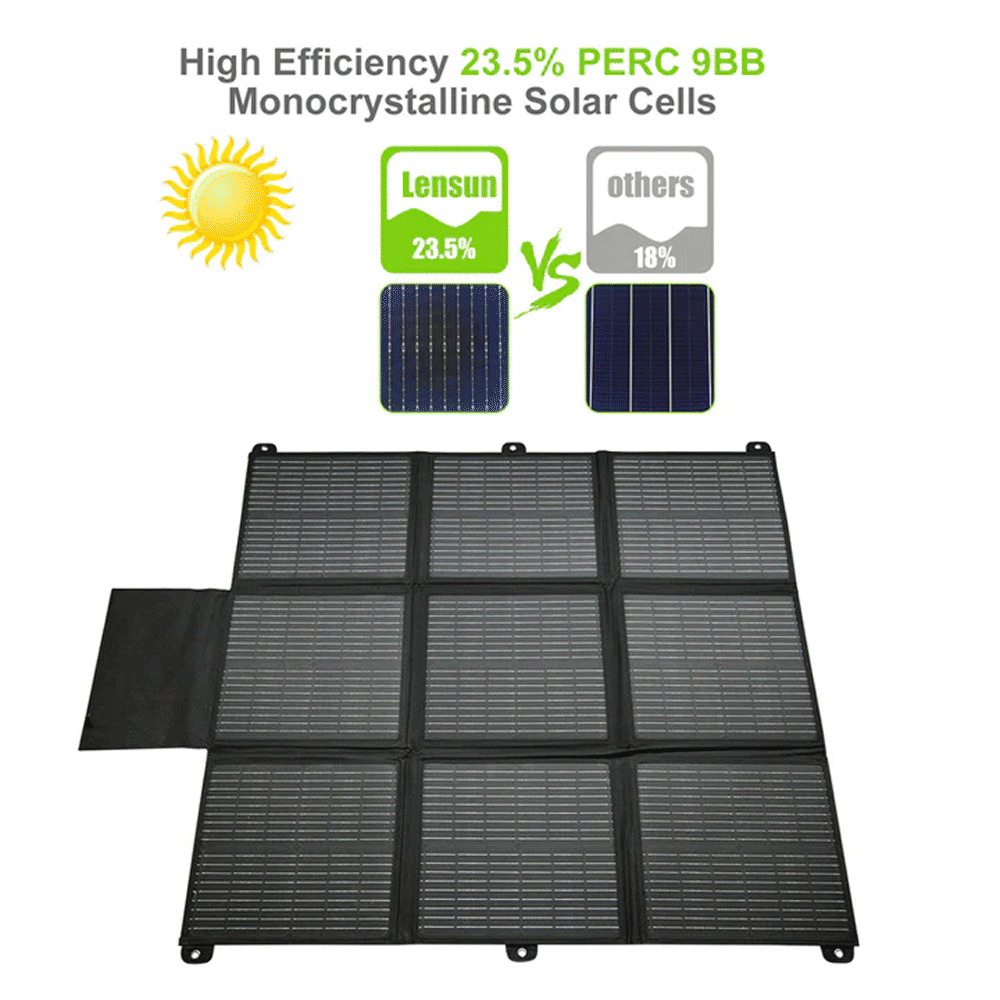

1. Solar Cells: Made with Grade A PERC 9BB monocrystalline cells offering 23.5% efficiency and more durability than other solar cells.

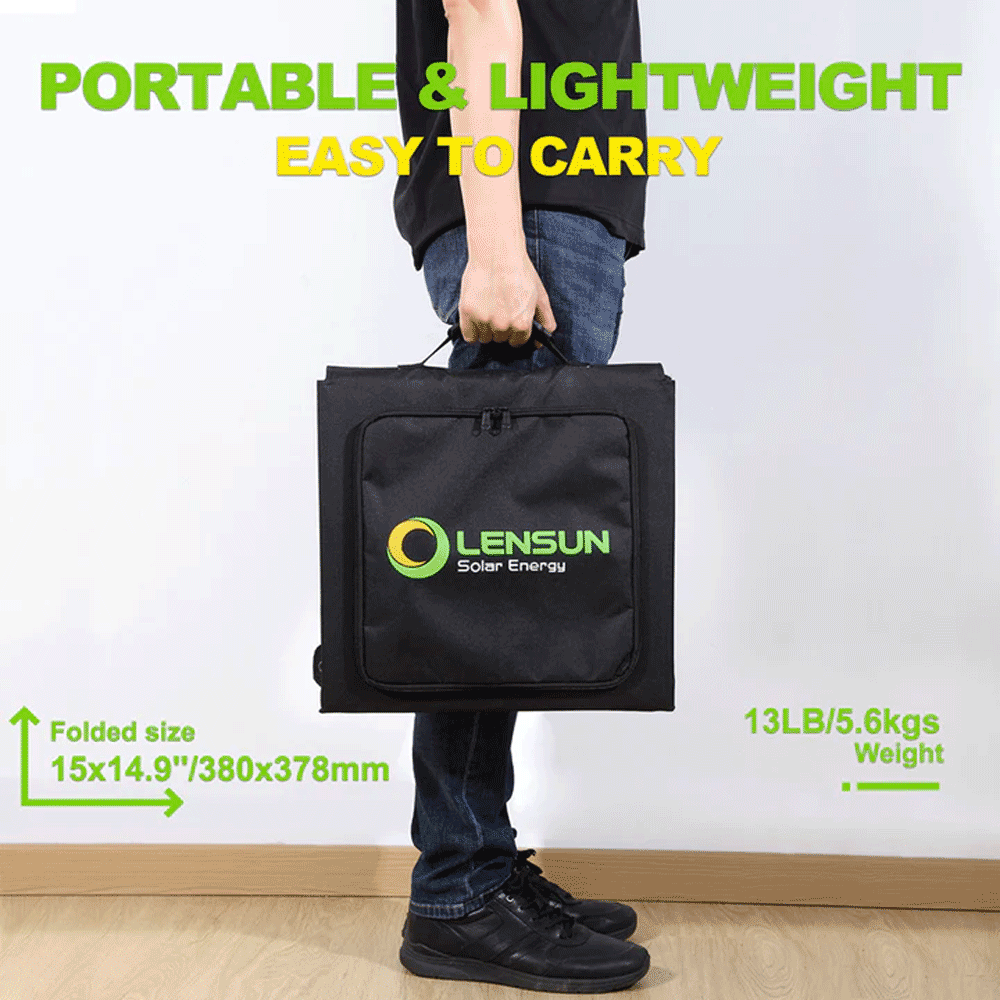

2. High Portability: Ultra-compact when folded (15x15in/38x38cm) and lightweight at 11.4 lbs/5.2kgs. With 6 metal grommets for easy setup.

3. Waterproof & Durable: Constructed from waterproof 600D Oxford cloth (IP54 rating) and operates in extreme temperatures from -40°F to 185°F (-40° C to 85° C).

4. Output: Standard MC-4 connectors with a 16ft/5m extension cable for easy panel connections.

5. Optional MPPT Controller: The optional 20A waterproof MPPT solar controller offers plug-and-play convenience, pre-wired with fuses, terminals, and connectors. It features advanced MPPT technology with intelligent protections, including reverse polarity and overcharging prevention. Compatible with Sealed, AGM, Gel, Liquid, and Lithium-ion batteries, it also supports Bluetooth wireless monitoring for added control.

Item Specifications:

• Model: LS-200BK-MC-4
  Rated Power Output: 200W
  Optimum Operating Voltage [Vmp]: 18V
  Optimum Operating Current [Imp]: 11.11A
  Open Circuit Voltage [Voc]: 21.24V
  Short Circuit Current [Isc]: 12.22A
  Cell Technology: Monocrystalline Solar Cells
  Solar Cells Efficiency：23.5%
  Production Tolerance: +3%
  Output Type: Solar Cables, Solar Controller

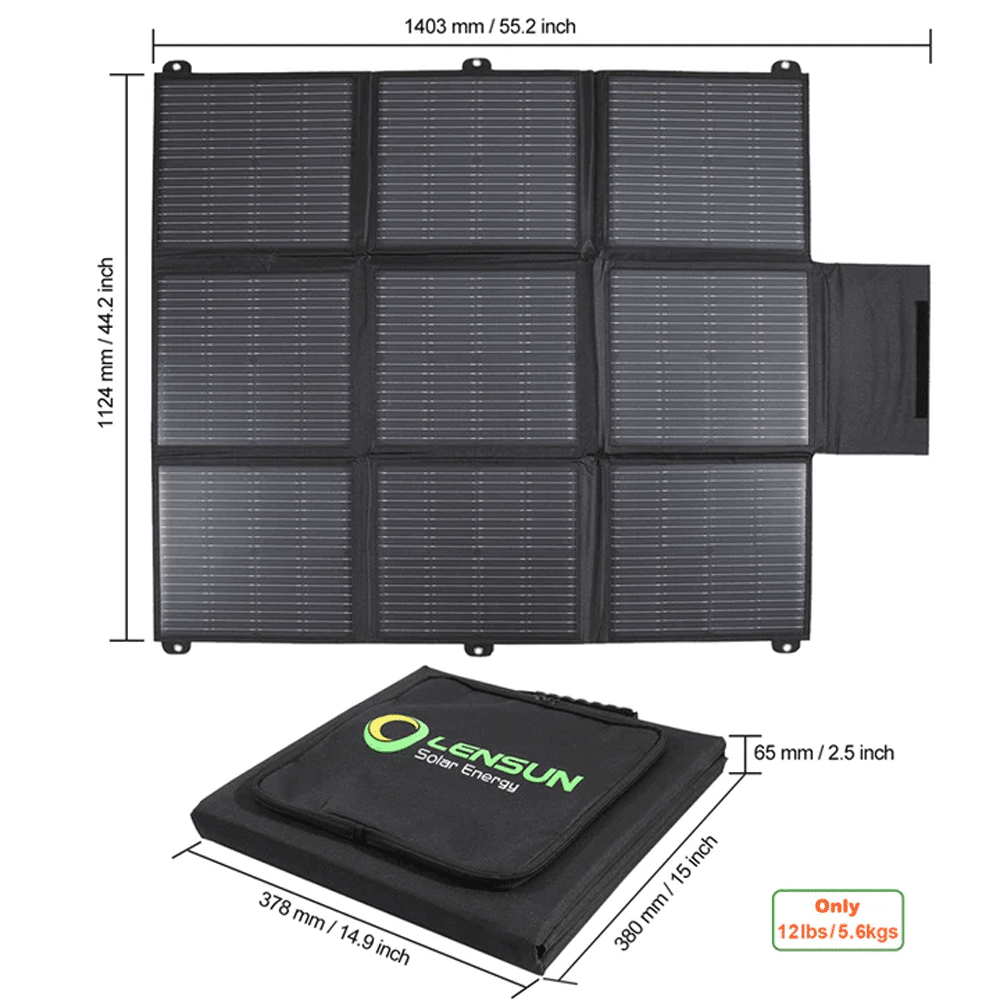

  Dimensions(unfolded): 1403x1124mm/55.2x44.2inch
  Dimensions(folded): 380x380x65 mm/ 15x15x2.5inch
  Net. Weight: 5.2kgs/11.4 lbs
  All Technical data at standard test condition AM=1.5, E=1000W/mm, Tc=25℃

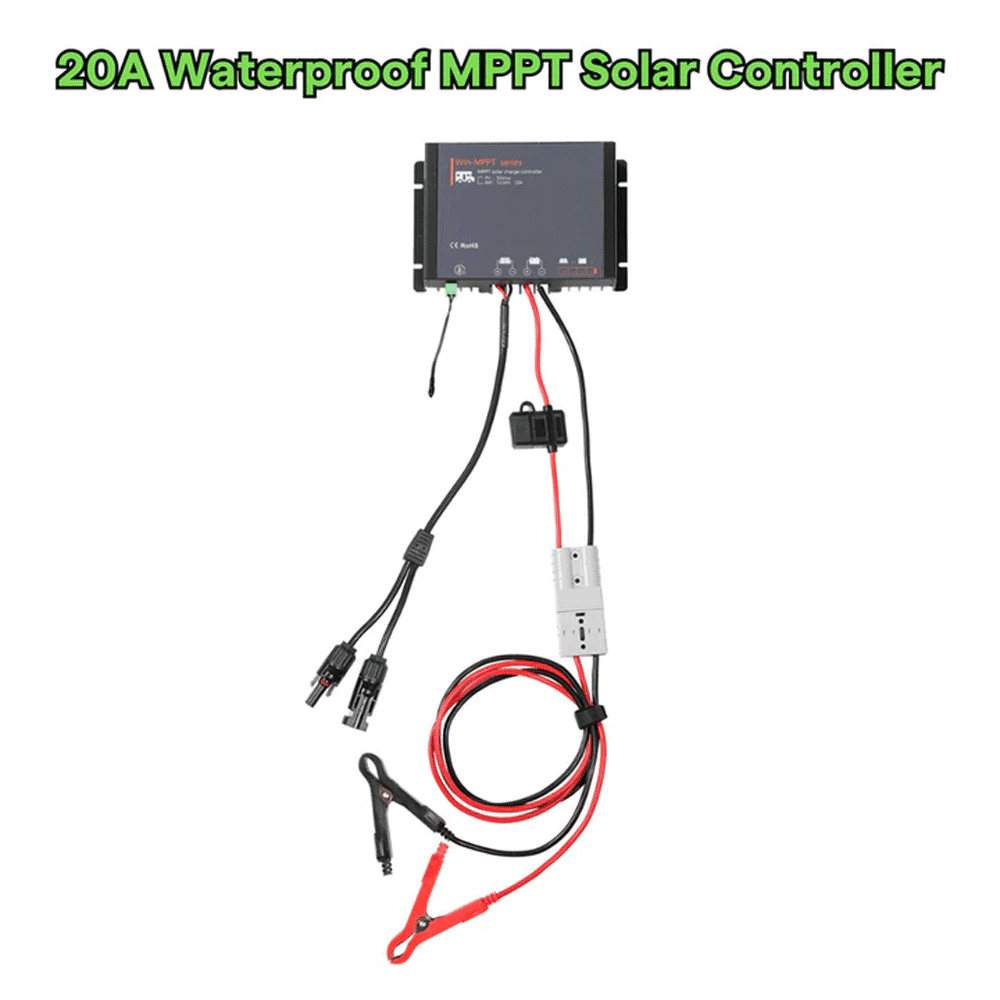

LensunSolar Waterproof 20A MPPT Solar Controller.

• Charge for AGM, Liquid, GEL, and Lithium Battery.

• Waterproof: Suitable for indoor or outdoor use.

• Battery Types: Gel, AGM, Liquid, Lithium(default: Gel).

• Bluetooth: Support mobile phone APP, wireless monitoring.

Specification:

• Model: Win500-KT

• System Voltage: 12V/24V

• Max Charging Power: 500W

• Max Volt on Bat. Terminal: 35V

• Max volt on PV Terminal: 55V

• Temp. Compensation: -4.17mV/K per cell (Boost, Equalization), -3.33mV/K per cell (Float)

• Communication: Bluetooth

• Working temperature: -20 to +55℃, -68 to +131℉

• Storage temperature: -25 to +80℃, -77 to +176℉

• Enclosure: IP54

• Dimensions: 164x106x32mm/6.5x4x1.3 inch

• Weight: 700g/1.5 lbs

• Maximum Terminals Wire Size: 10AWG(4mm²)

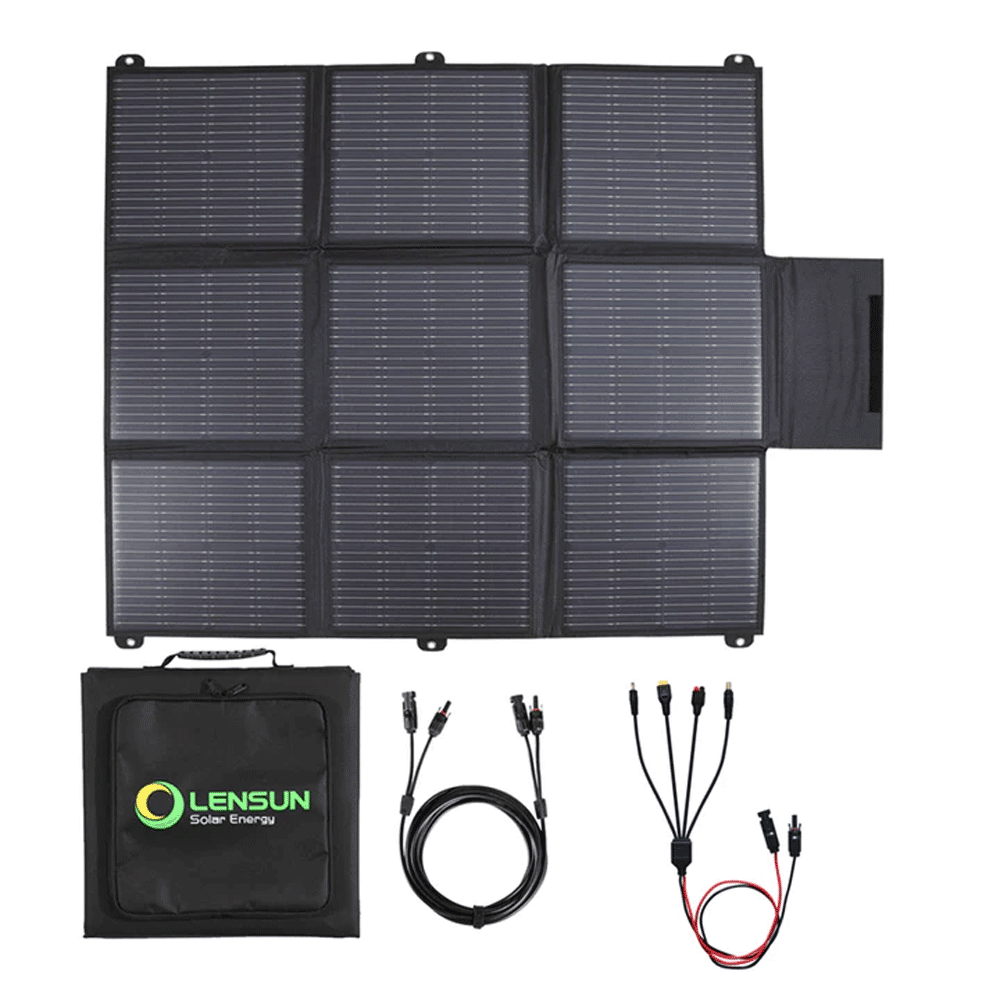

Packing:

• 1 x LesnunSolar 200W solar blanket .
• 1 x 16ft/5m extend cable.

• 1 x  3.2ft/1m solar panel Y adaptor cable.

• 1 x 20A Waterproof MPPT Solar Controller (at your option).
