Lensun Solar - 300W Solar Blanket Complete Kit with Waterproof MPPT Regulator

LensunSolar 300W 12V Solar Blanket + Waterproof 20A Controller .

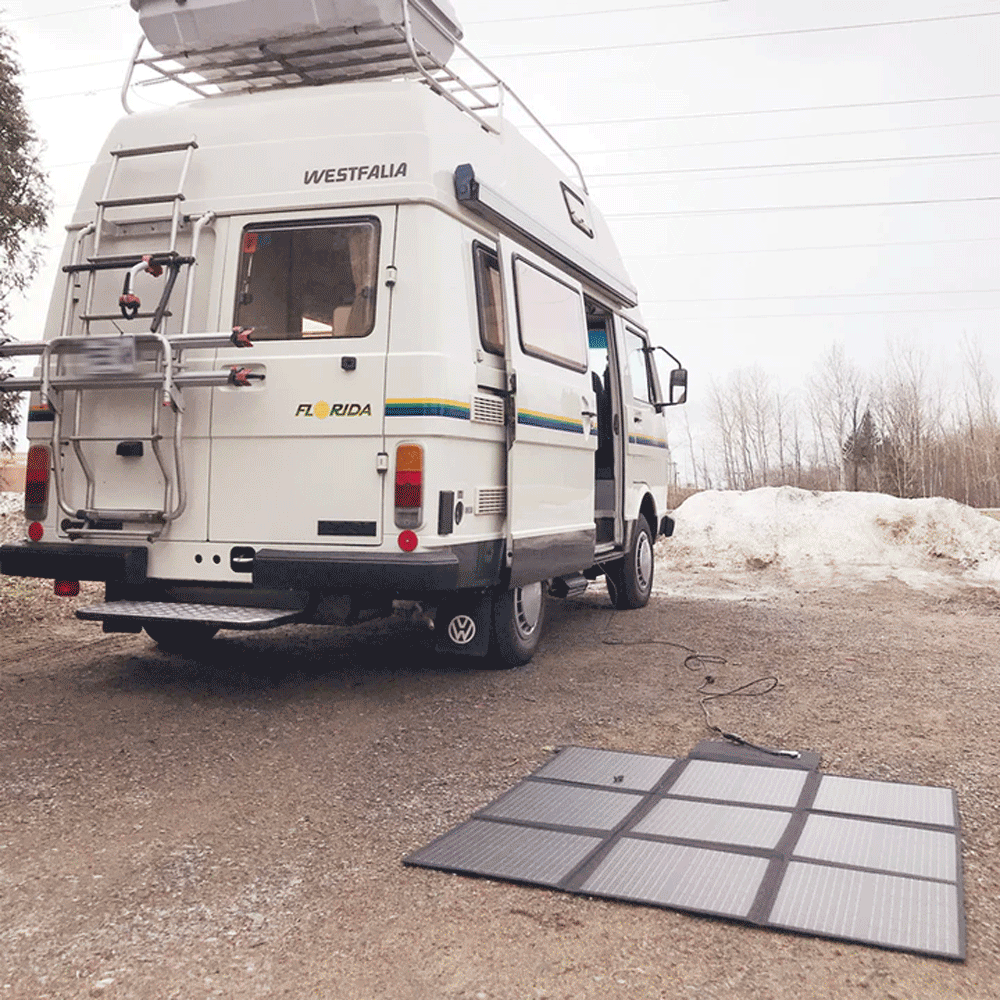

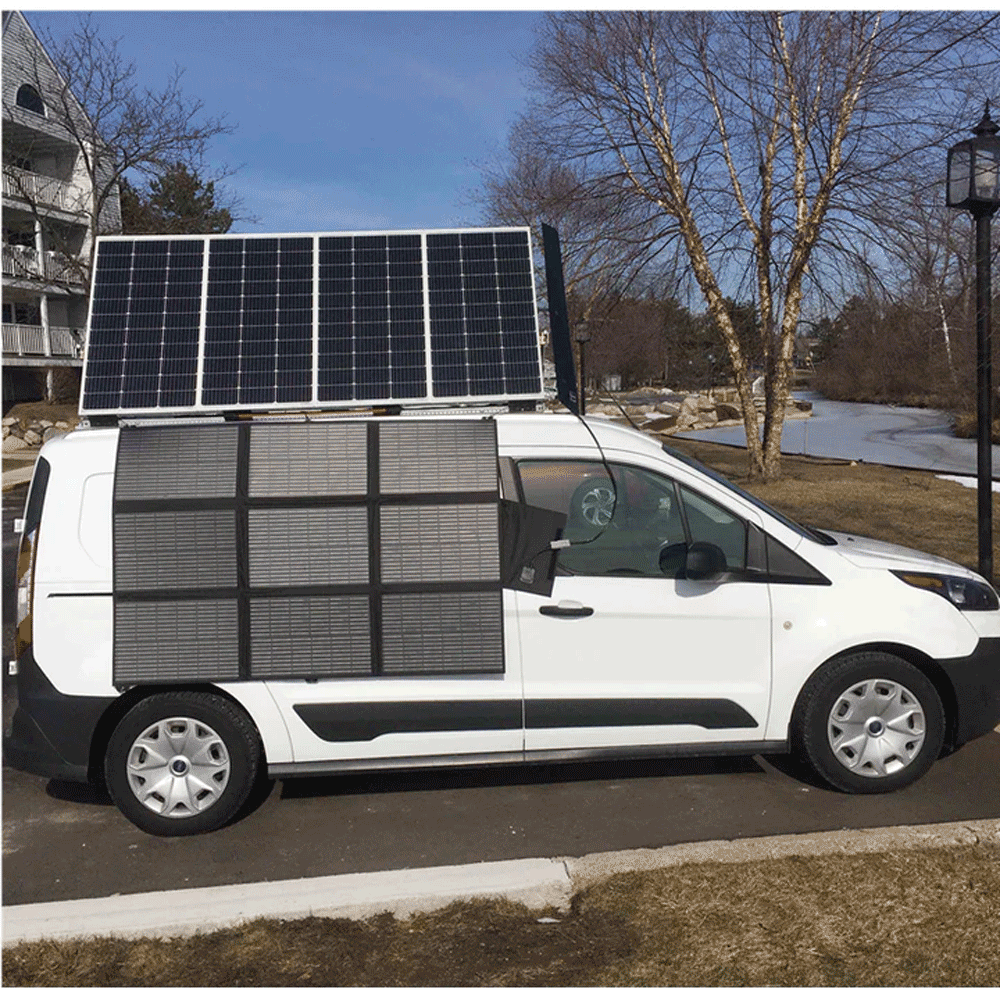

When you're on the go, reliable power is essential, and solar is the eco-friendly way to stay charged! The Lensun 300W Foldable Solar Blanket is perfect for camping, RV trips, boating, or any outdoor adventure, keeping your devices powered off-grid.

The blanket includes an Anderson-style connection and a 20A waterproof MPPT regulator for plug-and-play convenience, along with in-line fuses, heavy-duty clamps, and an external regulator to monitor battery charge.

Made from high-quality canvas, this flexible, lightweight blanket packs down to 1/9th of its size, just like one compact tile, and weighs just 7.6kgs/16.7 lbs. Our solar blankets are an ideal charging solution for those short on space.

Feature:

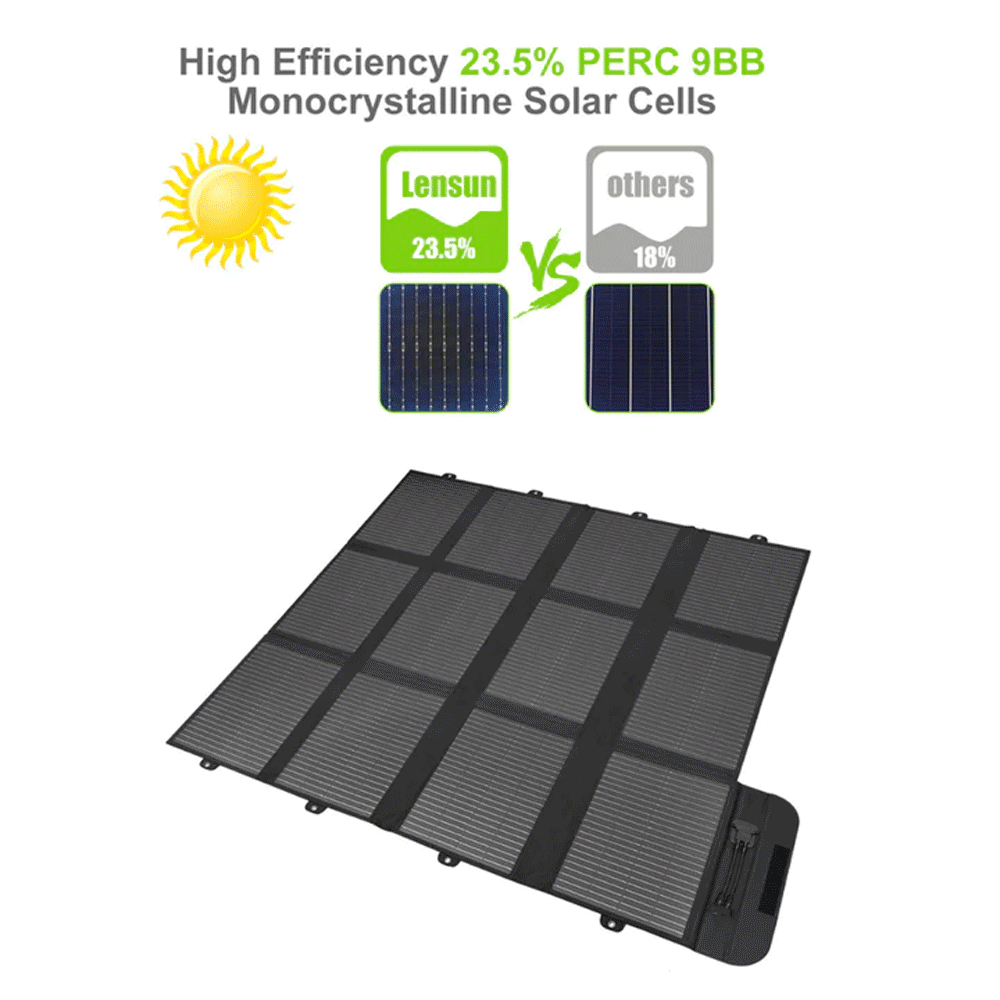

1. Solar Cells: Made with Grade A PERC 9BB monocrystalline cells offering 23.5% efficiency and more durability than other solar cells.

2. High Portability: Ultra-compact when folded (15x15in/38x38cm) and lightweight at 16.7 lbs/7.6kgs. With 6 metal grommets for easy setup.

3. Waterproof & Durable: Constructed from waterproof 600D Oxford cloth (IP54 rating) and operates in extreme temperatures from -40°F to 185°F (-40° C to 85° C).

4. Output: Standard MC-4 connectors with a 16ft/5m extension cable for easy panel connections.

5. 20A waterproof MPPT solar controller: It efficiently transfers power from the solar blanket to your battery. The regulator ensures the correct charge is delivered, protecting the battery from overcharging and maximizing its lifespan.

Item Specifications:

• Model: LS-300BK-AD

• Rated Power Output: 300W

• Optimum Operating Voltage [Vmp]: 18V

• Optimum Operating Current [Imp]: 16.66A

• Open Circuit Voltage [Voc]: 21.24V

• Short Circuit Current [Isc]: 18.33A

• Cell Technology: Monocrystalline Solar Cells

• Solar Cells Efficiency: 23.5%

• Production Tolerance: +3%

• Output Type: Solar Cables, Solar Controller

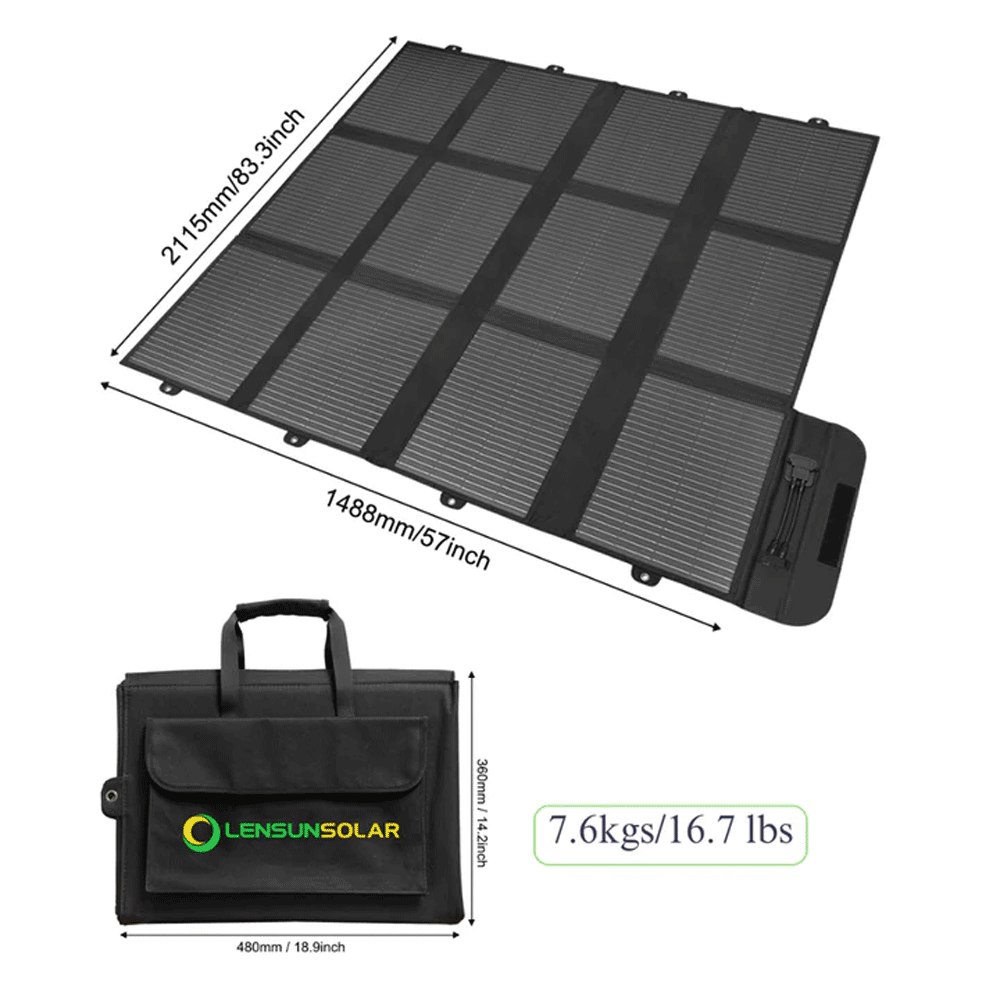

• Dimensions(unfolded): 2115x1488mm/83.3x57inch

• Dimensions(folded): 480x360x65 mm/ 18.9x14.2x2.5inch

• Net. Weight: 7.6kgs/16.7 lbs

• All Technical data at standard test conditions AM=1.5, E=1000W/mm, Tc=25℃

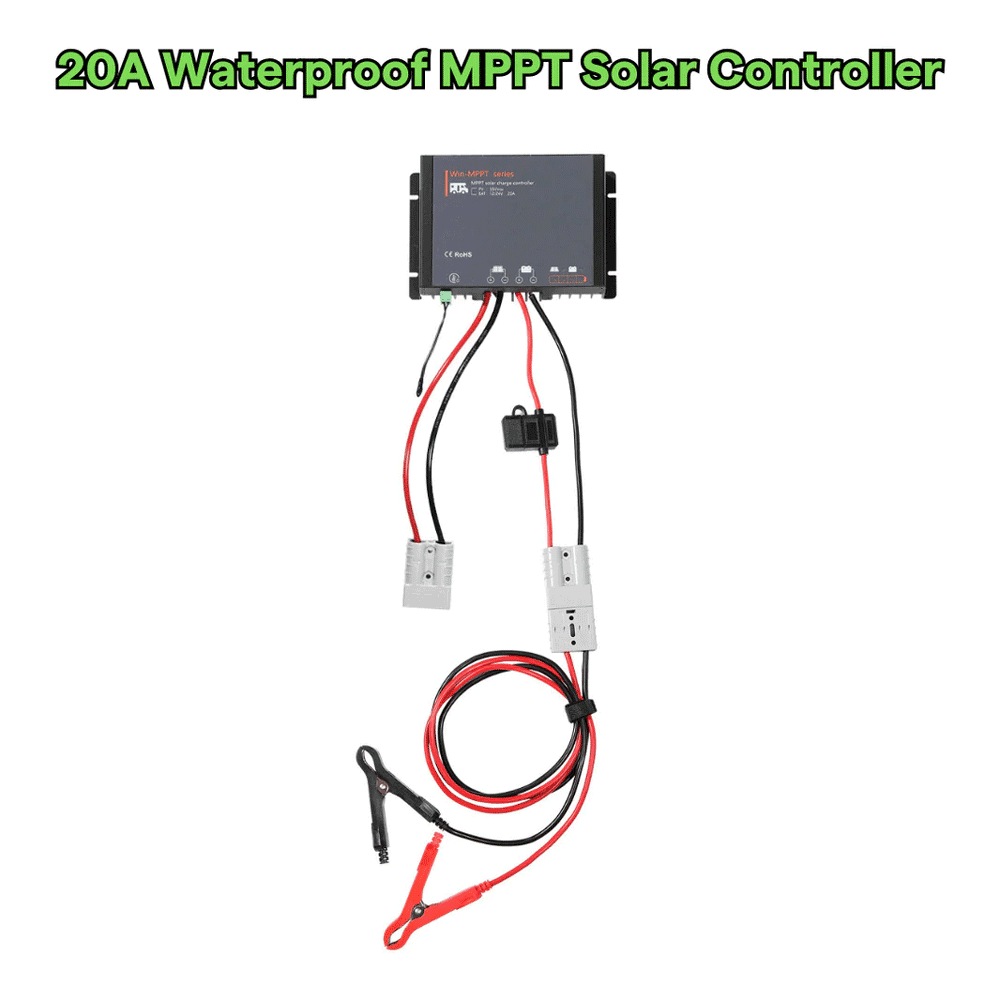

LensunSolar Waterproof 20A MPPT Solar Controller:

• Charge for AGM, Liquid, GEL, and Lithium Battery.

• Waterproof: Suitable for indoor or outdoor use.

• Battery Types: Gel, AGM, Liquid, Lithium(default: Gel).

• Bluetooth: Support mobile phone APP, wireless monitoring.

Specification:

• Model: Win500-KT

• System Voltage: 12V/24V

• Max Charging Power: 500W

• Max Volt on Bat. Terminal: 35V

• Max volt on PV Terminal: 55V

• Temp. Compensation: -4.17mV/K per cell (Boost, Equalization), -3.33mV/K per cell (Float)

• Communication: Bluetooth

• Working temperature: -20 to +55℃, -68 to +131℉

• Storage temperature: -25 to +80℃, -77 to +176℉

• Enclosure: IP54

• Dimensions: 164x106x32mm/6.5x4x1.3 inch

• Weight: 700g/1.5 lbs

• Maximum Terminals Wire Size: 10AWG(4mm²)

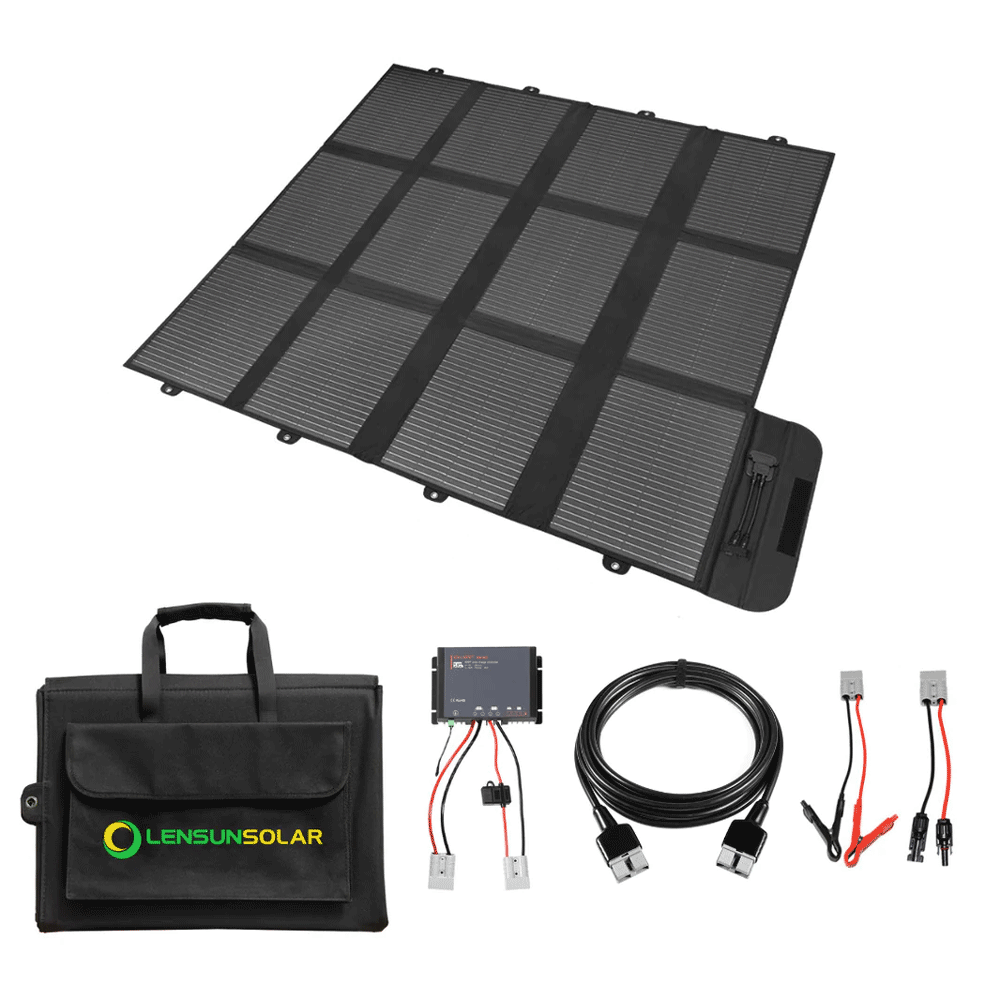

Packing:

• 1 x LensunSolar 300W solar blanket.

• 1 x 20A Waterproof MPPT Solar Controller.

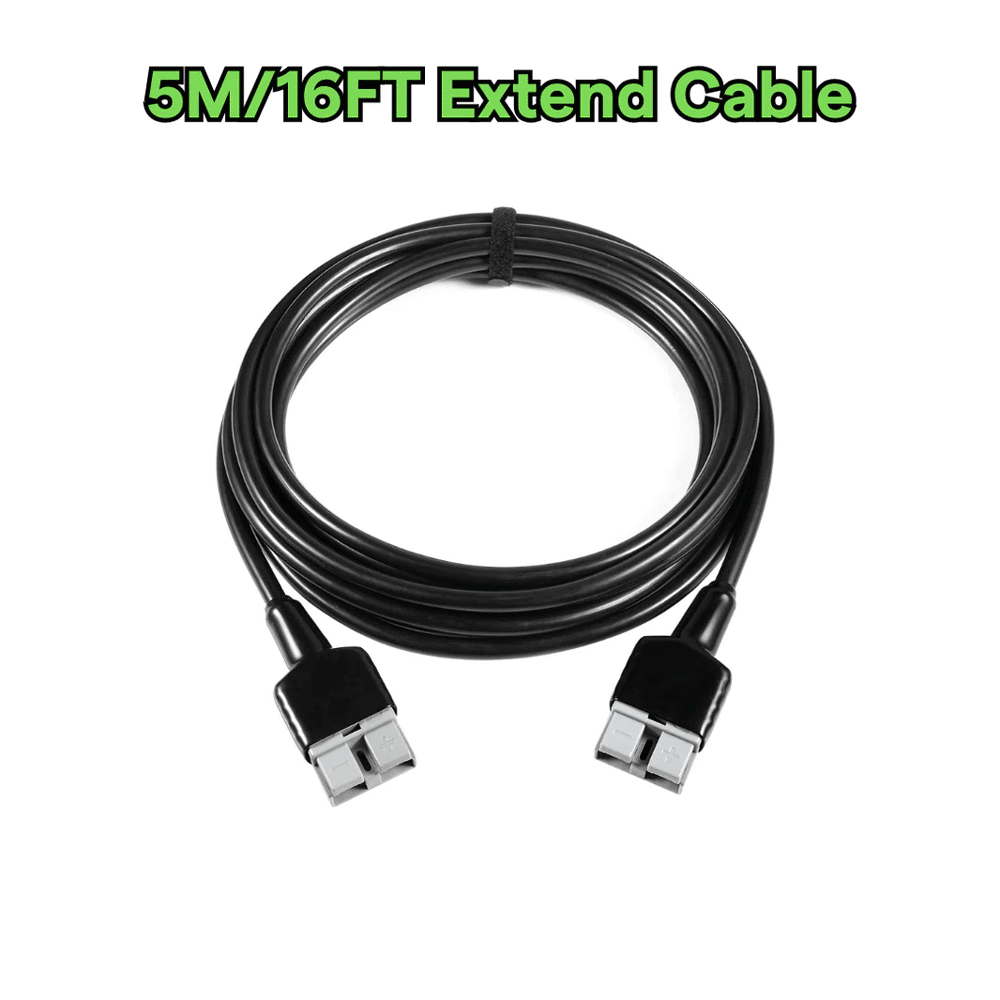

• 1 x 5m Anderson to Anderson Extension Lead.

• 1 x Anderson to Standard connectors (charge for solar generator).

• 1 x Anderson to Alligator Clip Adaptor(charge for battery).
