Description
What's included:

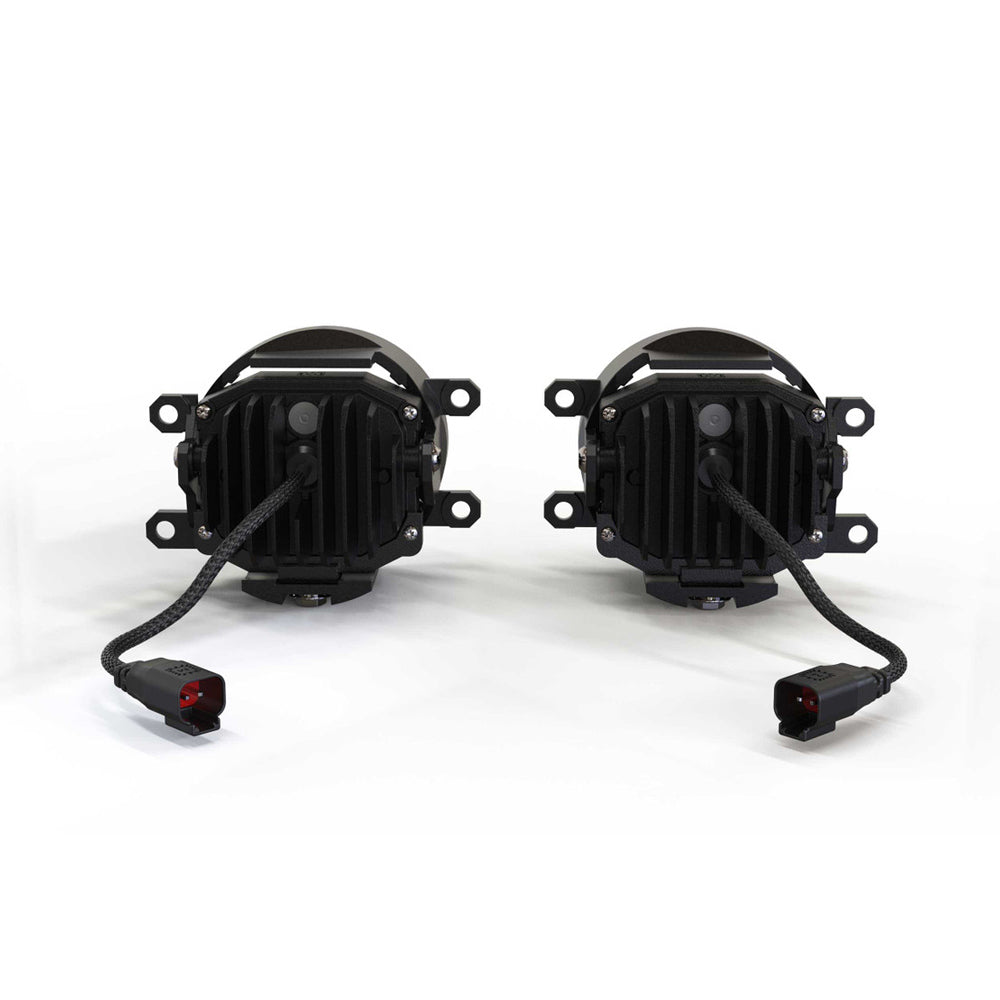

- Fog light brackets: 2x (one pair) Morimoto 4Banger (BAF014/type T style).

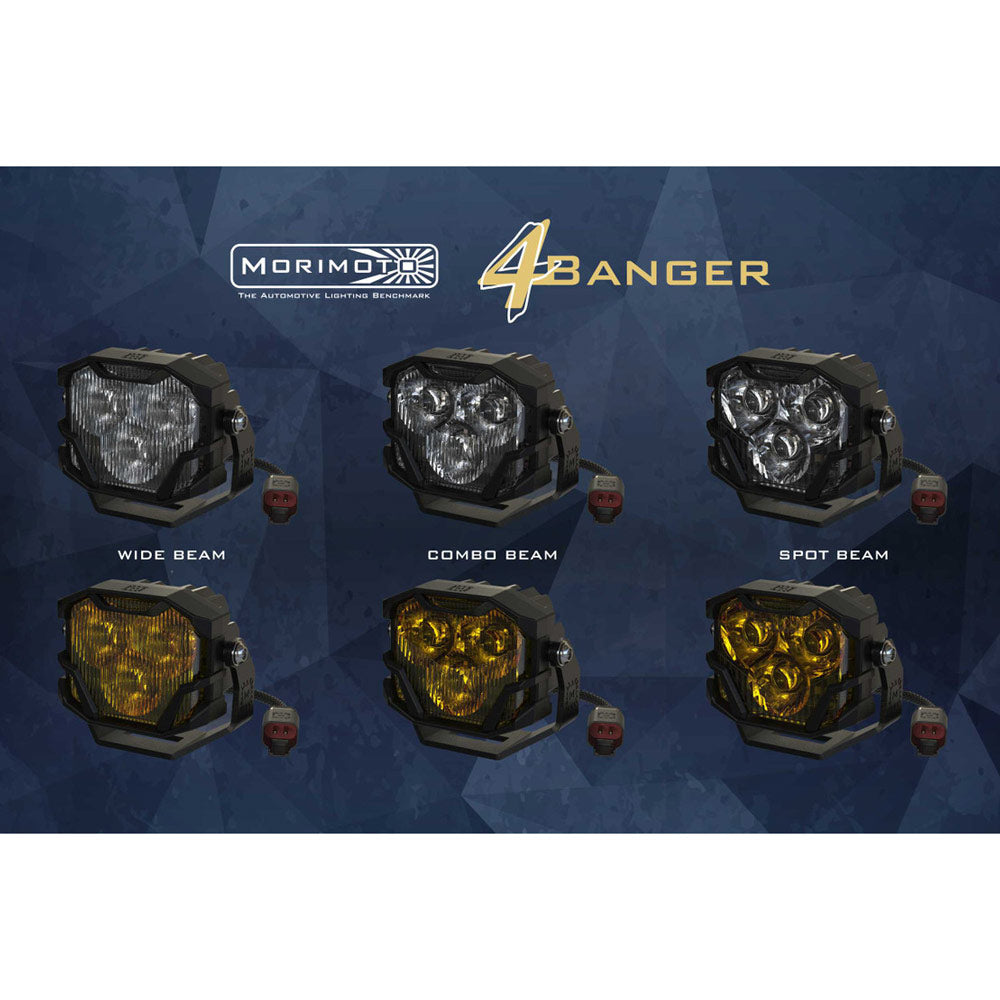

- LED pods: 2x (one pair) Morimoto 4Banger (optional color/beam).

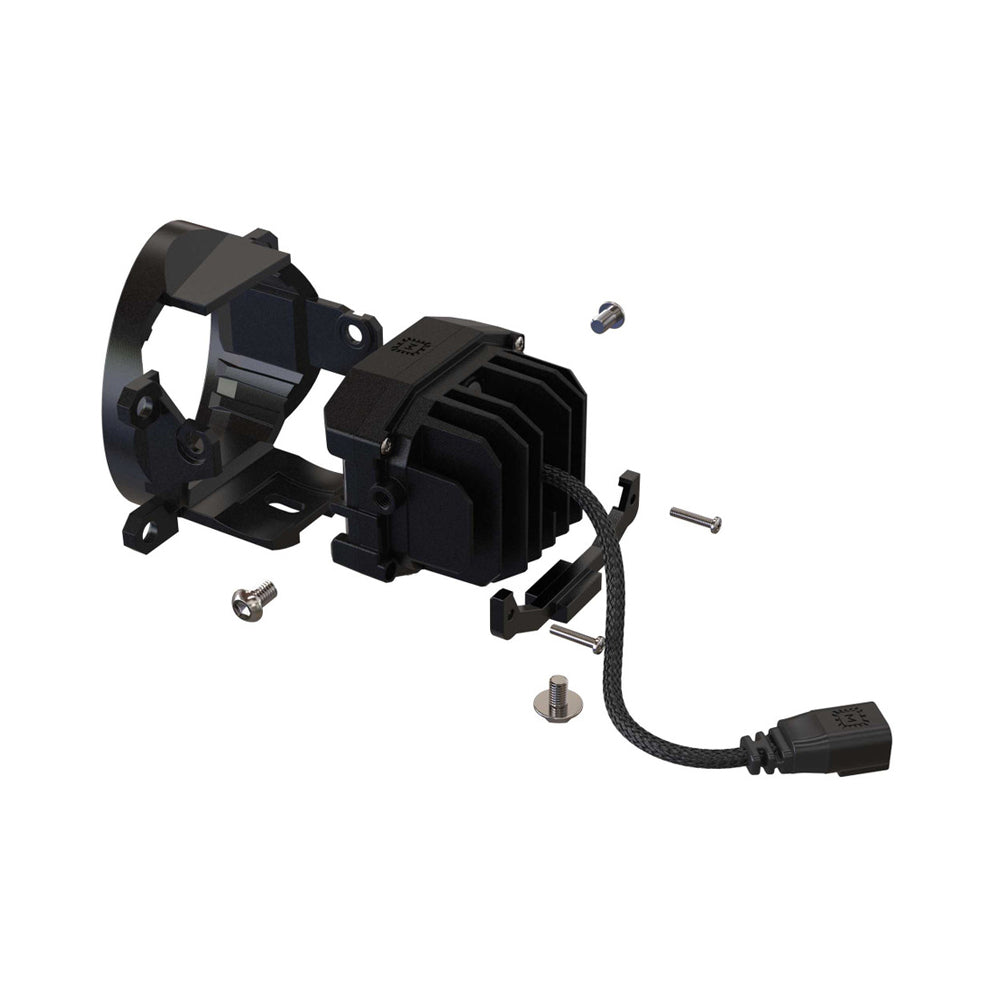

- Hardware: Complete pack (stainless steel).
- Wiring: Plug n play connection kit.
Compatibility:
- Toyota 4Runner: 2010-2021
-
Toyota Tacoma: 2012-2021
- Toyota Tundra: 2014-2021
- Note: There are two standards for Toyota fog lights with slightly different spacing between the mounting points. These will work with both, but may be a tight fit if your Toyota uses the "wider" spacing.
- Compliance: Wide beam photometrics are SAE F 20 compliant.
Tech specs:

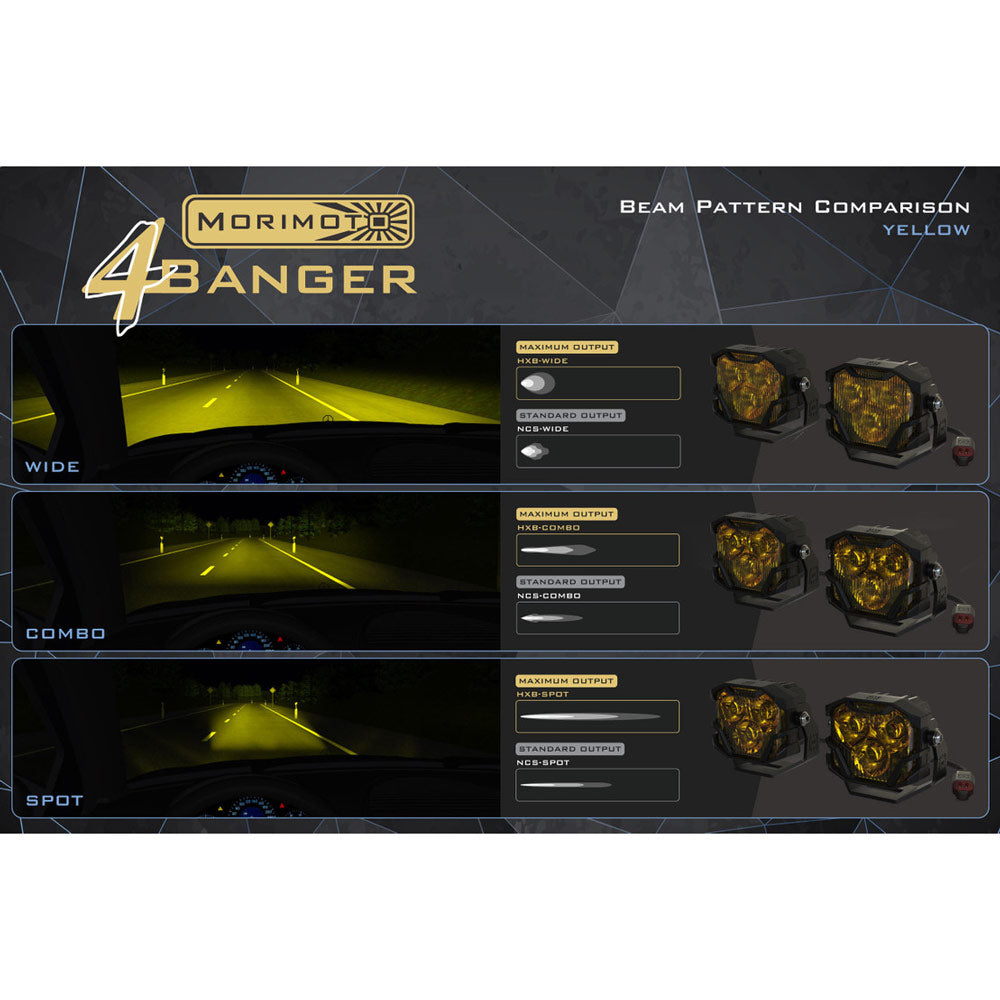

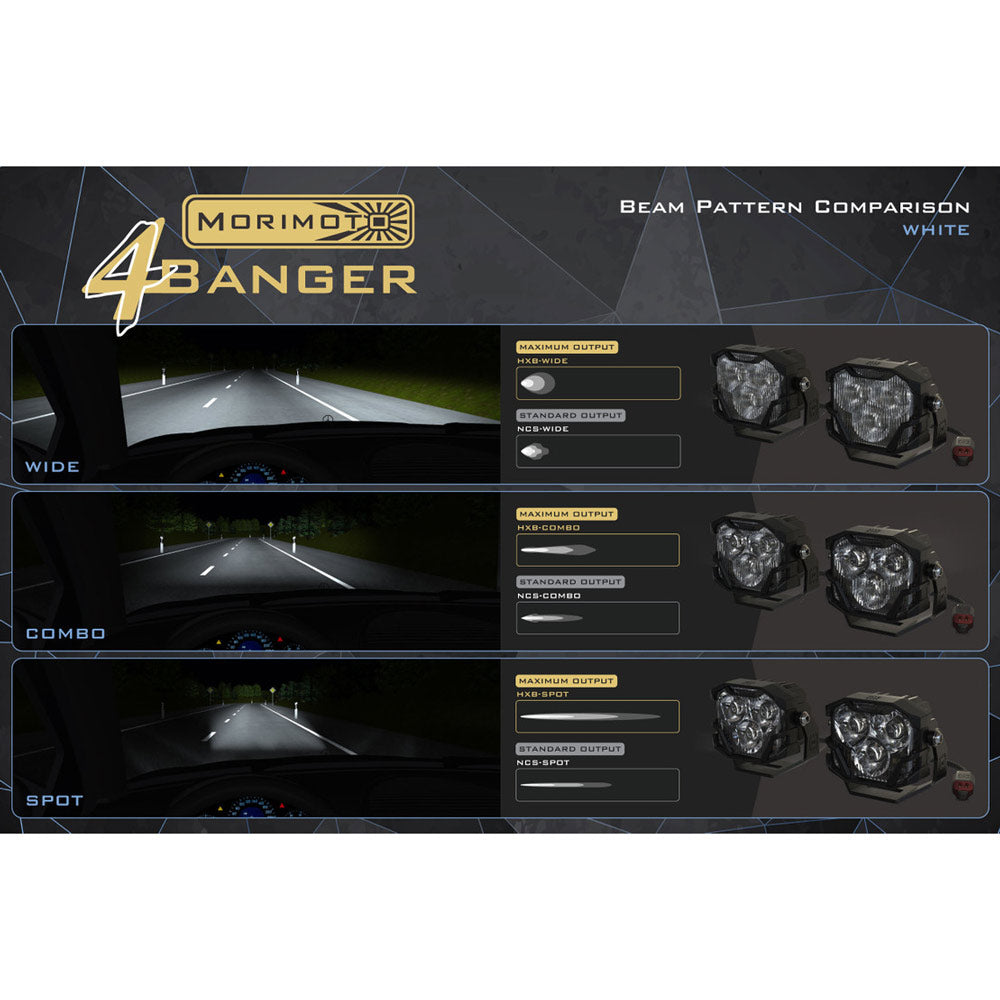

- NCS wide yellow: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m).
- NCS wide white: 14,400 Cd (Post Warm-Up) (144lux @ 10m).
- NCS combo yellow: 38,850 Cd (Post Warm-Up) (384lux @ 10m).
- NCS combo white: 55,500 Cd (Post Warm-Up) (555lux @ 10m).
- NCS spot yellow: 73,500 Cd (Post Warm-Up) (735lux @ 10m).
- NCS spot white: 105,000 Cd (Post Warm-Up) (1,005lux @ 10m).
- HXB wide yellow: 14,700 Cd (@20 Min / 21C Ambient) (147lux @ 10m).
- HXB wide white: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m).
- HXB combo yellow: 54,600 Cd (@20 Min / 21C Ambient) (546lux @ 10m).
- HXB combo white: 78,000 Cd (@20 Min / 21C Ambient) (780lux @ 10m).
- HXB spot yellow: 119,000 Cd (@20 Min / 21C Ambient) (1190lux @ 10m).
- HXB spot white: 170,000 Cd (@20 Min / 21C Ambient) (1,700lux @ 10m).
- Input voltage: 9-18V DC.
- Power: 15.6w (NCS) 42w (HXB).
- Current: 1.5A (NCS) or 3.2A (HXB).
- Dimensions: 82mm W, 67mm H, 60mm D.

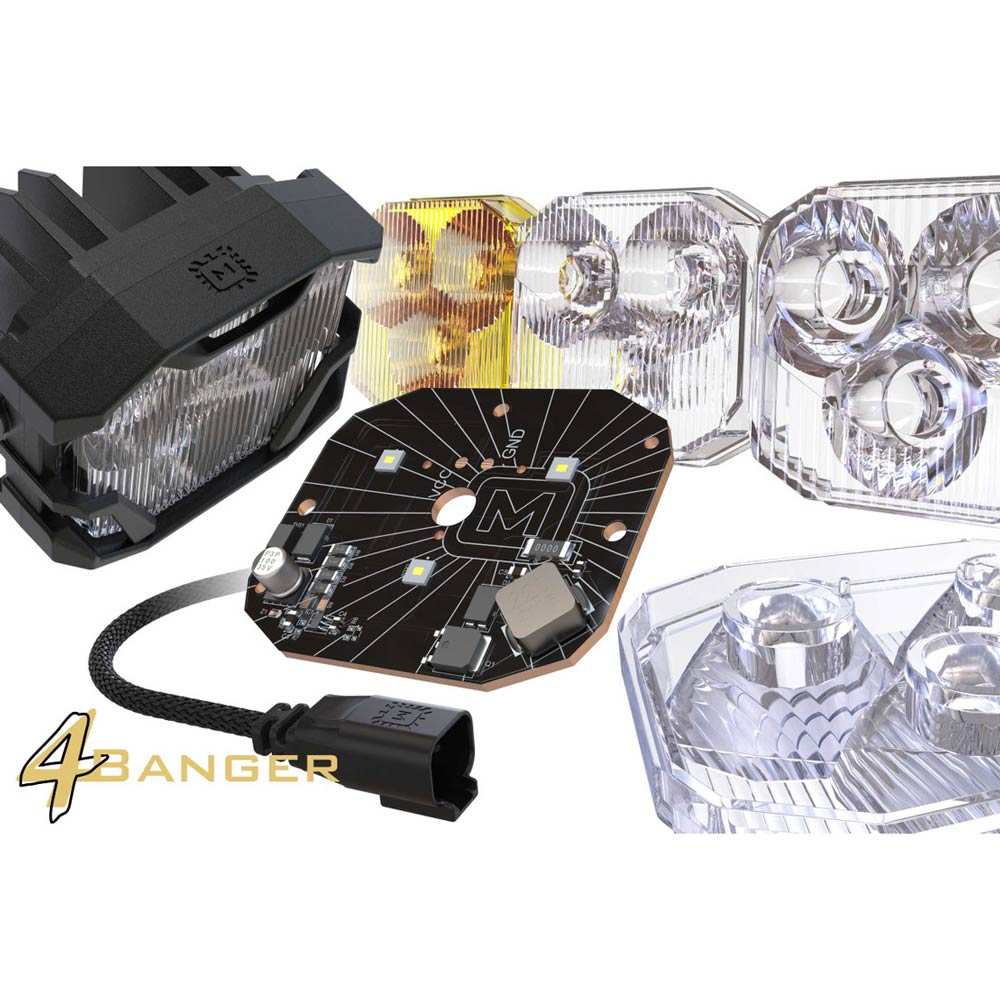

- Light source: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost.
- Input: Proprietary overmolded Deutsch DT 2-pin with pigtail.
- Material: Makrolon LED PC (lens), powder coated die cast aluminum (housing).
- IP rating: IP69K (dust/high pressure water resistant).
