Description
What's included:

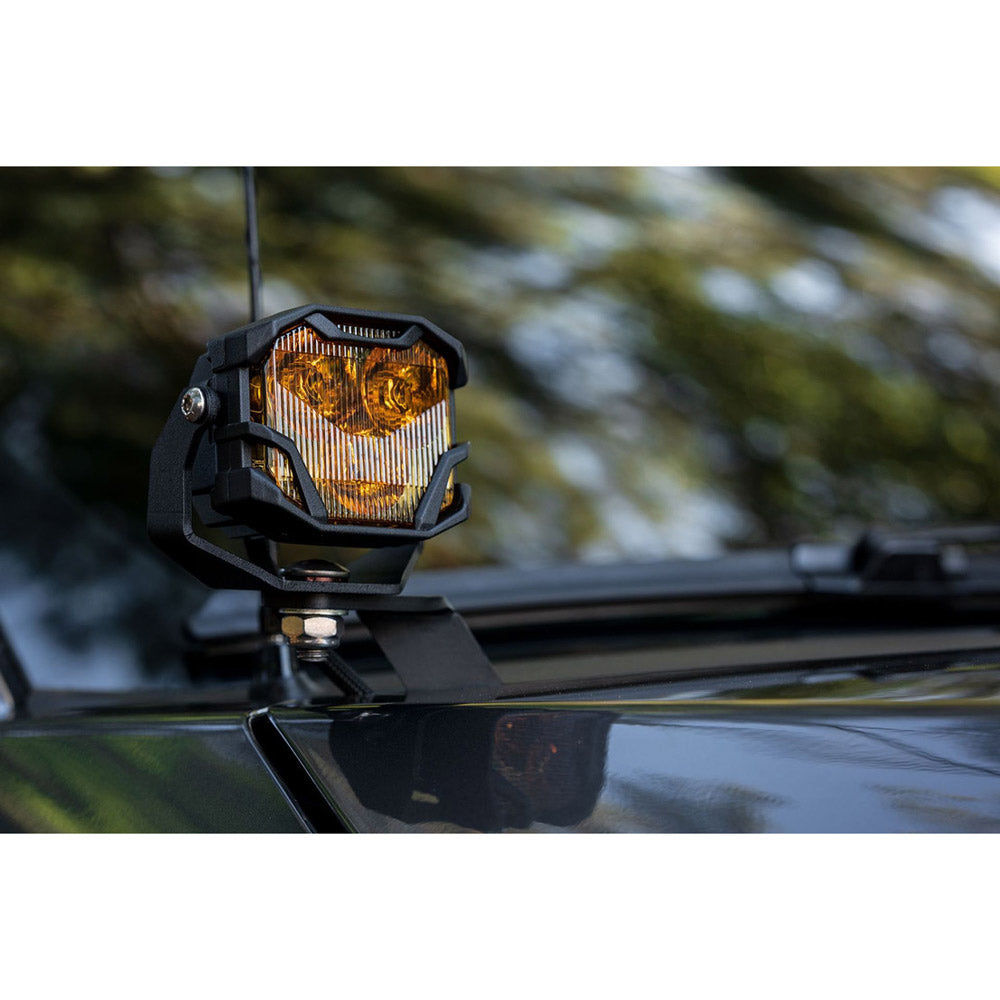

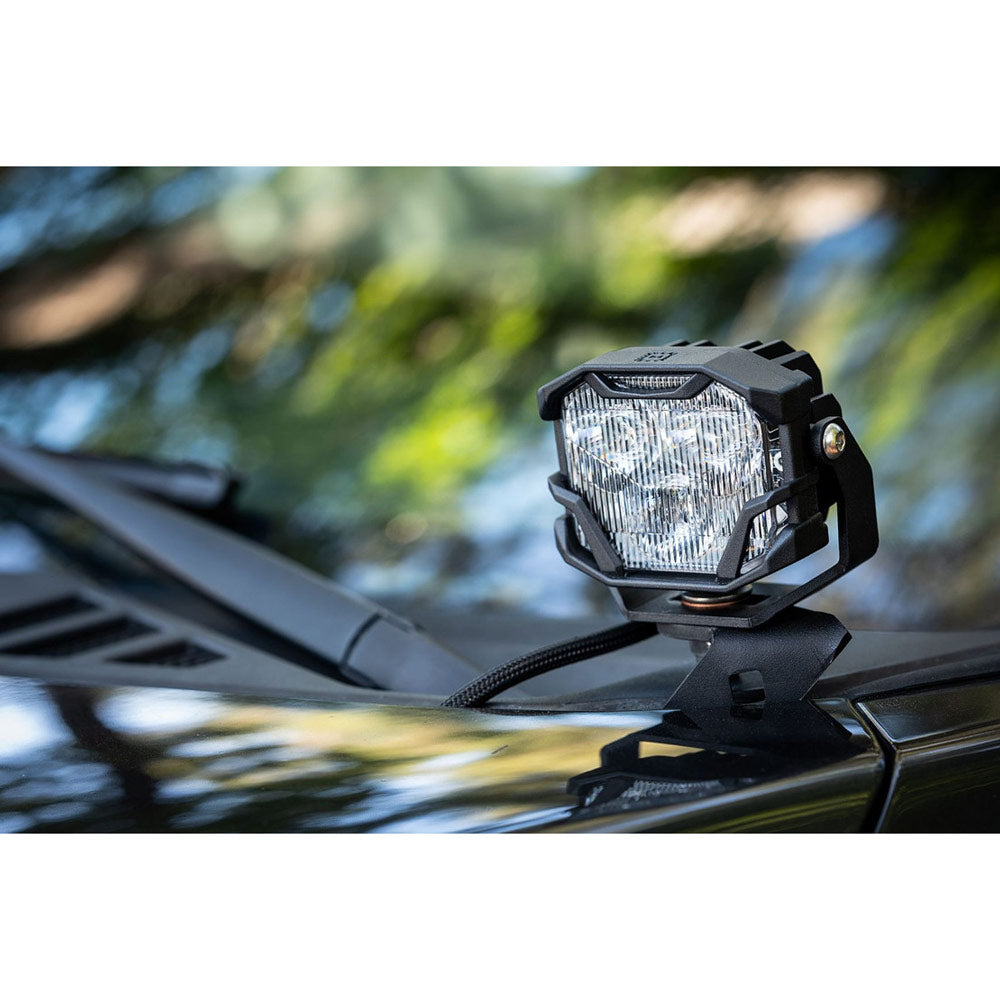

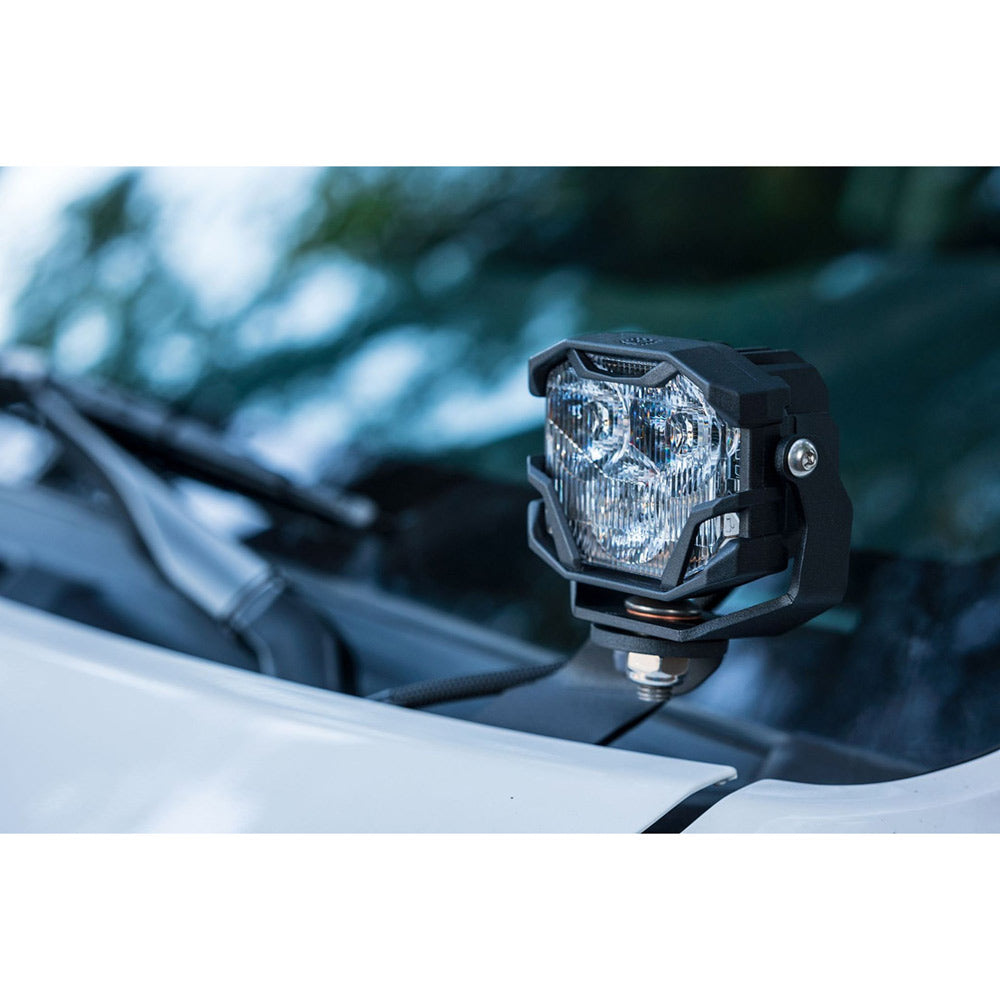

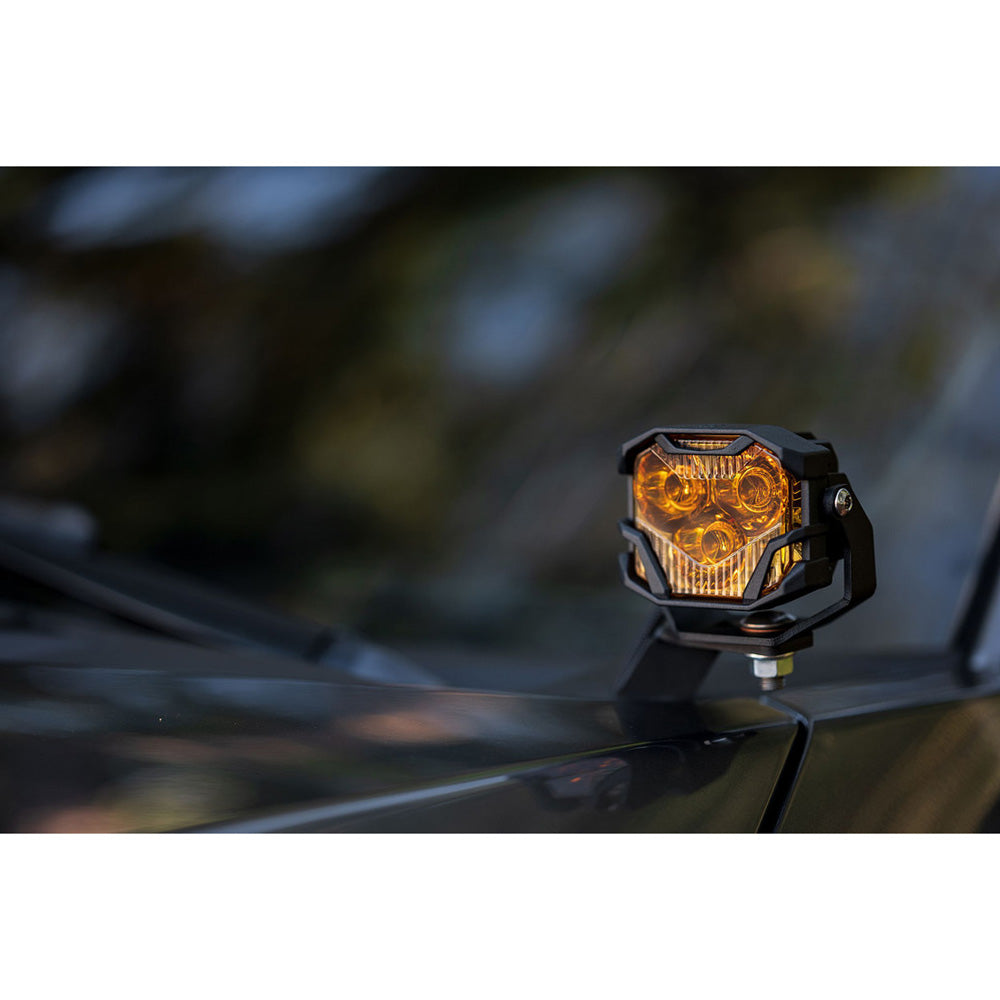

- LED pods: 2x (one pair) Morimoto 4Banger HXB spot (white or yellow).
- Brackets: 2x (one pair) universal u-shape mounts.
- Hardware: Complete pack (stainless steel).

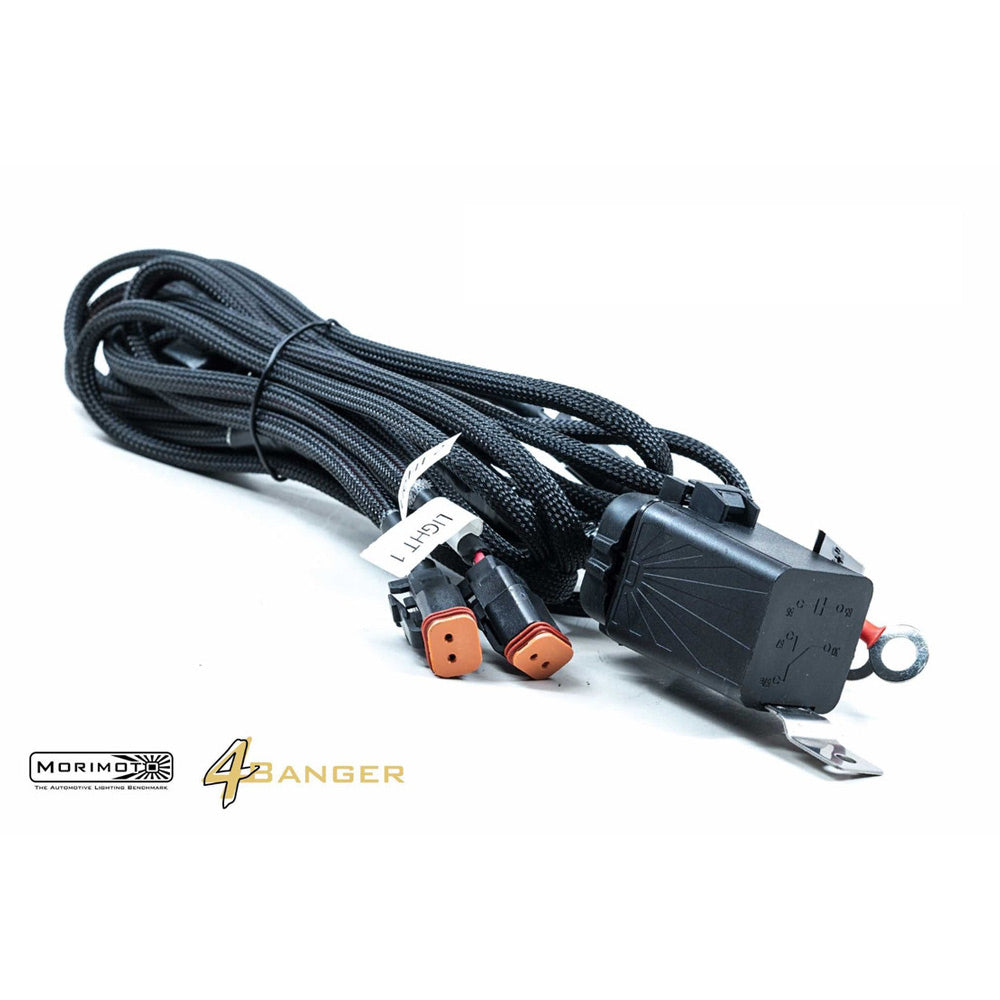

- Optional wiring: 1x Morimoto 4Banger switched relay harness or DT connectors.
Compatibility:
- Universal: With included u brackets.
- Lexus GX470 2003-2009 with BAF042.
- 4Runner: 2010+ with BAF014 and BAF027.
- Tacoma: 2005-2013 with BAF019 and BAF029.
- Tacoma: 2014-2021 with BAF014 and BAF028.
- Tundra: 2007-2013 with BAF019 and BAF030.
- Tundra: 2014-2021 with BAF014 and BAF026.
- Compliance: Wide beam photometrics are SAE F 20 compliant.
Tech specs:
- Intensity (white): 170,000 Cd (@20 Min / 21C Ambient) (1,700lux @ 10m).
- Intensity (yellow): 119,000 Cd (@20 Min / 21C Ambient) (1190lux @ 10m).

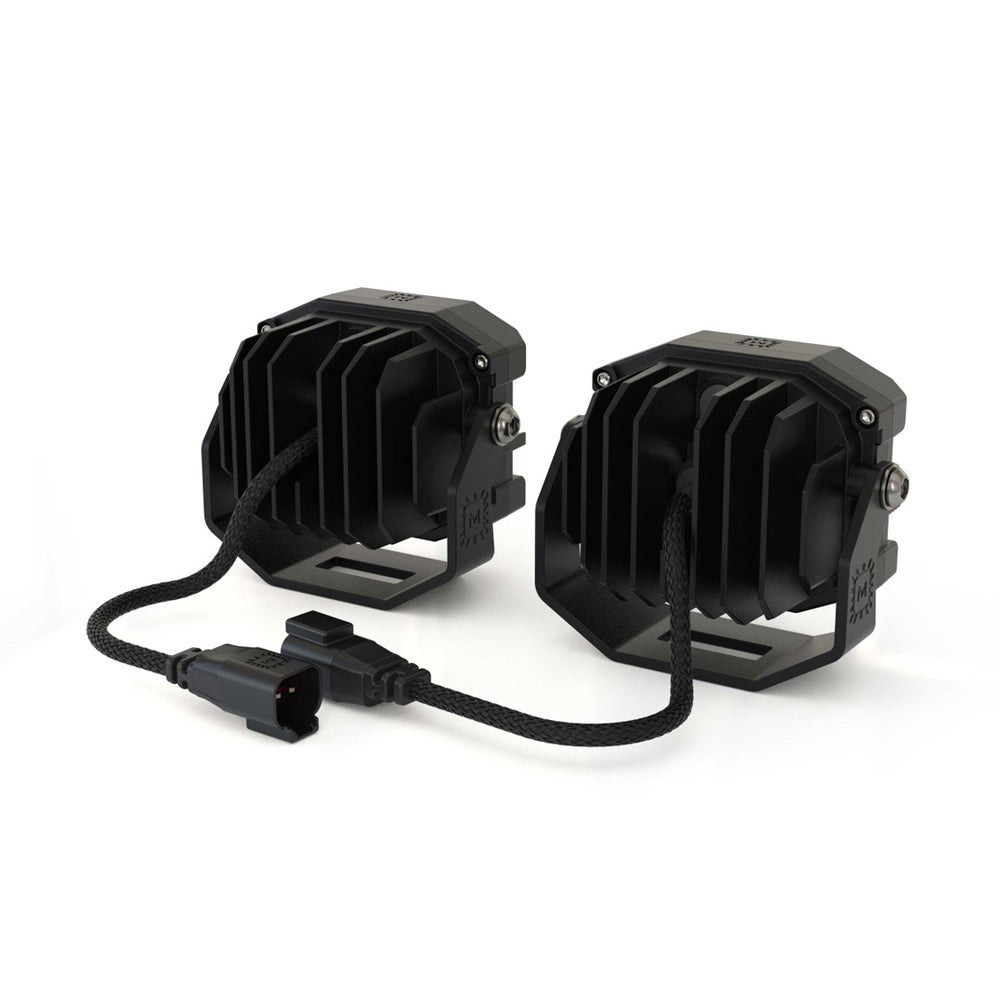

- Input: Proprietary overmolded Deutsch DT 2-pin with pigtail.
- Input voltage: 9-18V DC.
- Power (stabilized): 42w.
- Current: 3.2A @ 13.2V DC.
- Peak luminosity (lm) (raw): 3,000lm.
- Dimensions: 82mm W, 67mm H, 60mm D.
- Hardware: M6 x 1.0 x 8mm (4Banger to u-bracket), M10 x 1.5 x 20mm (u-bracket base).

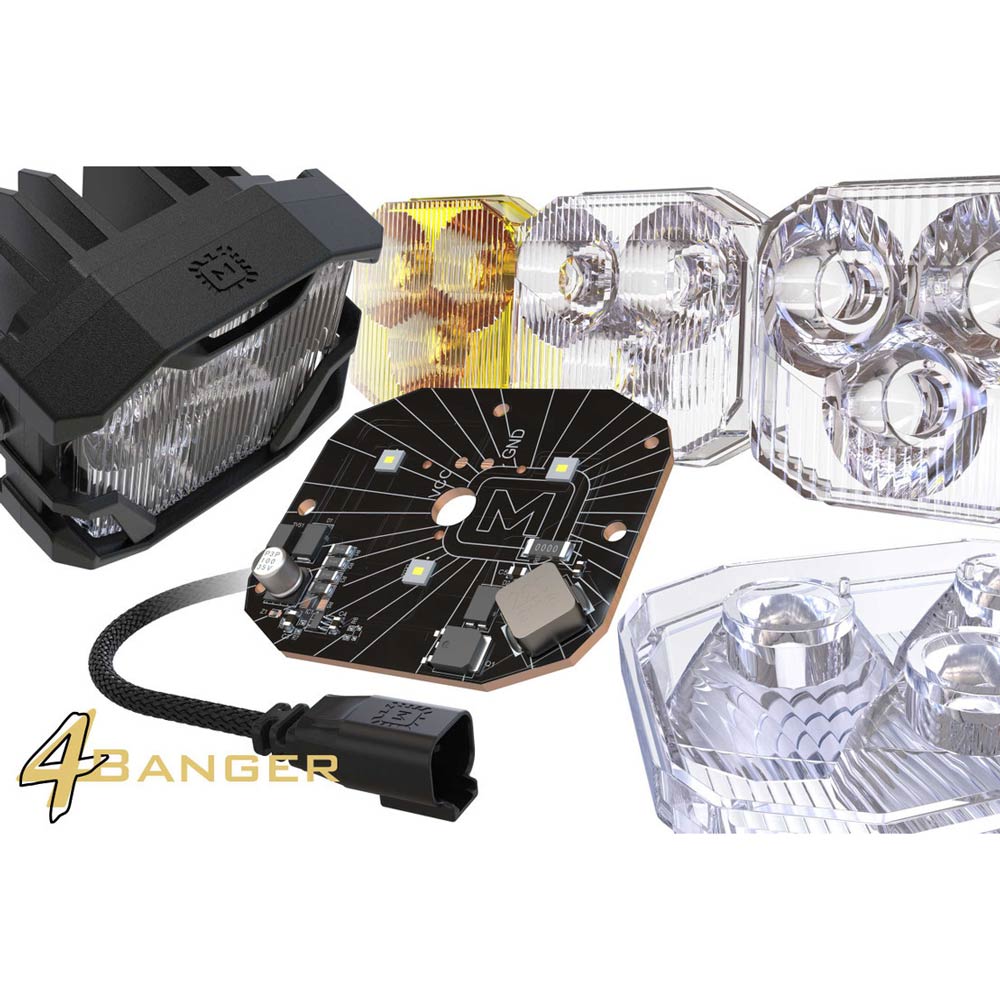

- Light source: 3x Osram HX boost (5700K).

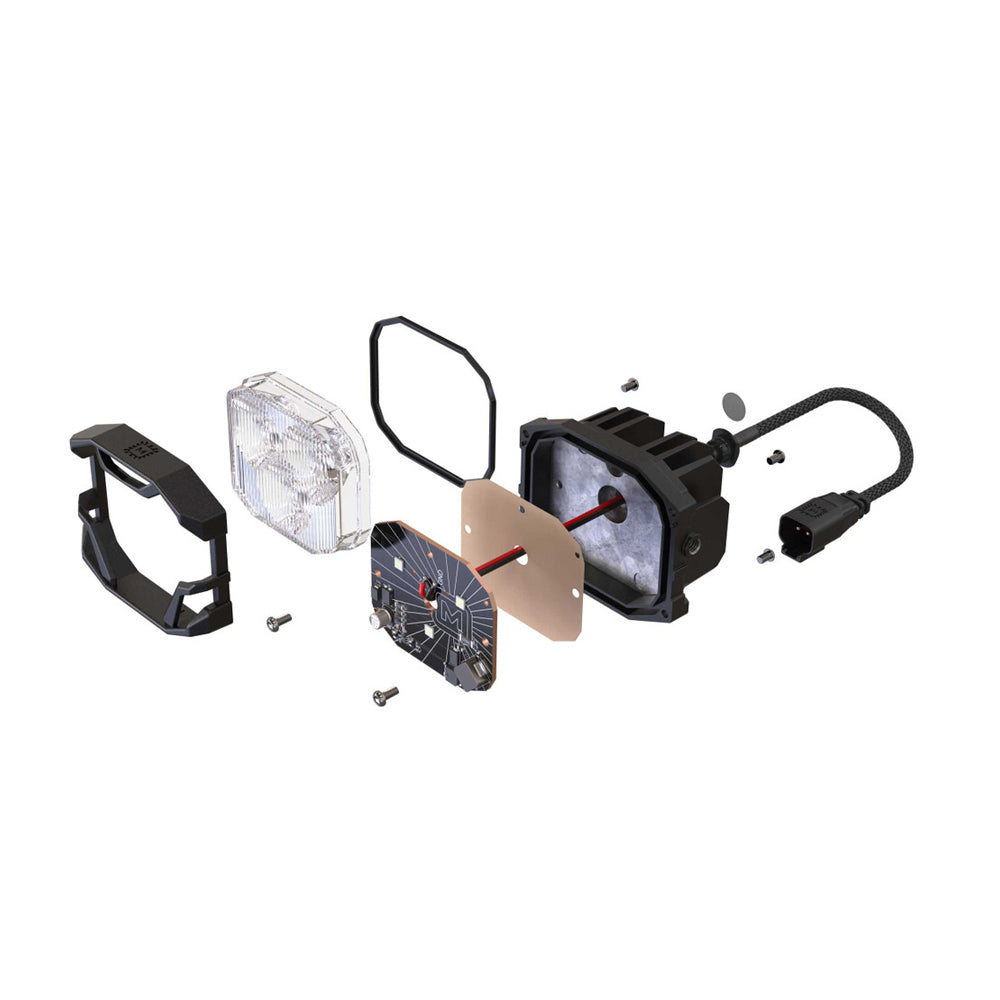

- Material: Makrolon LED PC (lens), powder coated die cast aluminum (housing).
- IP rating: IP69K (dust/high pressure water resistant).
