Description
This Accessory Bundle does NOT include the Garmin Powerswitch OR the Powerswitch PowerTray Mount. Those are separate products. This bundle is for everything else you'll need to cleanly install this system in your Toyota.
You have three options for providing power to the PowerSwitch:
Our Power and ground cables are all made in-house using USA made welding wire, tin-plated copper battery lugs, wrapped in braided protective sheathing and sealed with 3M marine-grade heat shrink.
1. Single MRBF Option: This option replaces the Powerswitch supplied power cable so all the cables for the whole system match. The replacement cable is also slightly longer which allows it to be routed nicely down and around the factory fuse box. A Single Marine Rated Battery Fuse (MRBF) holder is used for circuit protection.
This option includes the following:
- Single MRBF terminal fuse holder
- 100A Marine Rated Battery Fuse (Circuit Protection for Powerswitch)
- Premium USA Made Power Cables
- 26" Length 4 Gauge Power Cable (100A MRBF to Powerswitch)
- Premium USA Made Ground Cables
- 16" Length 4 Gauge Ground Cable (Busbar to Fender Ground)
- Blue Sea 2300 10 Screw Common Busbar
- Molex PermaSeal Ring Terminals (3 22-18GA, 4 16-14GA, 3 10-12GA)
2. Single CB Option: This option utilizes a circuit breaker as opposed to the terminal mount MRBF's. Circuit breakers provide the same protection as the MRBF's, with the added benefit of being resettable if the current exceeds the max rating. These circuit breakers also have a manual trip button to cut power to the system for when you’re working on it and wiring up new accessories. Note: The circuit breakers can be mounted to the top of your factory fuse block cover with 3M double sided VHB tape if you don't want to drill any holes.
This option includes the following:
- 100A surface mount CB
- 2 Premium USA Made Power Cables
- 21" Length 4 Gauge Power Cable (Battery to 100A CB)
- 30" Length 4 Gauge Power Cable (100A CB to Powerswitch)
- Premium USA Made Ground Cables
- 16" Length 4 Gauge Ground Cable (Busbar to Fender Ground)
- Blue Sea 2300 10 Screw Common Busbar
- Molex PermaSeal Ring Terminals (3 22-18GA, 4 16-14GA, 3 10-12GA)

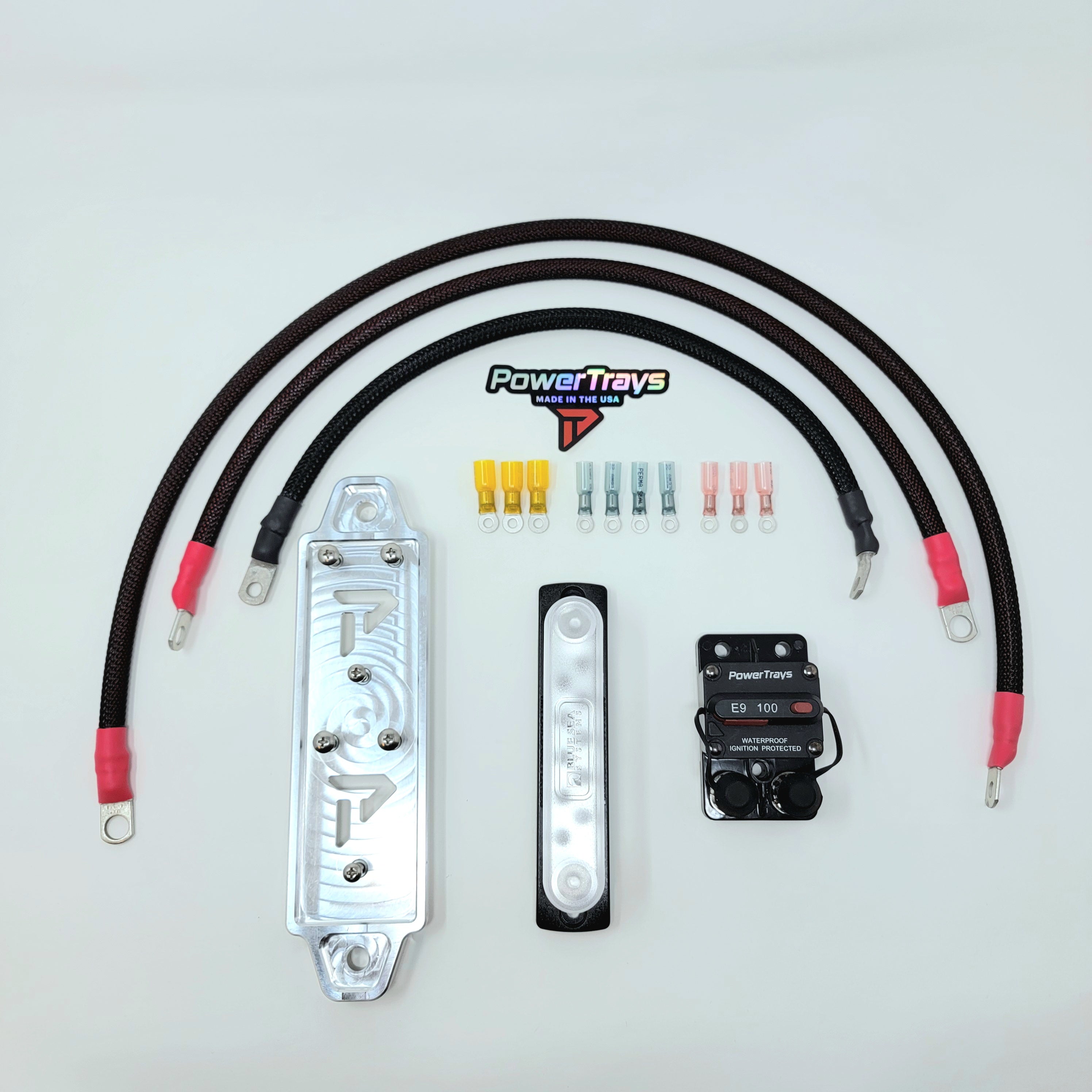

3. Single CB w/ Battery Tiedown Option: This option includes our CNC machined aluminum tie-down to mount the Circuit breaker to instead of the having to mount them on top of the factory fuse cover. Does not work with OEM lead-acid batteries due to the vents on top of the battery. Requires aftermarket battery with a flat top.
This option includes the following:
- CNC Machined Aluminum Tie-down
- 100A surface mount CB
- 2 Premium USA Made Power Cables
- 21" Length 4 Gauge Power Cable (Battery to 100A CB)
- 30" Length 4 Gauge Power Cable (100A CB to Power Switch)
- Premium USA Made Ground Cables
- 16" Length 4 Gauge Ground Cable (Busbar to Fender Ground)
- Blue Sea 2300 10 Screw Common Busbar
- Molex PermaSeal Ring Terminals (3 22-18GA, 4 16-14GA, 3 10-12GA)
Low-Profile Mini fuse taps: The Garmin Powerswitch includes two control inputs that detect a signal from 3.3-volt to 18-volt that can be used to turn on the customizable outputs. For example, you can connect your vehicle ignition switch to a control input terminal to turn on accessories automatically each time you start your vehicle. Our late model Toyota's use Low-Profile Mini fuses which are less common and harder to source at your local parts store.
