PowerTrays - PowerSwitch PowerTray > Tacoma > SR, SR5, TRD Sport, Limited

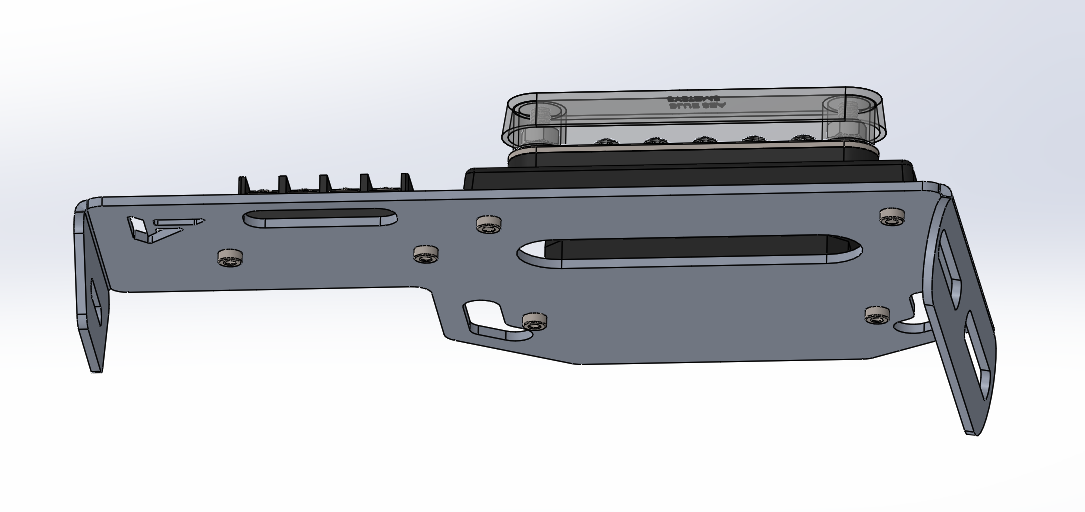

Take all the guess work out of wiring up a new accessory. The Original Powerswitch PowerTray creates the ultimate wire management solution for your PowerSwitch, while also providing a Blue Sea Systems 4 circuit fuse block for constant power and a ground bus bar. No more fiddling around with excess wires or scrambling to find a secure and reliable ground for each of your accessories. We've been there and done that and learned from our frustration.

With the Powerswitch PowerTray system installed, wiring up a new accessory is as easy as taking the positive and negative wires, crimping on some ring terminals, and simply attaching the positive to one of the 6 circuits on the Powerswitch unit and the negative to your common ground busbar. That's it, you're done!

The Original Powerswitch PowerTray also features the Blue Sea 4 circuit fuse block, which expands the system’s capacity by giving you the added ability to wire in accessories that would otherwise be inconvenient to power though your Powerswitch. For example, under hood lights and cargo lights can now have an external switch located right where you want it, no more running back into the cab to turn them on.

The addition of a fuse block is also great for accessories like front/rear mount cameras, aftermarket HID headlights, aftermarket Horns, air compressors etc. Accessories like this use the vehicles own factory wiring to activate the accessory, but due to the thin gauge of wire used for OEM applications most aftermarket parts like these need a more robust power source to draw from.

This product is for the Original Powerswitch PowerTray, Support Leg, and mounting hardware.

It does not include the Garmin Powerswitch, Blue Sea accessories, Power/Ground Cables, terminals/fuses etc. Click Here for those items.

2. Essentials PowerSwitch PowerTray:

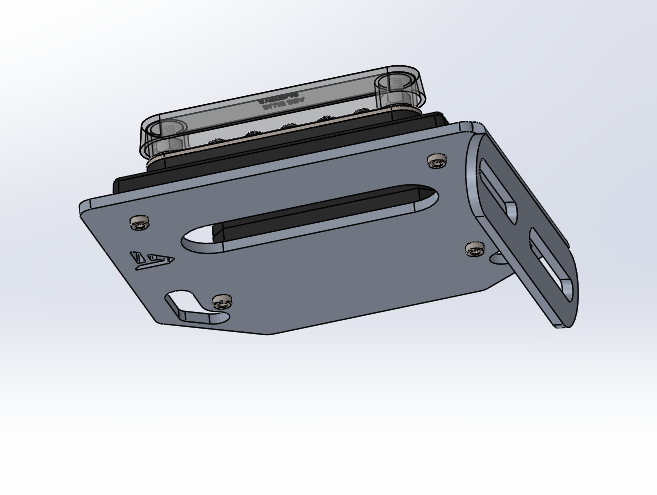

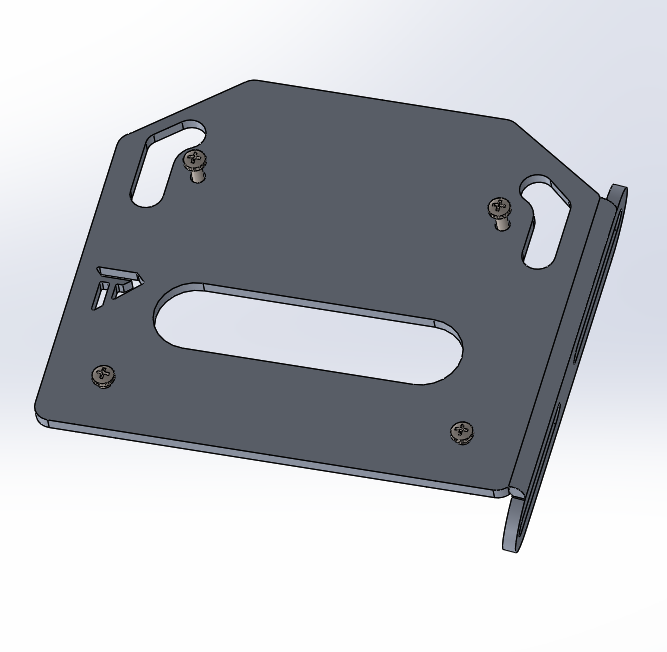

This option is the same as the Original PowerSwitch PowerTray seen above, minus the fuse block. Its a simple, compact solution to mount your PowerSwitch and busbar so you can keep your wiring clean and organized.

There is no support leg included with this tray since the mounting platform is smaller allowing for an easier and more cost effective install of your PowerSwitch.

This product is for the Essentials PowerSwitch PowerTray and mounting hardware.

It does not include the PowerSwitch, Blue Sea accessories, Power/Ground Cables, terminals/fuses etc. Click Here for those items.

Features:

• PEM® Fasteners with Stainless Steel Screws - Pressed into the bottom of the PowerTray, genuine PEM fasteners become a permanent feature of the tray so you never have to worry about losing a nut while adding mods to your rig. Also included is matching stainless steel hardware to mount those accessories to the tray.

• 1/8th Inch 5052 Aircraft Aluminum - Possibly a little overkill to use for mounting electrical accessories that tend to weigh in the ounces, not pounds. But with a weight coming in at 3X lighter than steel and corrosion resistance far superior to even stainless steel, aluminum is the clear choice for weathering the harsh conditions we put our vehicles though.
• Waterjet manufacturing - Guarantees precise cuts with an accuracy of ±0.003", which is why it is used globally in many industries for intricate designs and jobs which require high tolerances.
• Chamfered edges - This is the only step where we cut corners (hehe). To avoid sharp edges we chamfer all jagged edges and corners by hand with a specialized high-speed router bit. So you don't have to worry about cutting your hands or scratching your vehicles paint during installation. Also with a 45° chamfer on the edges you minimize the risk of vibration wearing though the protective sleeving on cables and wires which would short out the circuit.
• Perfect fit - The fender-side bend is bent an additional 10° to match the angle of the factory threaded M8 holes to ensure a level mounting surface.
• Unparalleled stability - Utilizing three points of contact, you can be sure that your valuable electronics are safe and supported by including an additional support leg that secures the far-side of the tray to the lower inner fender.
• High Quality JIS Class 10.9 Steel Hardware - Your entire Toyota is built with JIS (Japanese industrial standard) hardware so why should your aftermarket parts be any different.
• Power Made Easy - Delivered right to your door with step-by-step installation instructions.

This PowerTray will fit 2nd and 3rd GEN Toyota Tacoma's (05-Current) with the following requirements:

• Vacuum Booster Braking
• this includes SR, SR5, TRD Sport and Limited models. These models feature a traditional vacuum booster as opposed to being electronically assisted like in the TRD Off Road models. Note: Regardless of any bedside stickers or options your Tacoma may have, double check that you have the vacuum booster behind the master cylinder. CLICK HERE   to see a pic of both.

• Automatic Transmissions or Manual transmissions that DO NOT have the fender-mounted clutch fluid reservoir.
• Unfortunately PowerTrays will not work with the fender-mounted clutch fluid reservoir (which include the majority of Tacoma's prior to 2020) due to the reservoir being mounted in the same location the PowerTray installs.
• So IF your Tacoma has a   manual transmission AND has this reservoir bolted to the inner fender, then shoot us an email with pictures of the reservoir and please include vehicle info like year, make, and model of your Tacoma so we can go over options for relocating the reservoir.  Sales@Powertrays.com

Special Considerations:

• Aftermarket Hood Struts: If you have or plan to install aftermarket hood struts, The PowerTray will need spaced out approximately 1/2 inch so the hood strut clears the Switch-Pros power module.  CLICK HERE for the spacer kit.
• Superchargers: Unfortunately most supercharged Tacomas have an Air To Water reservoir mounted in the same area the PowerTray is designed to install. So you would need to either relocate that reservoir or you could purchase the Standoff version of this tray and mount it on top of the Factory fuse block lid. CLICK HERE to see pic of the Standoff PowerTray Mounted with the reservoir.

*If you see something say something! If you notice any inaccurate info above let us know so we can update it. Sales@PowerTrays.com
