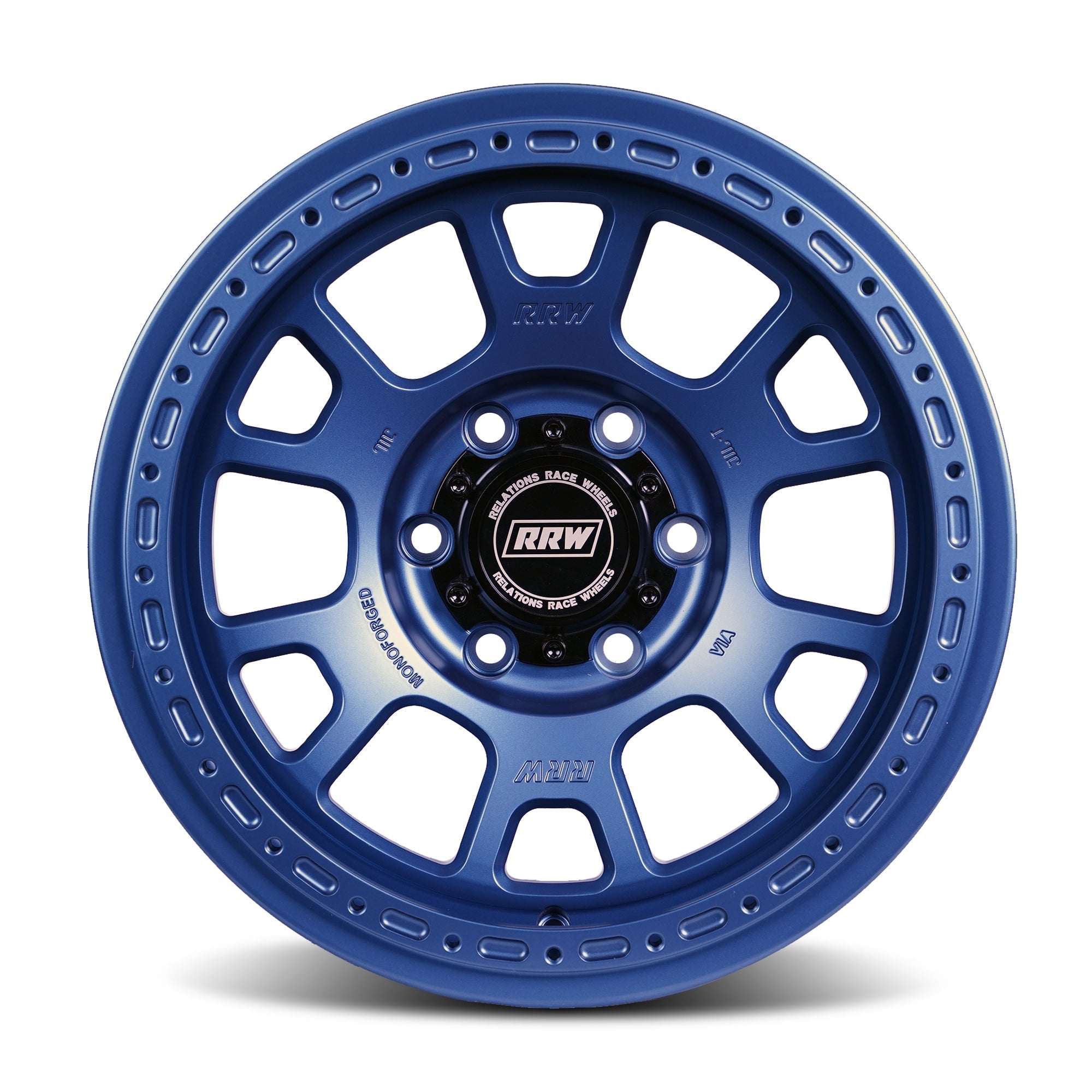

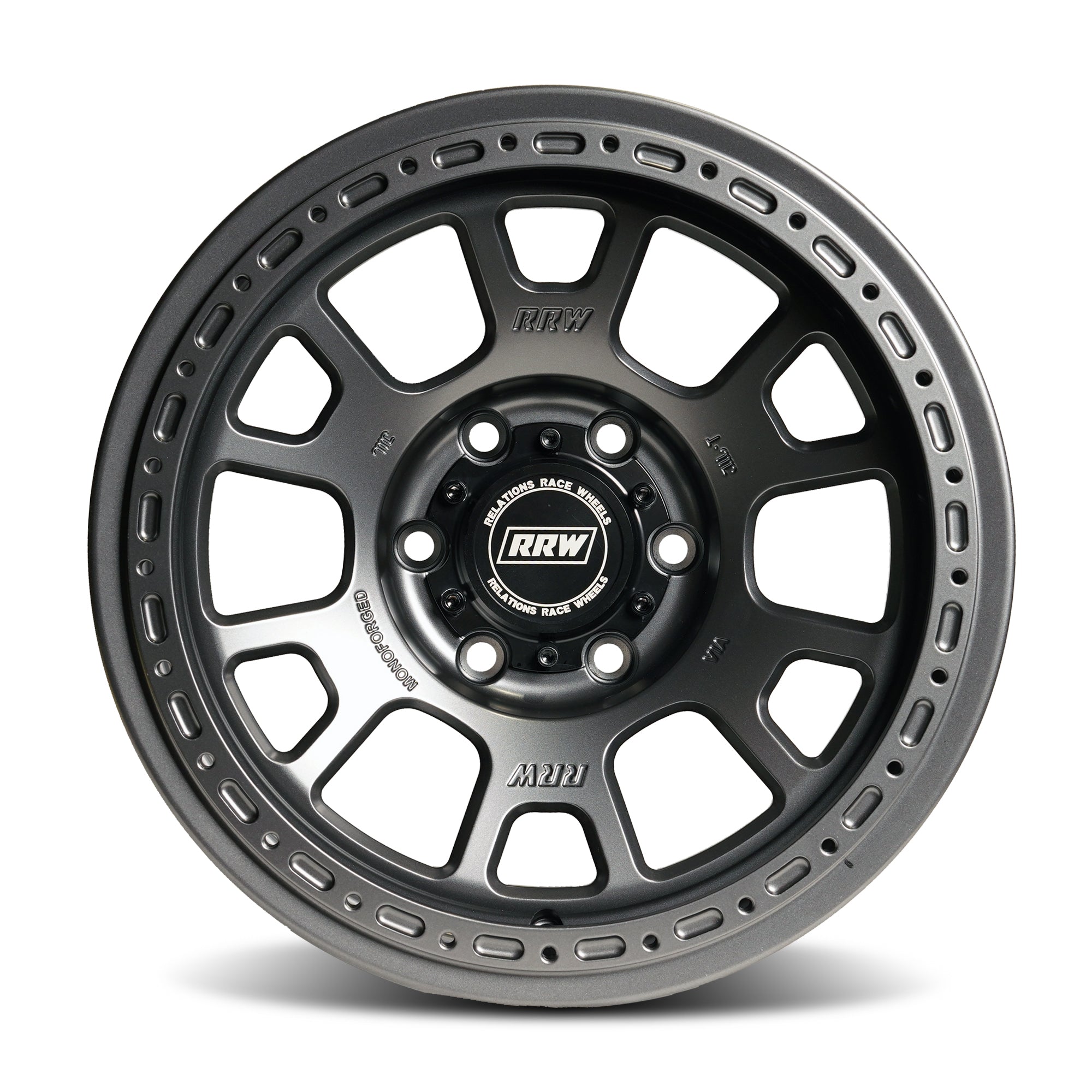

RRW - RS5-H Hybrid 17x8.5 MonoForged Wheel - Toyota Tacoma (2005-Current), 4Runner (2010-2023), FJ Cruiser (2007-2014), Tunda (2022+), Lexus GX470

Save 33%

Price:
Sale price$400.00 Regular price$600.00

Shipping calculated at checkout

Stock:
Only 1 unit left

Description

Price displayed is for 1 (ONE) wheel.

The Monoforged Series symbolizes a new generation of off-road wheels, where new streamlined wheel designs are precision machined out of structural 6061-T6 aluminum alloy (commonly used in aerospace), then finished in the latest and greatest painting line technology. This is the Monoforged Series by RRW. (Manufacturing process video coming soon.)

Optimization & construction:

  • Each design is streamlined for maximum weight savings, such as large chamfers, milled-out pockets, anywhere possible without compromising structural integrity.
  • CNC machined from 6061-T6 billet forging, these wheels are lighter and stronger than ever compared to any cast counterpart. Period.

Premium paint:

  • Guaranteed - better than ever paint quality. These are the best wheels we’ve made to date.
  • Flawless precision machining. With our Monoforged series, it’s all about the fine details.

Lighter than ever:

  • About 15-20% lighter than their cast counterparts in the same model & size.
  • The -S in a 17x8.5 +0 offset is just right under 20 lbs (that’s designed to a 2500 load rating standard) - This could be the lightest off-road wheel currently on the market.
  • Engineered to a load rating of 2500 lbs per wheel. Enough to support any loaded ½ truck in the roughest conditions.
  • Now with deeper holes with more (50%) more thread engagement on the -H hybrid series. 25 tapped holes with a M8x1.25 thread pitch.
  • Billet CNC Aluminum center caps are included as standard option.
  • Compatible with our ET lug nuts for maximum thread engagement to wheel studs. Great especially since Toyotas are notorious for having short wheel studs.

Lead times & shipping: Orders will be shipped via Fedex Ground and will require signature.

Specifications:

  • Size: 17x8.5
  • Bolt pattern: 6x5.5/6x139.7
  • Center bore for 6x5.5 -12: 106.1 mm (hub-centric for Toyota trucks and GX)
  • Center bore for 6x5.5 +25: 95.3 mm (hub-centric for 24+ Tacoma, 22+ Tundra and GX550).
  • Load rating: 2500lbs.
  • Backspacing for +25 is 5.73", -12 is 4.28"
  • Includes billet aluminum center caps.
  • Compatible with TPMS.
  • Not compatible with OEM lug nuts. Conical lug nuts will need to be purchased to install wheels.

Features:

  • Deep stepped hybrid lip, compatible with the protection ring, billet protection ring or true beadlock ring.
  • Forged construction makes the wheels lighter but stronger than regular cast wheels.
  • Made from Forged 6061-T Aircraft Grade aluminum.
  • Superior paint finish.

Vehicle fitment:

  • 6x5.5: Tacoma (2023 and older), 4Runner, FJ  Cruiser, Lexus GX470.
    6x5.5 +25: Tacoma (4G 2024+), Tundra (3G 2022+).

Manufactured in a JWL/VIA Certified Facility and tested to meet and exceed OEM specifications.

Note: photos of all finishes will be added soon.
