Description
Price displayed is for 1 (ONE) wheel.

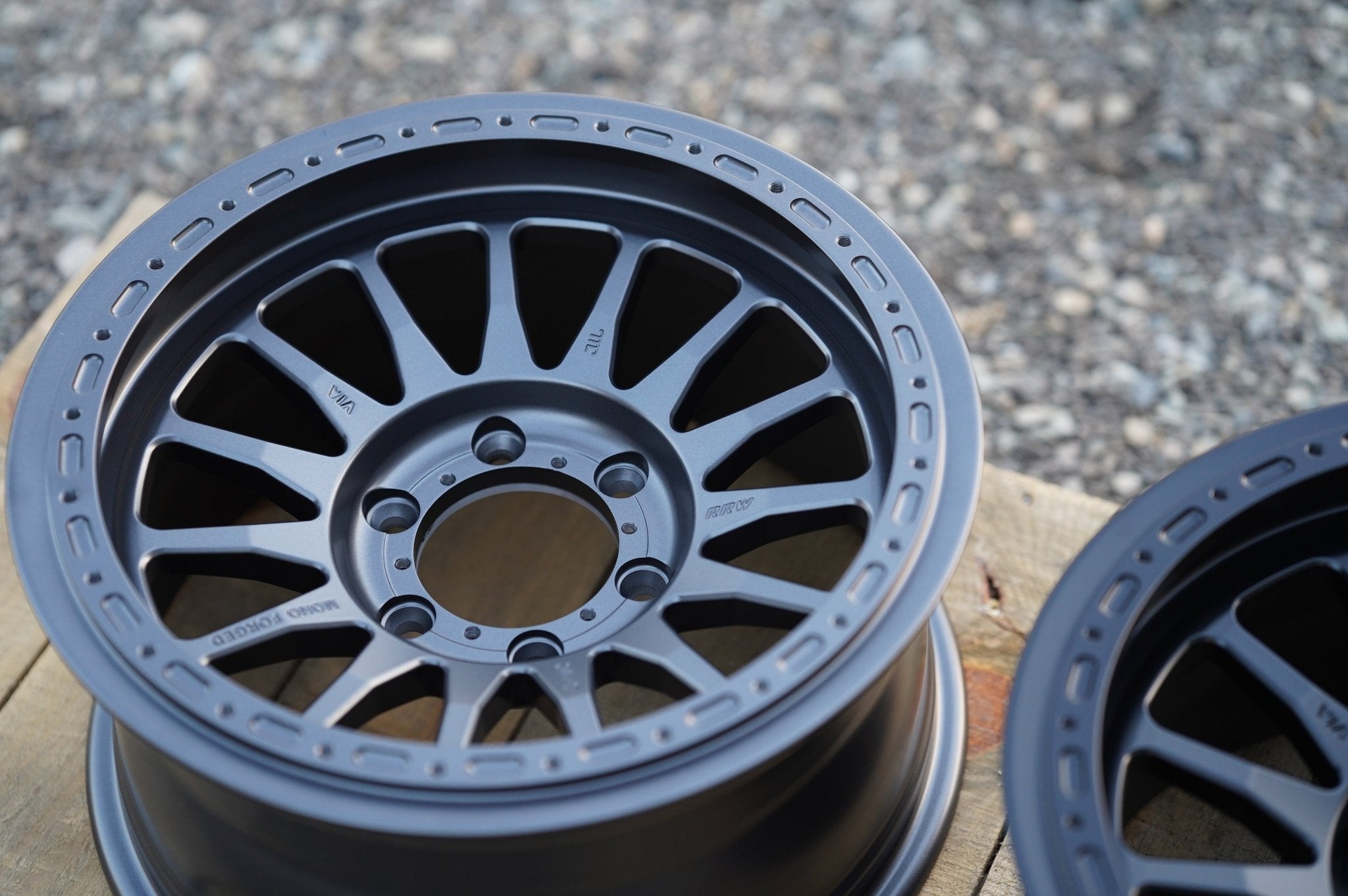

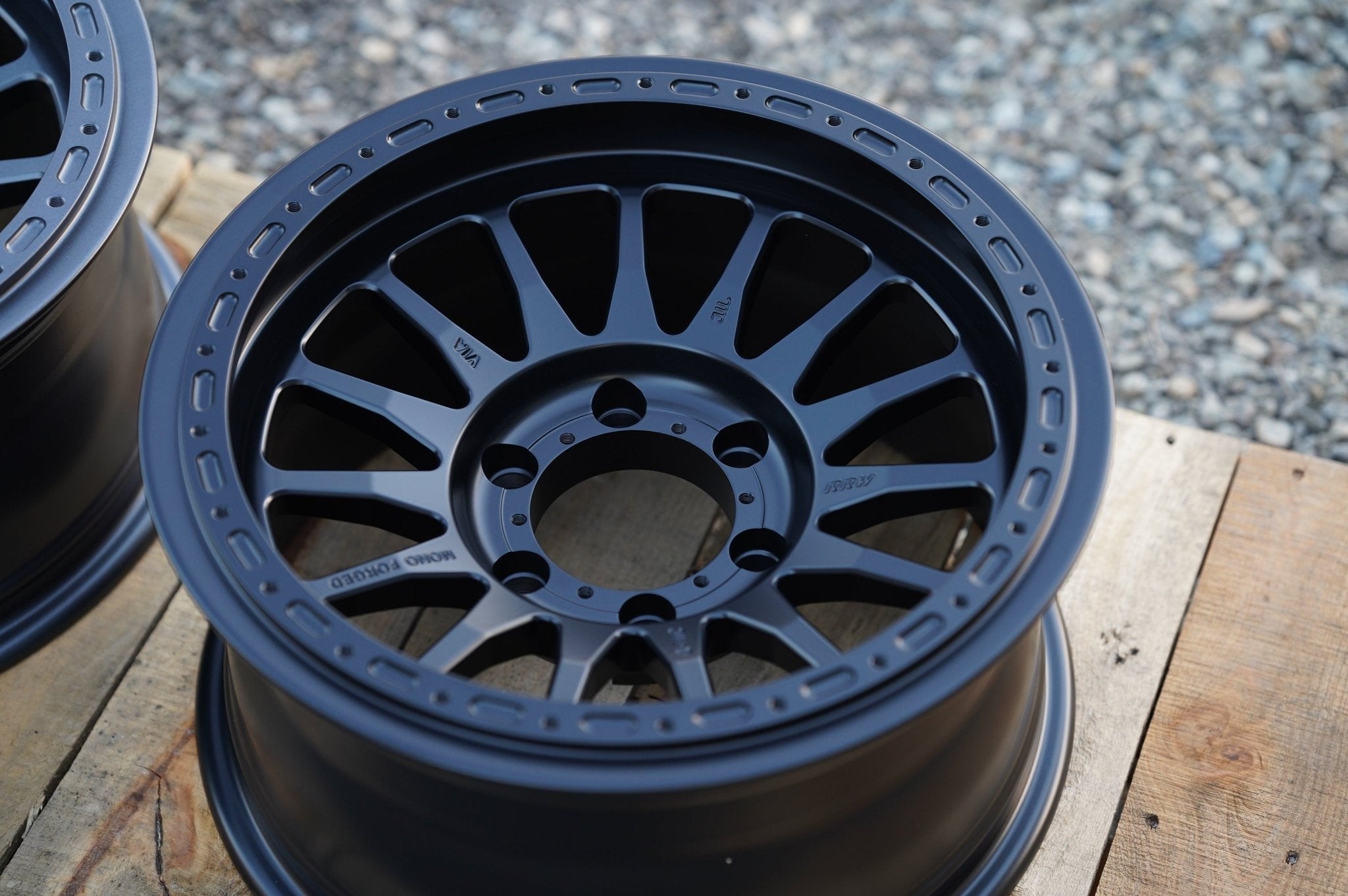

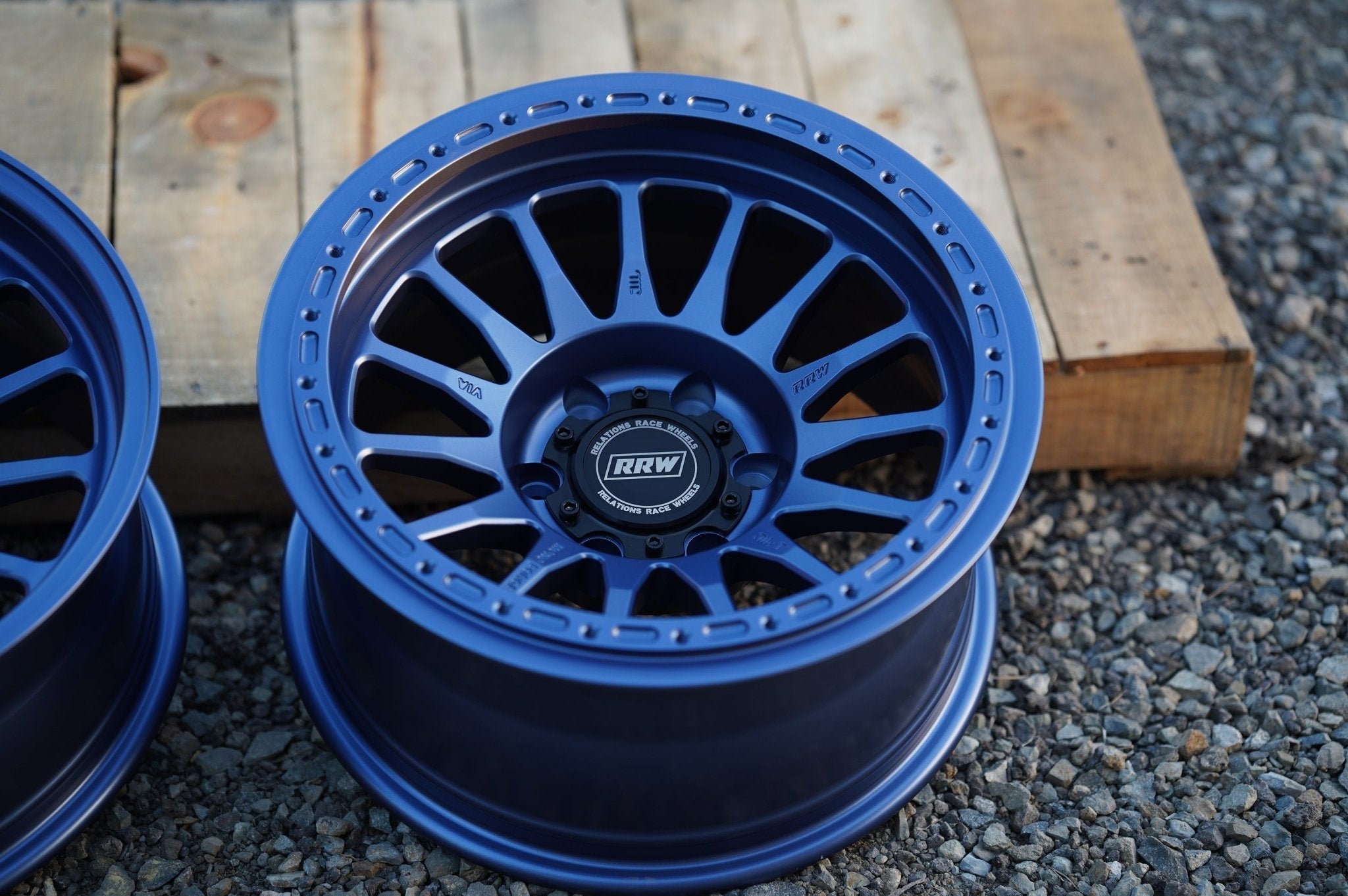

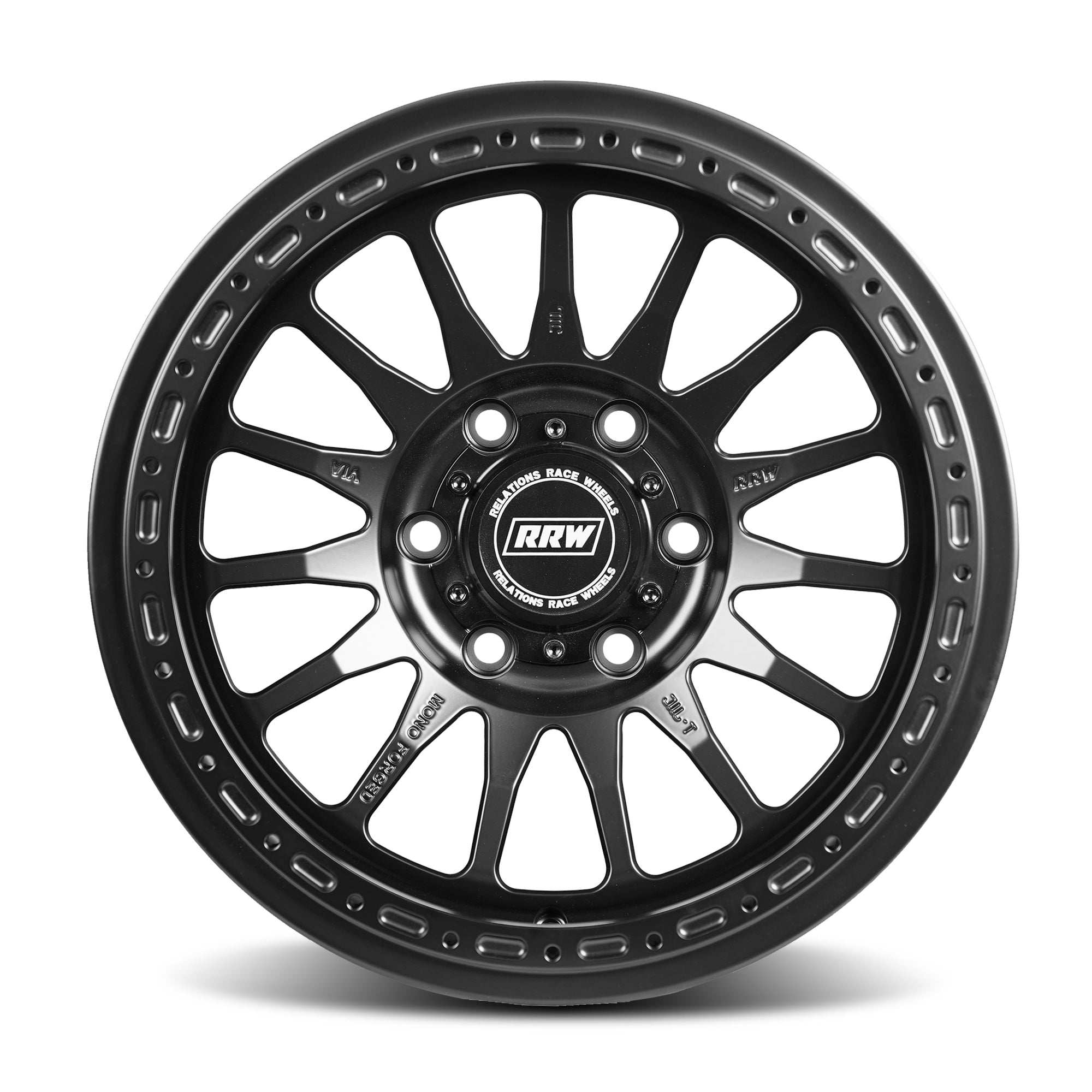

The Monoforged Series symbolizes a new generation of off-road wheels, where new streamlined wheel designs are precision machined out of structural 6061-T6 aluminum alloy (commonly used in aerospace), then finished in the latest and greatest painting line technology. This is the Monoforged Series by RRW. (Manufacturing process video coming soon.)
Optimization & construction:
-
Each design is streamlined for maximum weight savings, such as large chamfers, milled-out pockets, anywhere possible without compromising structural integrity.
- CNC machined from 6061-T6 billet forging, these wheels are lighter and stronger than ever compared to any cast counterpart. Period.
Premium paint:
-
Guaranteed - better than ever paint quality. These are the best wheels we’ve made to date.
- Flawless precision machining. With our Monoforged series, it’s all about the fine details.
Lighter than ever:
-
About 15-20% lighter than their cast counterparts in the same model & size.
-

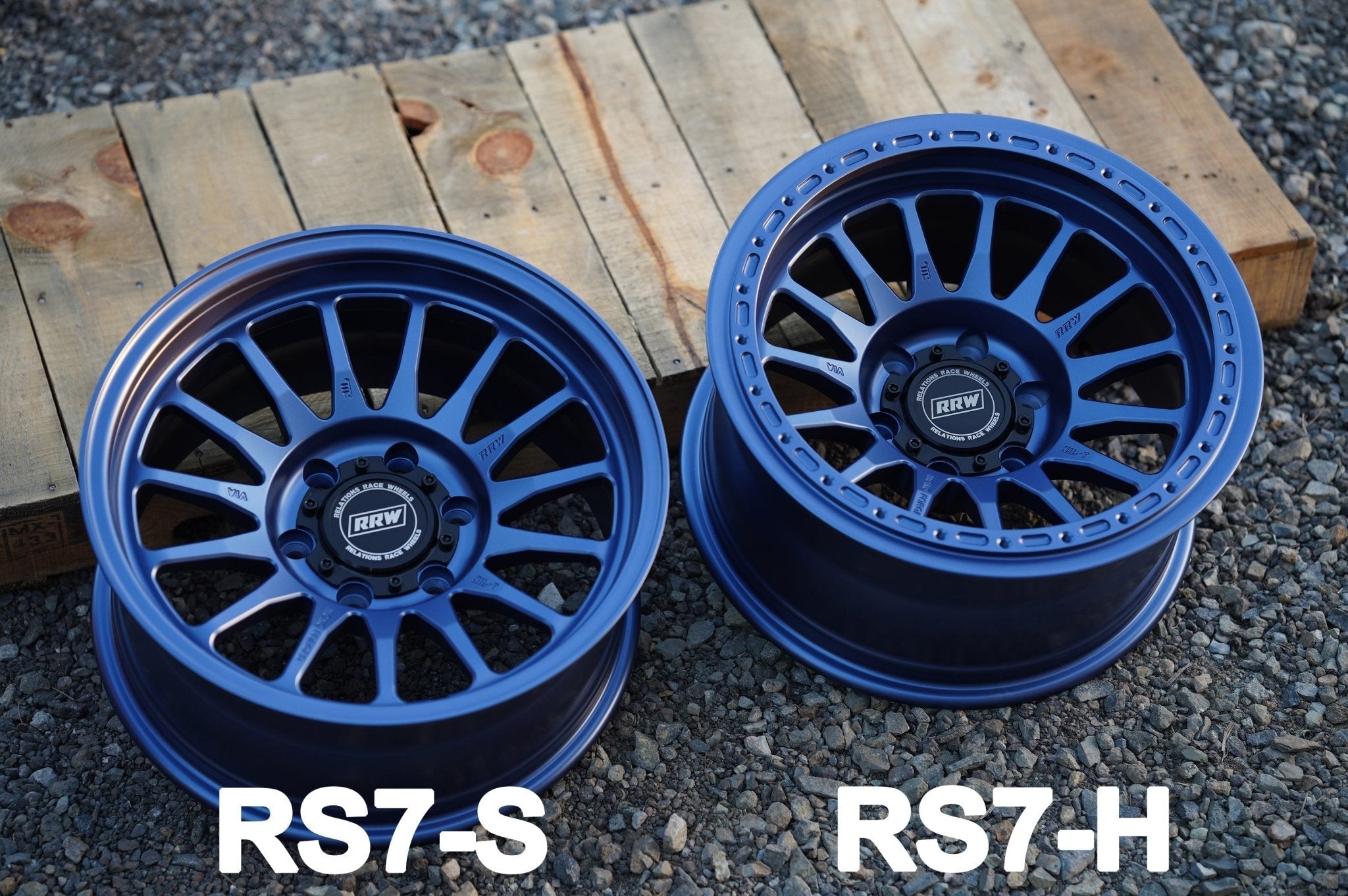

The -S in a 17x8.5 +0 offset is just right under 20 lbs (that’s designed to a 2500 load rating standard) - This could be the lightest off-road wheel currently on the market.
- Engineered to a load rating of 2500 lbs per wheel. Enough to support any loaded ½ truck in the roughest conditions.
-
Now with deeper holes with more (50%) more thread engagement on the -H hybrid series. 25 tapped holes with a M8x1.25 thread pitch.

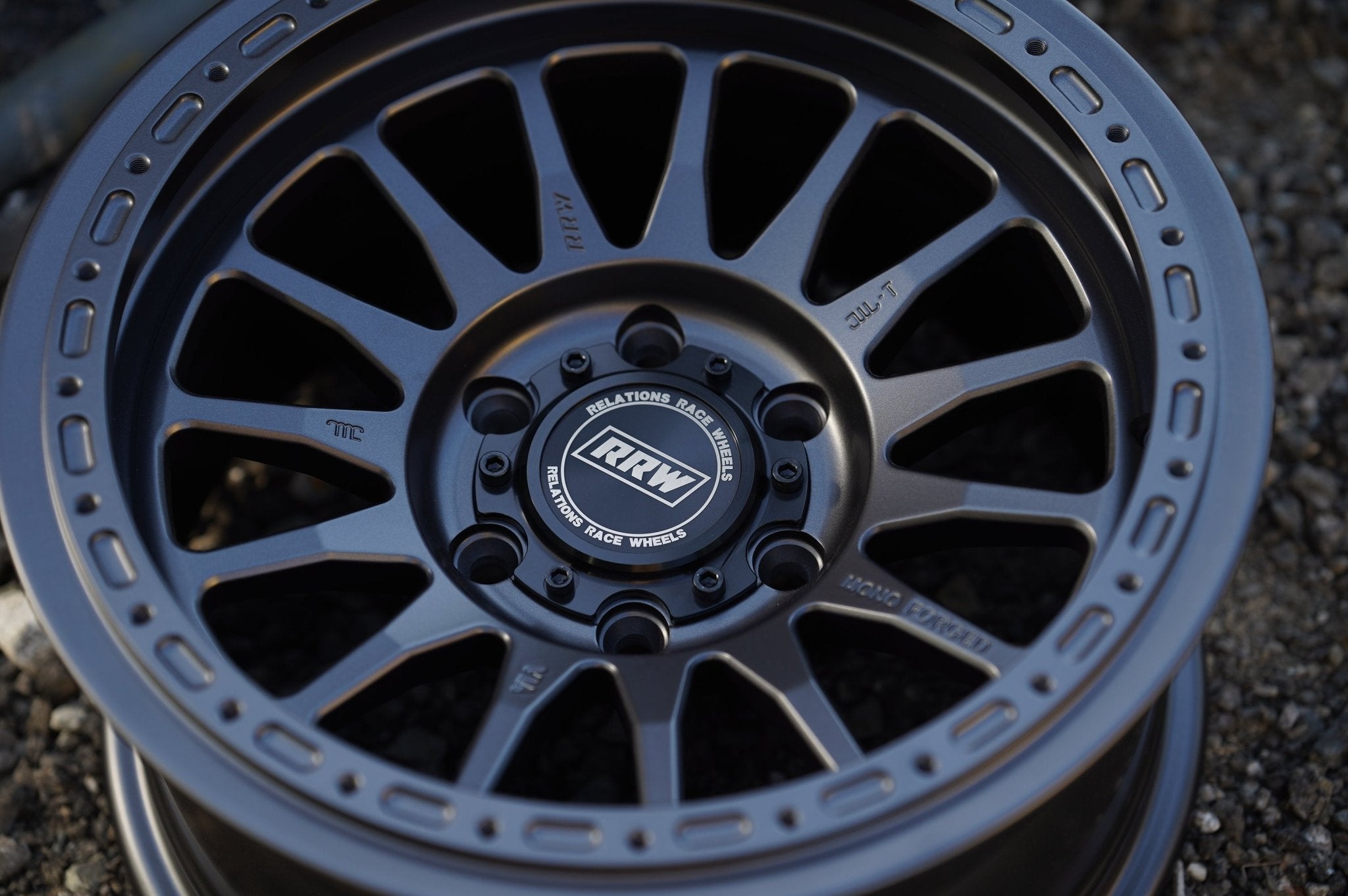

- Billet CNC Aluminum center caps are included as standard option.
- Compatible with our ET lug nuts for maximum thread engagement to wheel studs. Great especially since Toyotas are notorious for having short wheel studs.
Lead times & shipping: Orders will be shipped via Fedex Ground and will require signature.
Specifications:
- Size: 17x8.5
- Bolt pattern: 5x150, 6x135, 6x5.5/6x139.7
- Center bore for 6x5.5 for 0, -12, -25: 106.1 mm (hub-centric for Toyota trucks and GX).
-
Center bore for 6x5.5 +25: 95.3 mm (hub-centric for 24+ Tacoma, 22+ Tundra and GX550).
- Center bore for 6x135: 87.2 mm (hub-centric for F150).
-
Center bore for 5x150: 110.1 mm (hub-centric for 22-older Tundra).
- Load Rating: 2500lbs.
- Weight of +0: ~25lbs.
-
Backspacing for +25 is 5.73", +0 is 4.75", -12 is 4.28", -25 is 3.77"
- Includes billet aluminum center caps.
- Compatible with TPMS.
- Not compatible with OEM lug nuts. Conical lug nuts will need to be purchased to install wheels.
Features
- Deep stepped hybrid lip, compatible with the protection ring, billet protection ring or true beadlock ring.
- Forged construction makes the wheels lighter but stronger than regular cast wheels.
- Made from Forged 6061-T Aircraft Grade aluminum.
- Superior paint finish.
Vehicle fitment:
- 6x5.5: Toyota Tacoma (2023 and older), 4Runner, FJ Cruiser, Lexus GX470.
-
5x150: Toyota Tundra (2021-2007).

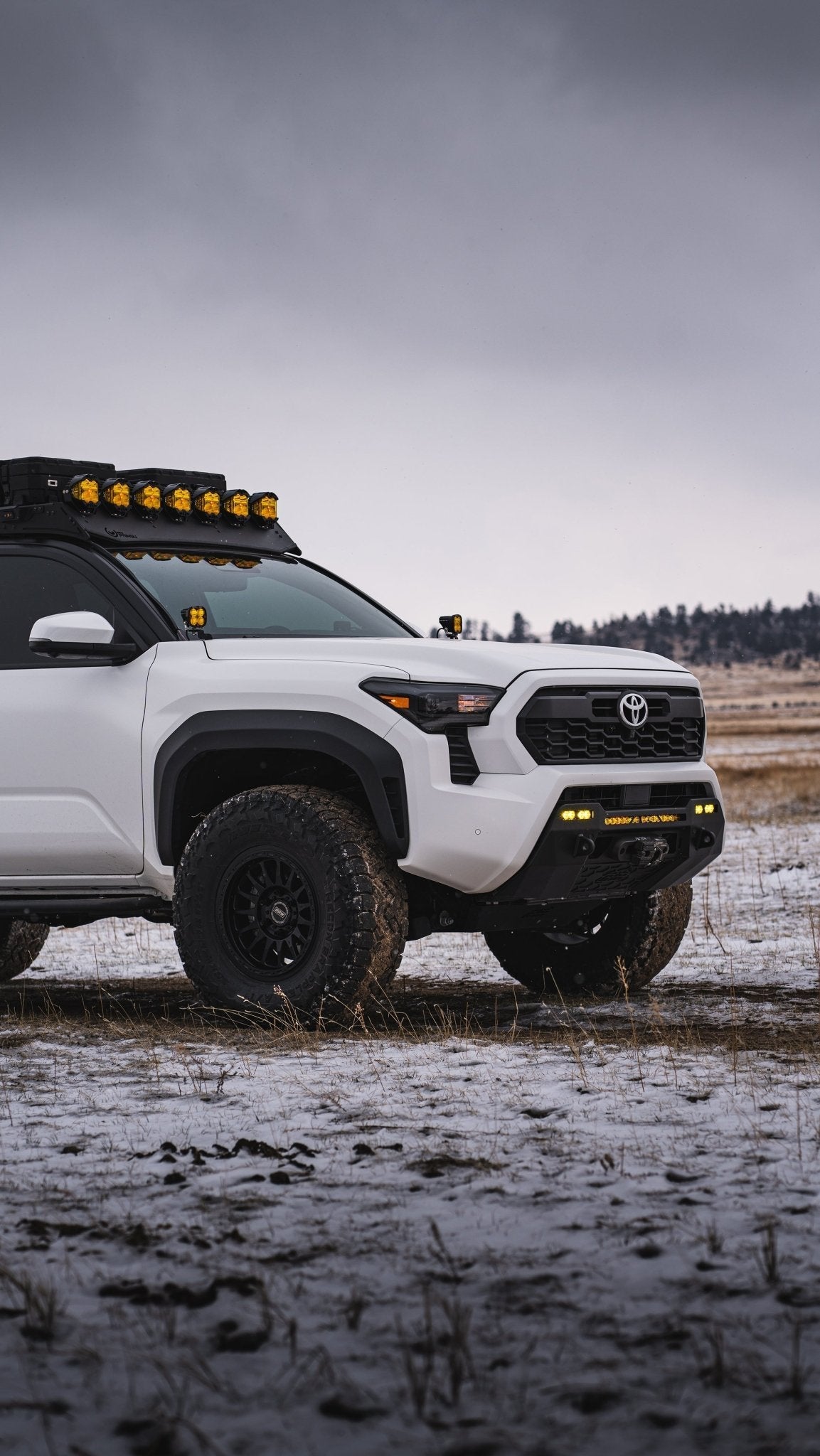

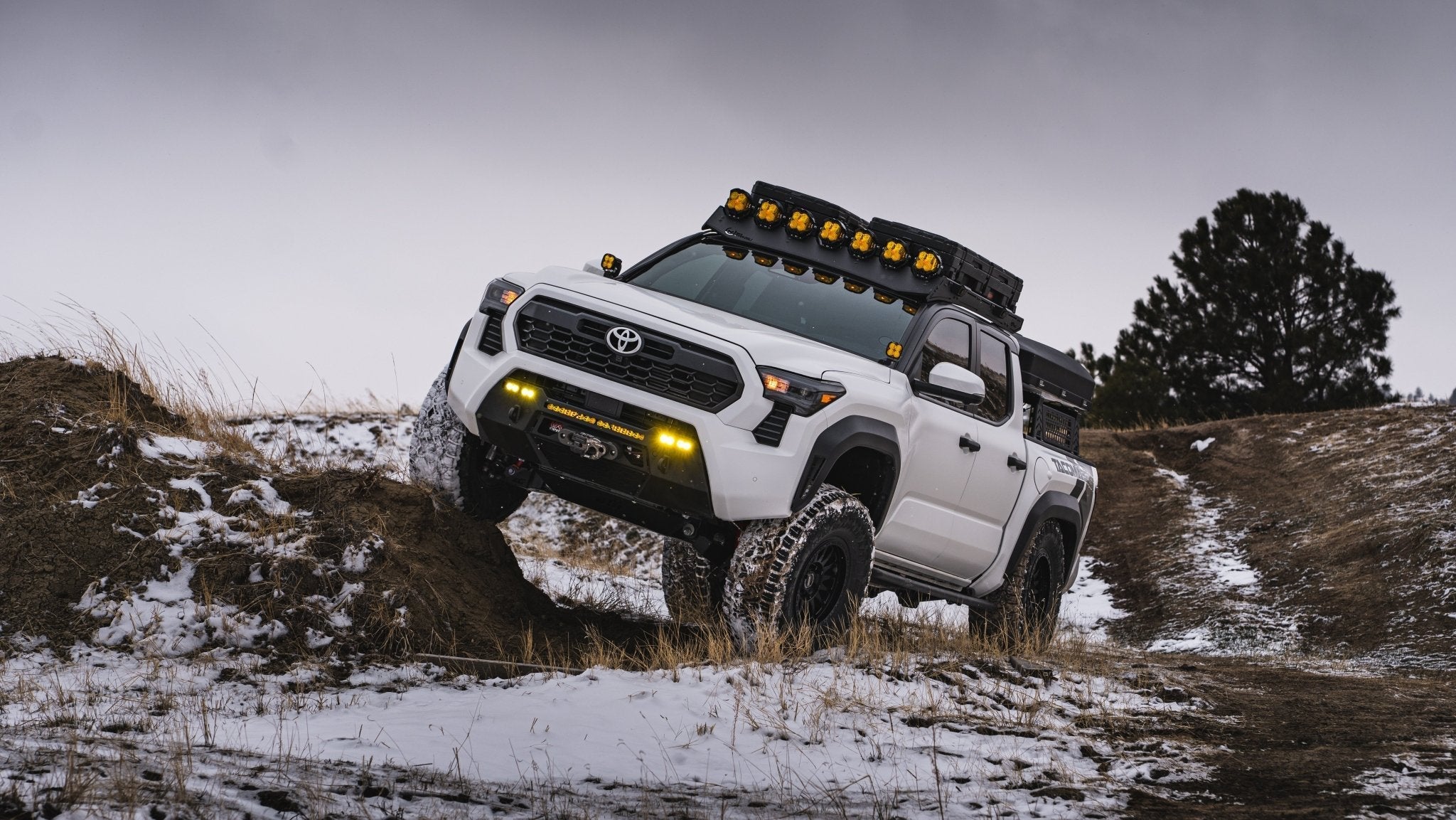

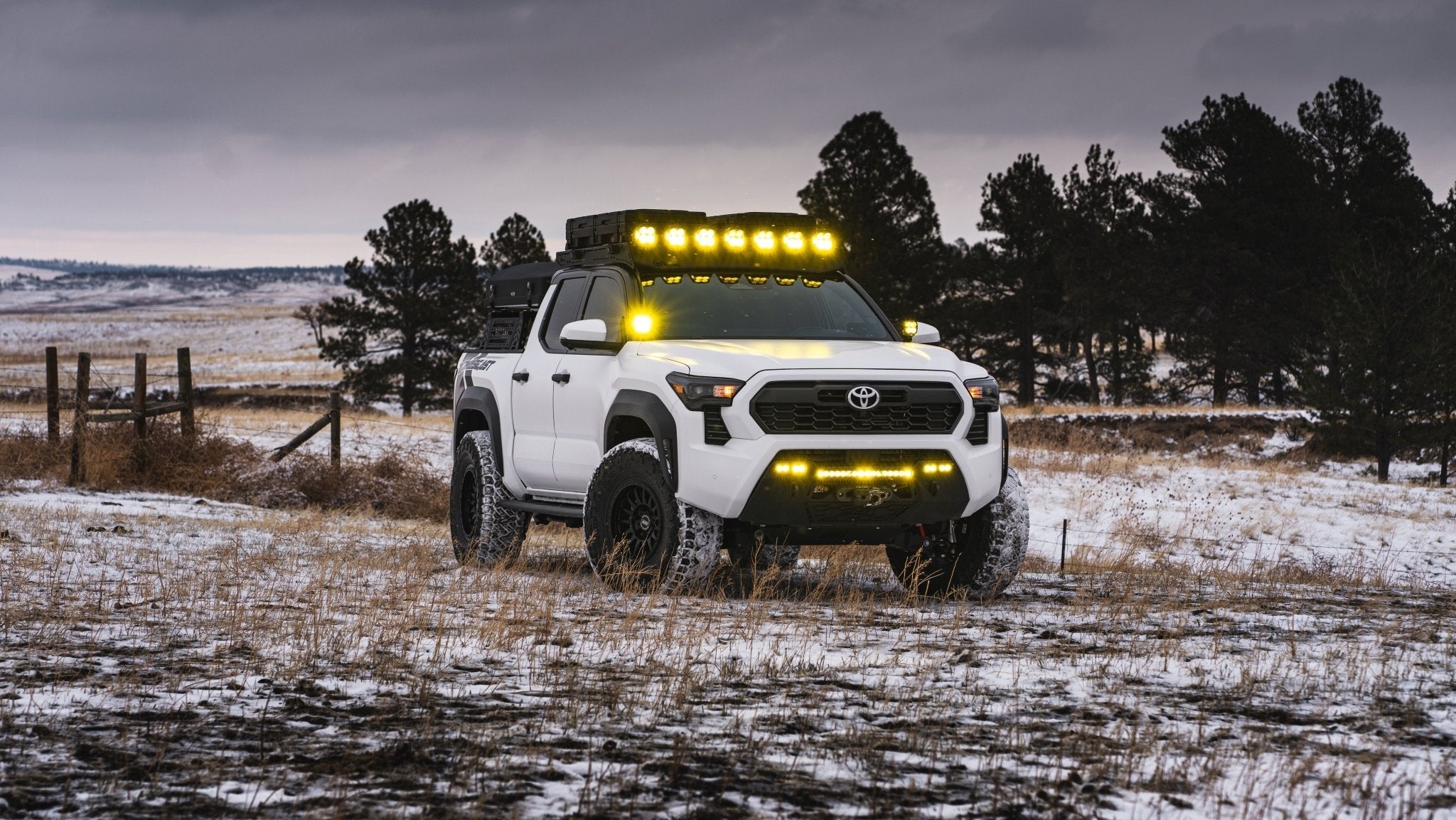

- 6x5.5 +25: Toyota Tacoma (4G 2024+), Tundra (3G 2022+).
Manufactured in a JWL/VIA Certified Facility and tested to meet and exceed OEM specifications.
Note: Photos of all finishes will be added soon.
