Description
Not afraid of water, not afraid to race, not afraid to perform! The Rugged M1 Professional Mobile Radio is built to endure offroad racing's harshest environments.
Includes heavy-duty RACE series antenna cable! Not afraid of water, not afraid to race, not afraid to perform! The Rugged M1 Professional Mobile Radio is built to endure offroad racing's harshest environments.

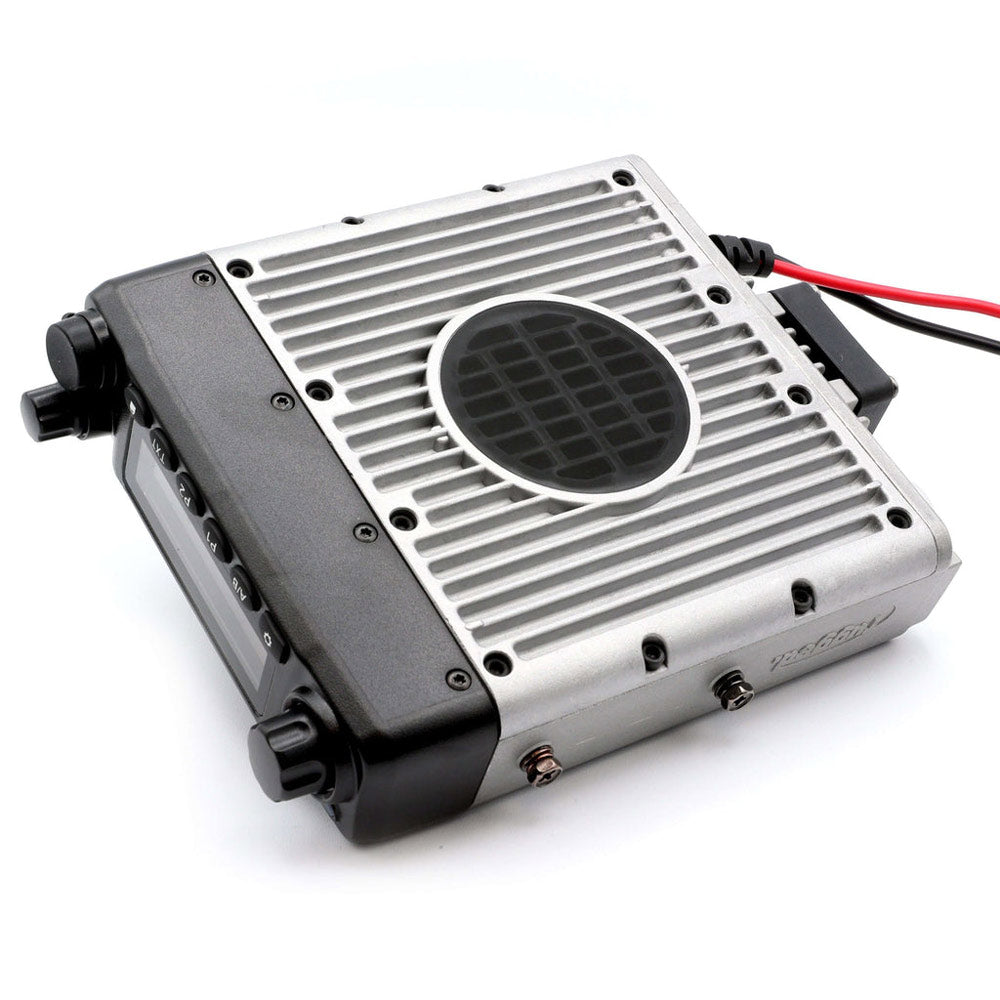

Designed from the ground up, the M1 is IP67 waterproof, and it's all-aluminum chassis protects vital circuits from Radio Frequency Interference (RFI) improving performance and reducing noise. The large, clear, easy-to-read display provides quick access to programmable controls, and an intuitive user interface. The included Accessory Hub provides convenient remote access to the programming cable connection and a 3.5 mm external speaker output.
The Rugged M1 Professional Race Radio has everything you need in a powerful, streamlined package.
Dimension: 185 mm x 141 mm x 40 mm
Key features:
- Waterproof, IP67 sealed housing
- Superior digital audio clarity
- Digital / Analog VHF band mobile transceiver
- Powerful Mitsubishi Transmit (TX) amplifier
- Clear-Hear Superheterodyne receiver
- Programmable, Quick-Access controls

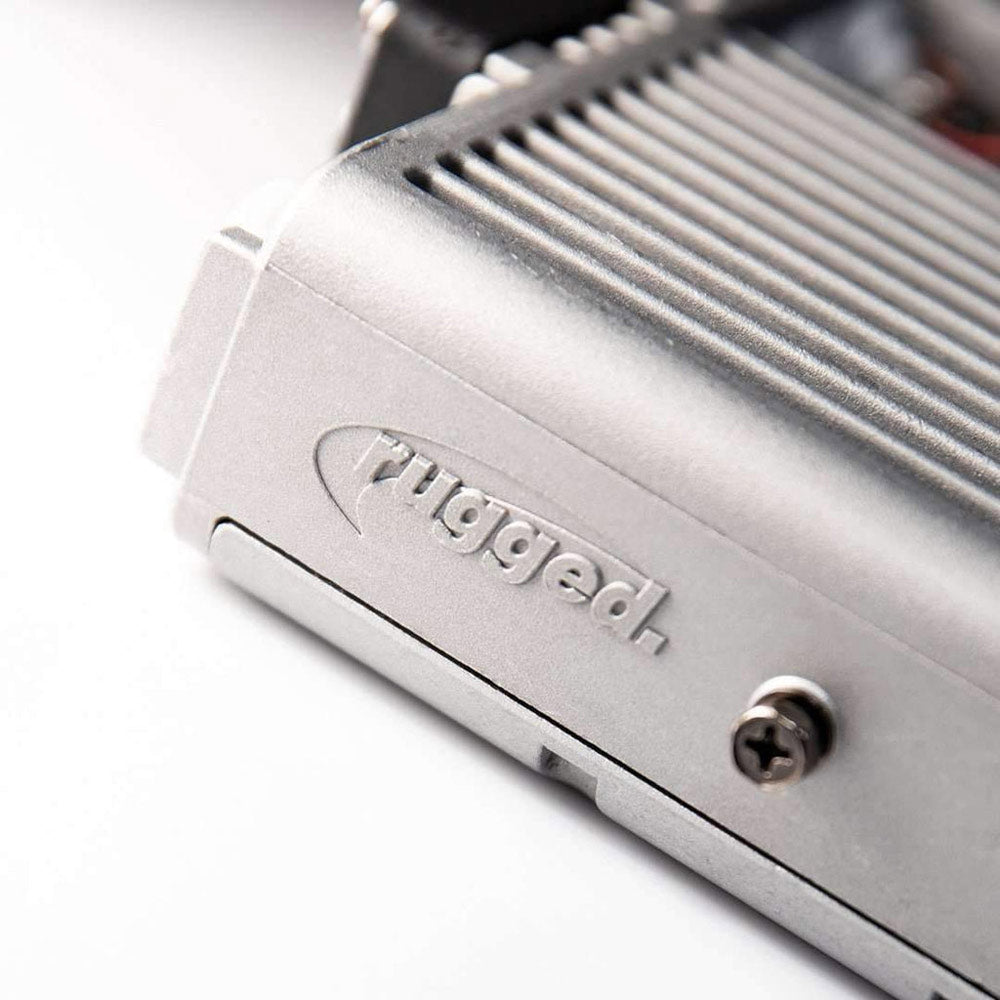

- RFI reflective aluminum chassis

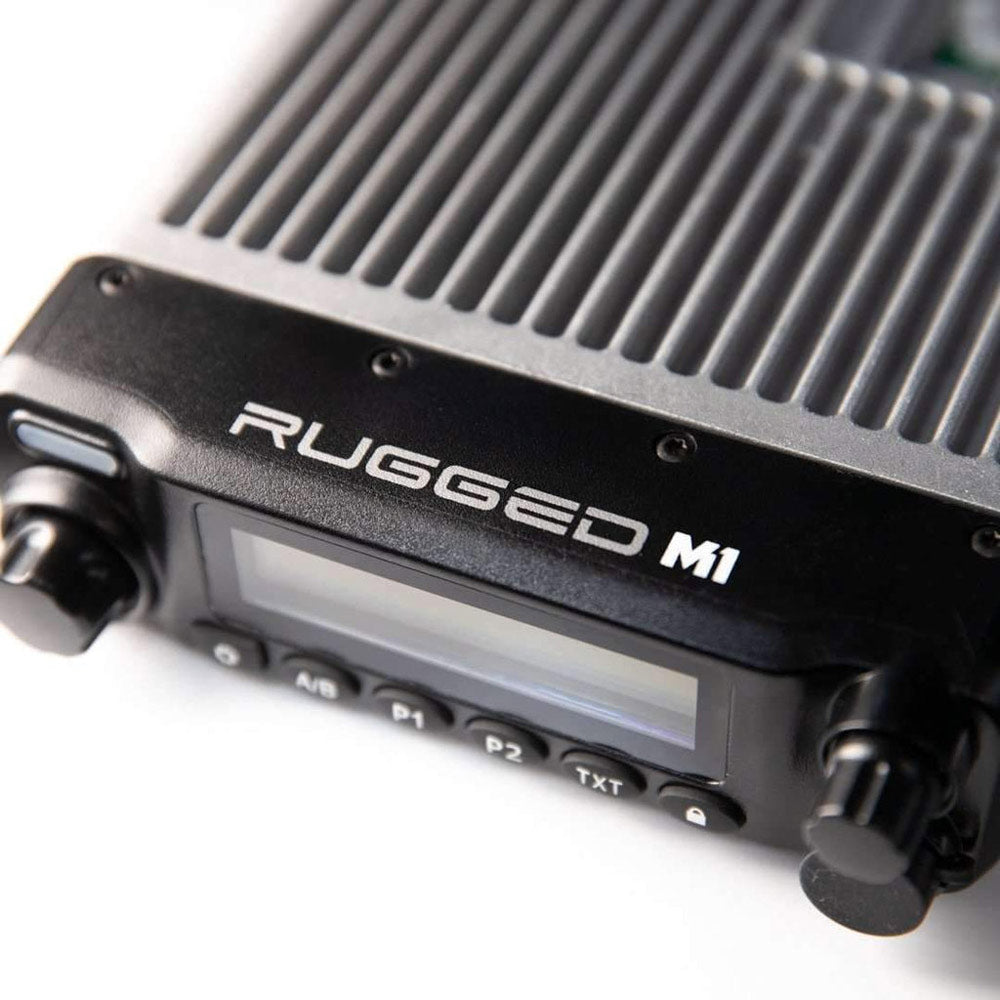

- Large, Easy to read LED Display
- Easy access remote Accessory Hub
- Upgradeable firmware
- 55 Watts
Radio kit includes:
- M1-V Radio

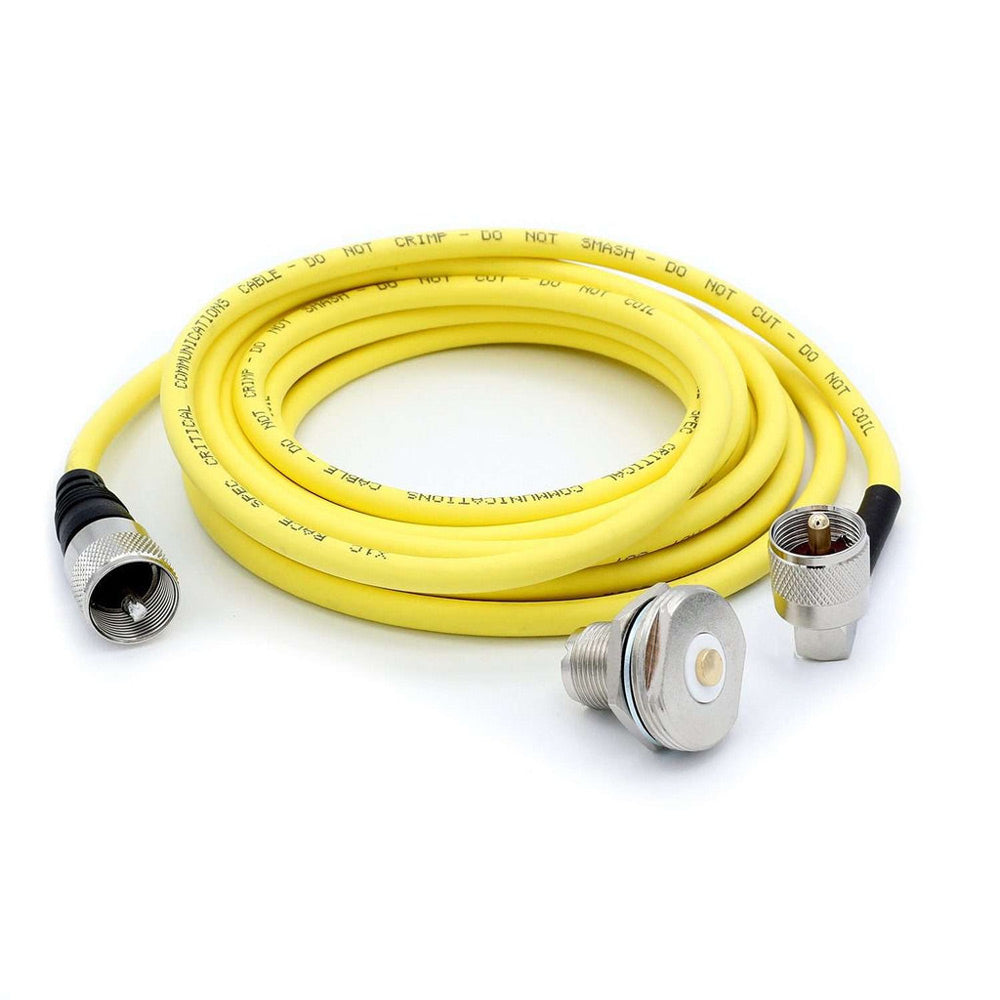

- 12' RACE SERIES Antenna Cable Kit

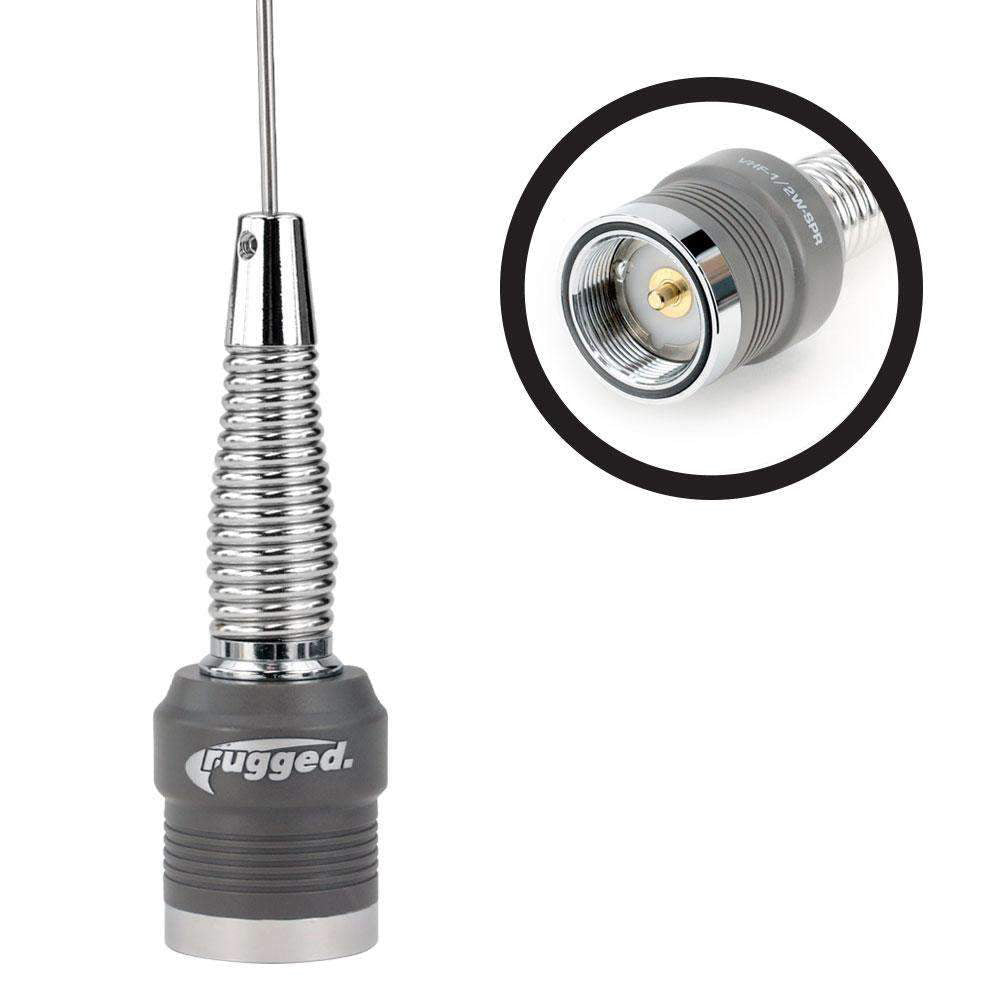

- VHF 1/2W Spring Antenna
What's included:
- M1 Mobile Radio

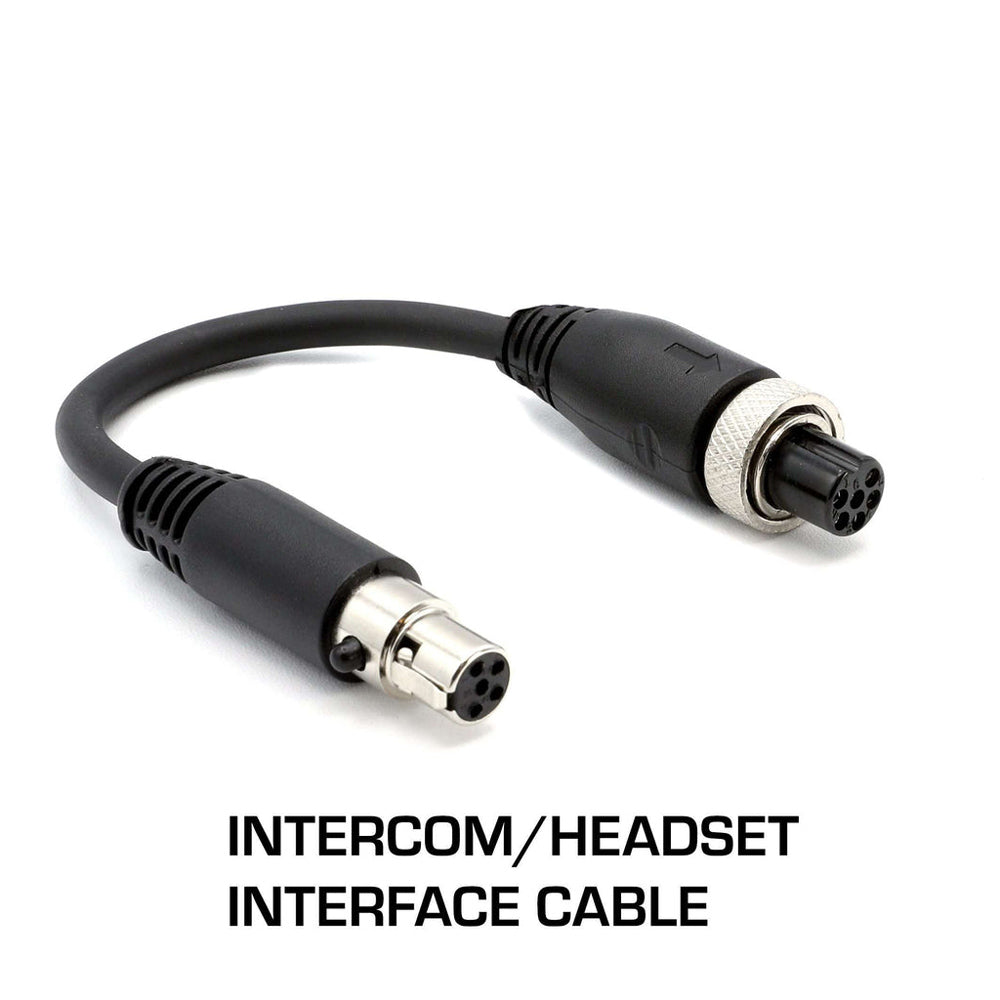

- Rugged Ready accessory intercom/headset interface cable

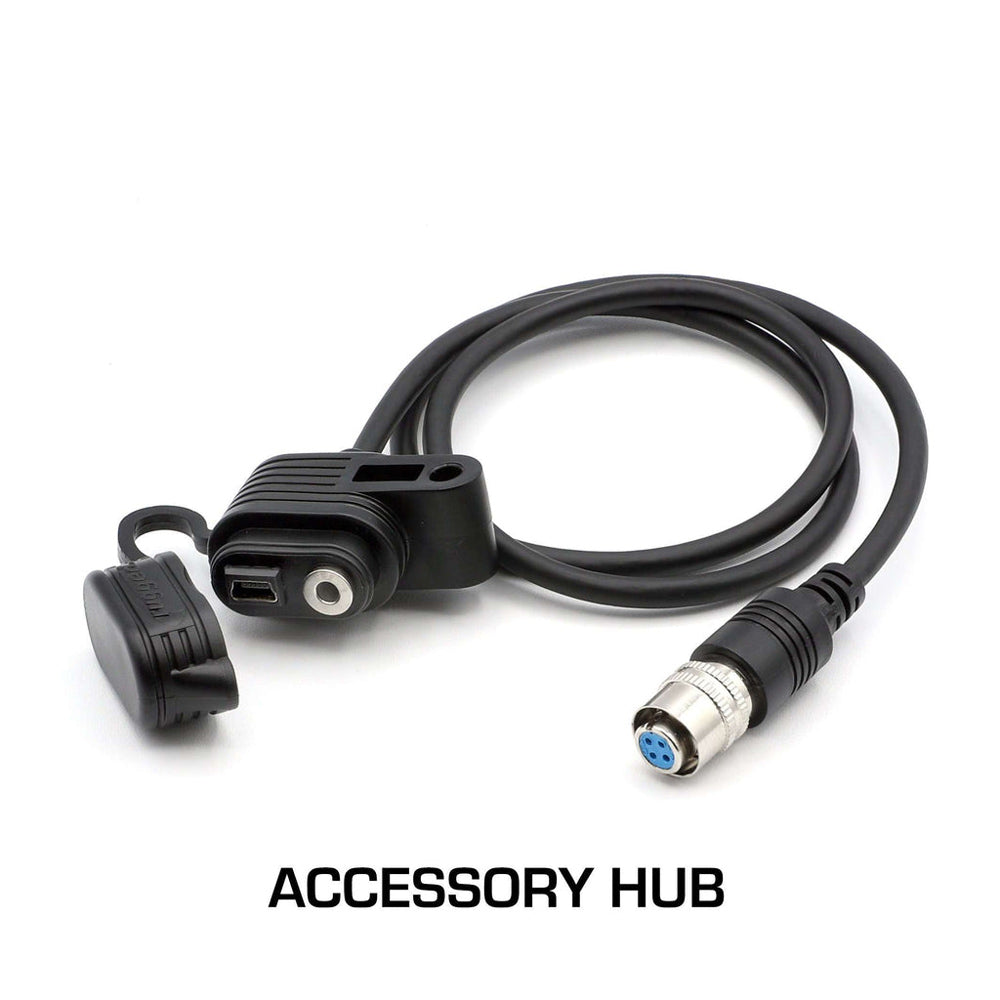

- Easy to Place 28" Accessory Hub cable for programming and external speakers
- Easy Angle universal mounting bracket

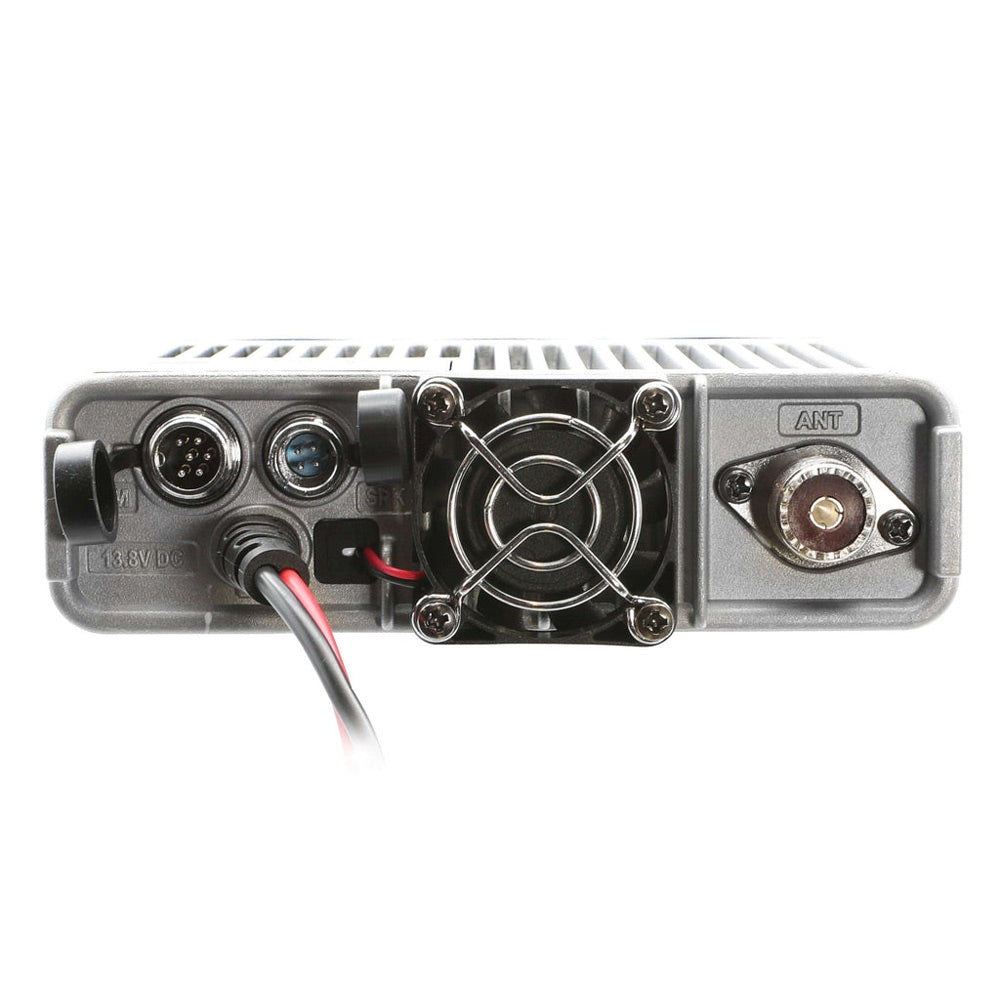

- Waterproof-connected power cable
- Ergonomic MagicMount hand mic
Compatibility:
This radio works with all VHF business band radios operating on the same frequencies. Radio models include, but are not limited to: RDM-DB, M1, RDH-X, R1, V3, RM60, RH5R, RDH16-V, as well as Icom, Motorola, Kenwood business band radios, and more.
TRANSMITTER:
RF Power Output:
5W (Low)
25W (Medium)
55W (High)
FM Hum & Noise:
-40dB @12.5kHz
-45dB @25kHz
Modulation Limited:
±2.5kHz @12.5kHz
±5.0kHz @25kHz
Conducted/Radiated Emission:
-36dBm < 1GHz
-30dBm > 1GHz < 4GHz
Adjacent Channel Power:
-60dB @12.5kHz
-65dB @25kHz
Audio Response: +1dB ~ -3dB
Audio Distortion: 3%
FM Modulation:
12.5kHz: 11KOF3E
25kHz: 16KOF3E
4FSK Digital Modulation:
12.5kHz Only Data: 7K60FXD
12.5kHz Data & Audio: 7K60FXE
Digital Protocol: DMR / ETSI TS 102361-1, -2, -3
Digital Vocoder Type: AMBE++
Digital Protocol: DMR
RECEIVER:
Frequency Stability (-20ºC +60ºC, +25ºC):
±1.0ppm
Digital Sensitivity:
0.3μV / -117.4dBm (BER* 5%)
0.7μV / -110dBm (BER* 1%)
Analog Sensitivity:
0.35μV / -116dBm (20dB SINAD)
0.22μV / -120dBm (20dB SINAD)
Rated Audio: 3W
Adjacent Channel Selectivity:
TIA630C:60dB @12.5kHz
ETSI: 60dB @12.5kHz
Intermodulation:
TIA603C:65dB
ETSI: 65dB
Co-Channel Rejection: 12dB @12.5kHz
Spurious Rejection:
TIA603C:70dB
ETSI:70dB
Audio Distortion @ Rated Audio: ≤ 3%
FM Hum & Noise:
-40dB @12.5kHz
-45dB @25kHz
Audio Response: +1dB ~ -3dB
Spurious Emission:
-57dBm < 1GHz
-47dBm > 1GHz
Block: 84dB
