Description
Key features:

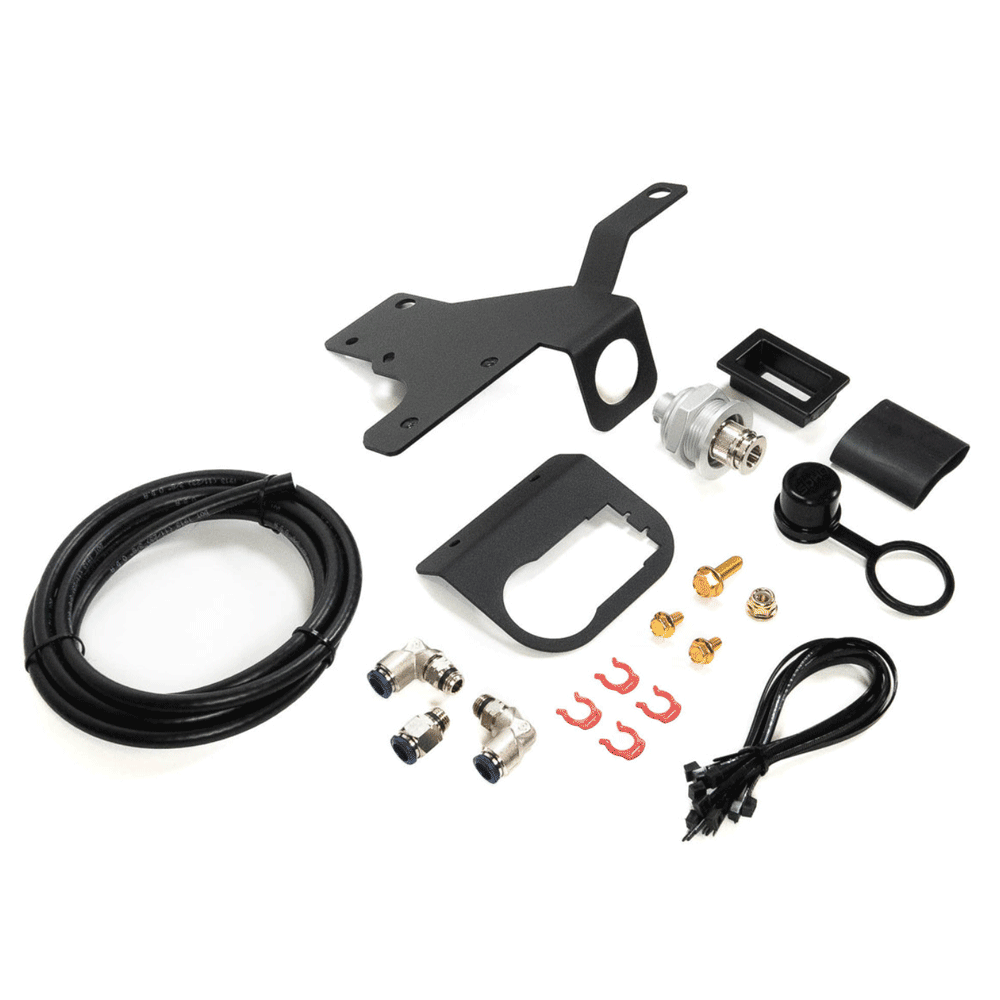

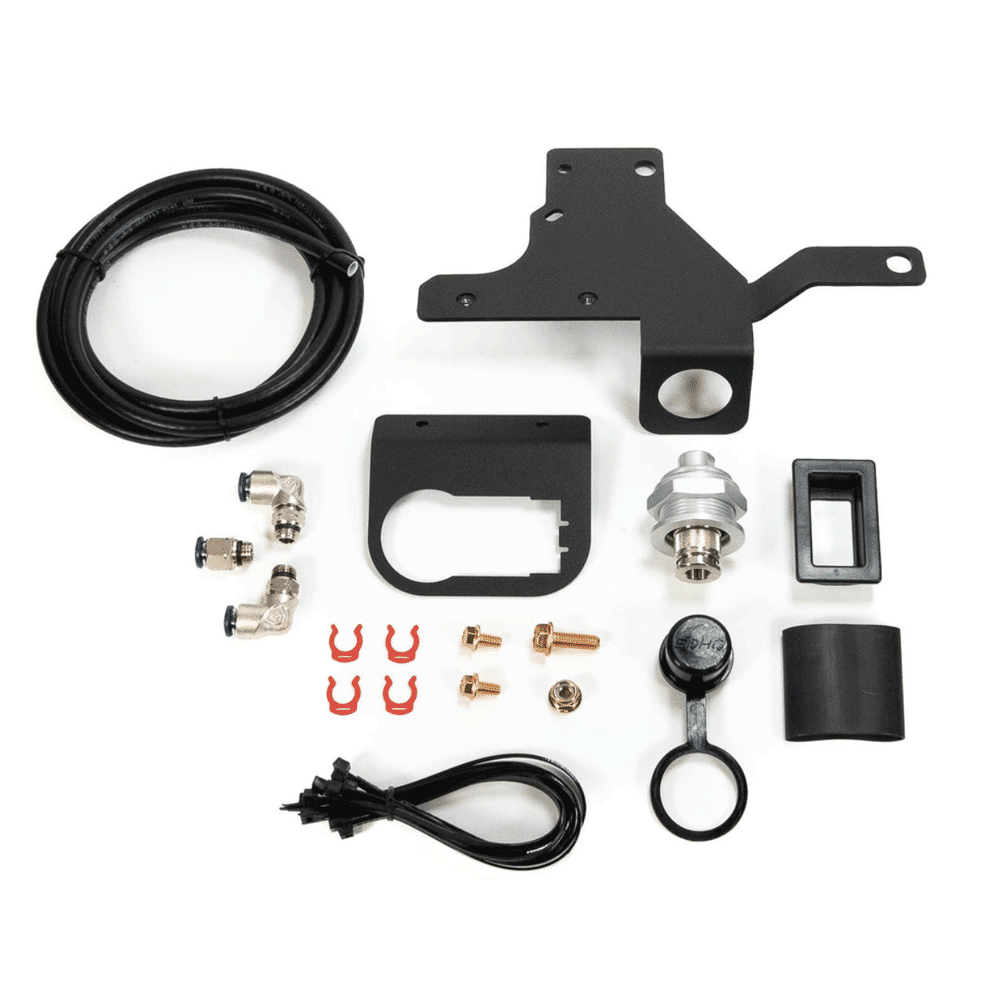

- 3D CAD designed from a 3D SCAN for a precise fit and finish.
- Fits 2024+ Toyota Land Cruiser .
- Fabricated from 11 GA and 13 GA sheet metal for durability.
- Installs the air chuck next to trailer plug (replaces trailer plug bracket).
- Includes recessed air chuck bulkhead.
- Keeps quick connect air chuck sealed from environment .
- Includes a recessed switch mount and template to locate the switch into the side plastic trim panel.
- Ships powder coated black.
- Difficulty of installation: Easy.
- Install time: Approx. 1 hour (not including wiring).
Air line tech info:
- Premium Eaton Aeroquip Synflex air tubing.
- Superior abrasion resistance.
- Enhanced flexibility and extension.
- Flow performance.
- UV stabilized, Thermoformable.
- 350 PSI max working pressure, 1200 PSI minimum burst pressure.
- D.O.T. FMVSS 106,SAE J1131,SAE J2494-3,SAE J844 Type A.
Push to connect tech info:
- Premium AIGNEP SWIFTFIT push-to-connect fittings.
- Nickel plated brass construction.
- Fits: NPT/NPTF, BSPP, BSPT and BSP threads.
- Reduced overall length.
- 290 PSI max working pressure.
