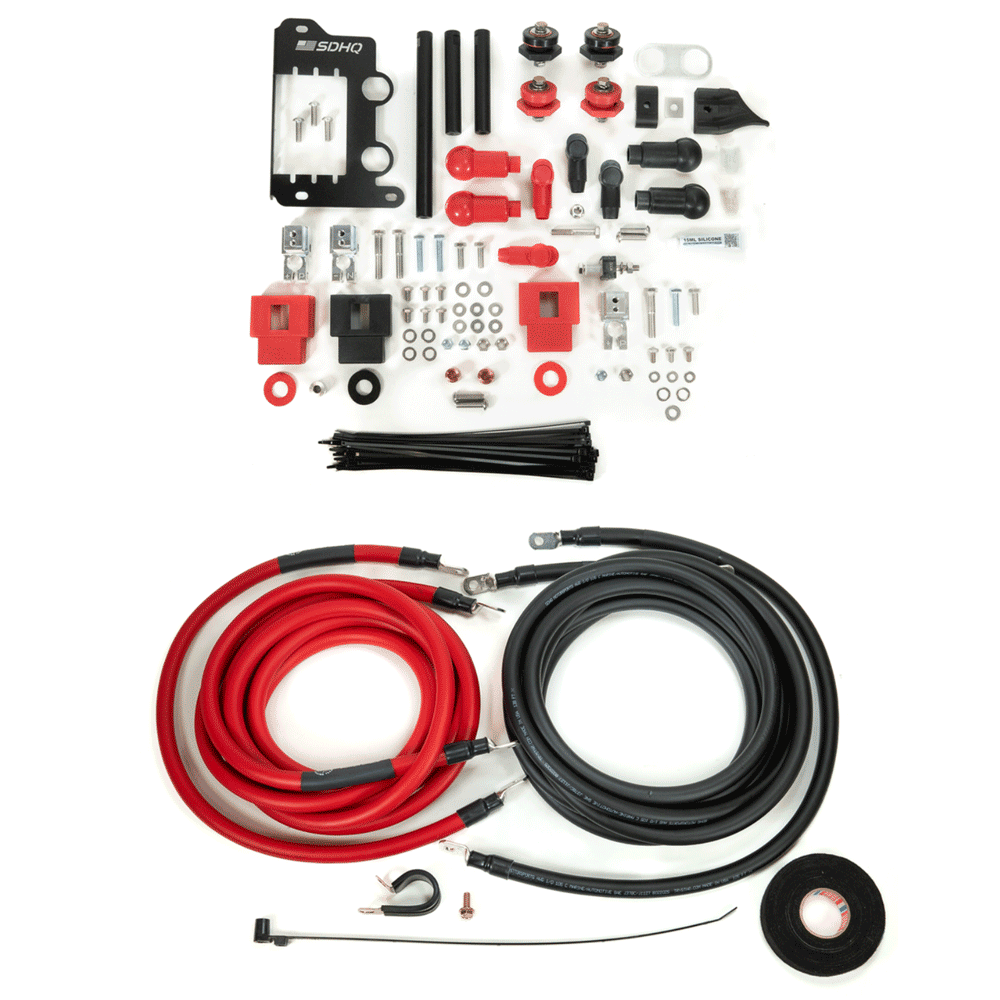

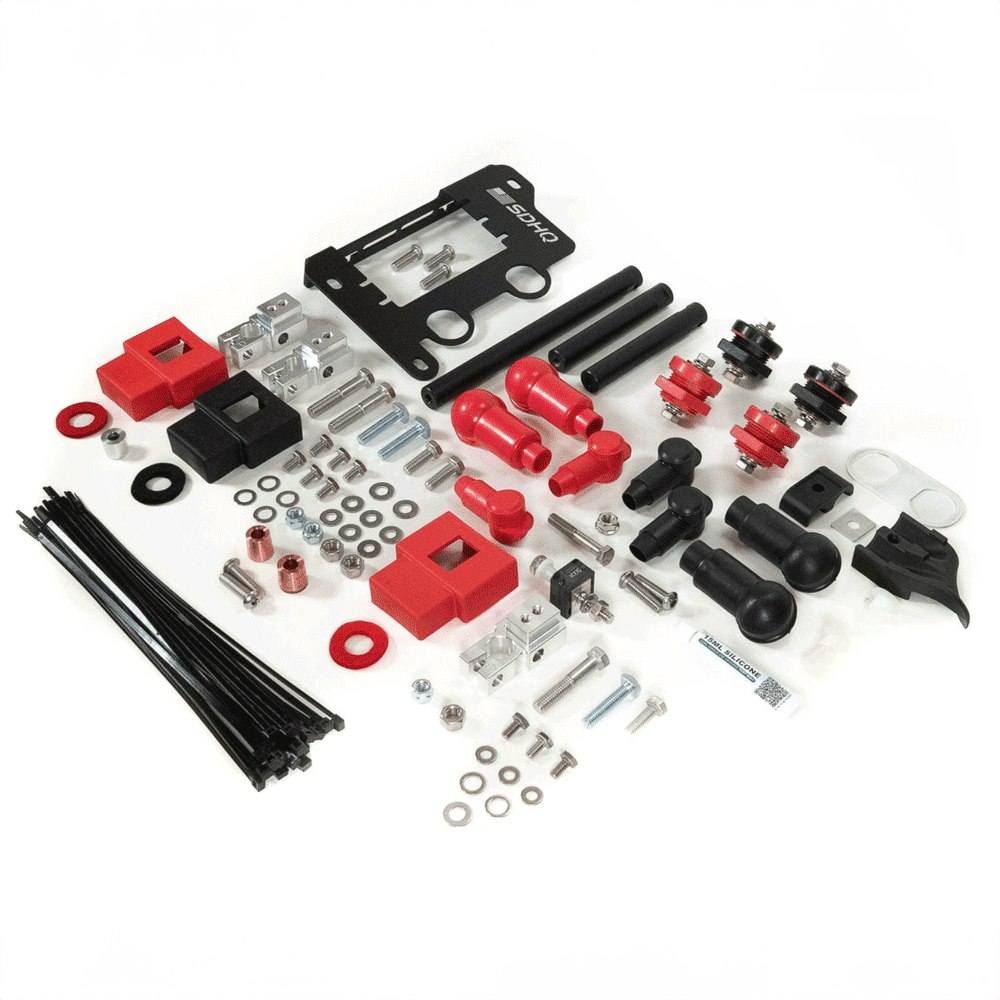

SDHQ - Under Hood Power Solution Kit - Toyota Land Cruiser 250 (2025+)

Key features:

• Designed to fit 2024+ LC250.
• Complete 12-volt under hood solution.
• Remote mount billet battery terminals w/ protective boots.
• 1/0 dual layer jacketed battery cable (rated for 350 amps continuous).
• Copper core pass through bushings rated for 440 amps continuous (535 max for 12 min.).
• 500 amp fused for shorting protection and use with winches (9% voltage drop @500 amps).
• Power module mounting:
  • • 9100 (multiple mounting options).
    • RCR 12.
    • Garmin PowerSwitch.
    • MSD solid state relays.
• Optional pass through tool kit:
  • • ⅛” and 3/16” stubby drill bits.
    • 1-¼” hole saw.
• 2-3 hour install time + any accessory wiring.
