PowerTrays - Switch-Pro Accessory Bundle > Tacoma TRD Off Road, 4Runner, FJ Cruiser, GX


Price:
Sale price$223.00

Shipping calculated at checkout

Stock:
In stock

Description

This Accessory Bundle does NOT include the Switch-Pros 9100 OR the Switch-Pros PowerTray Mount. Those are separate products. This bundle is for everything else you'll need to cleanly install this system in your Toyota.

You have three options for providing power to the Fuse Block and Switch-Pros:

Our Power and ground cables are all made in-house using USA made welding wire, tin-plated copper battery lugs, wrapped in braided protective sheathing and sealed with 3M marine-grade heat shrink.

1. Dual MRBF Option: This option replaces the Switch-Pros supplied power cable so all the cables for the whole system match. The replacement cable is also slightly longer which allows it to be routed nicely down and around the factory fuse box. A Dual Marine Rated Battery Fuse (MRBF) holder is used for circuit protection.

This option includes the following:

  • Dual MRBF terminal fuse holder
    • 125A Marine Rated Battery Fuse (Circuit Protection for Switch-Pros)
    • 100A Marine Rated Battery Fuse (Circuit Protection for Fuse Block)
  • 2 Premium USA Made Power Cables
    • 26" Length 4 Gauge Power Cable (125A MRBF to Switch-Pros)
    • 24" Length 4 Gauge Power Cable (100A MRBF to Fuse Block)
  • 2  Premium USA Made Ground Cables
    • 3’’ Length 4 Gauge Ground Cable (Fuse Block to Busbar)
    • 16" Length 4 Gauge Ground Cable (Busbar to Fender Ground)
  • Blue Sea 5025 6 Circuit Fuse Block
  • Blue Sea 2300 10 Screw Common Busbar
  • Blue Sea 8 Circuit Barrier Terminal Block
  • Molex PermaSeal Ring Terminals (5 large, 5 small)

Dual MRBF Install with Runnin4Tacos!

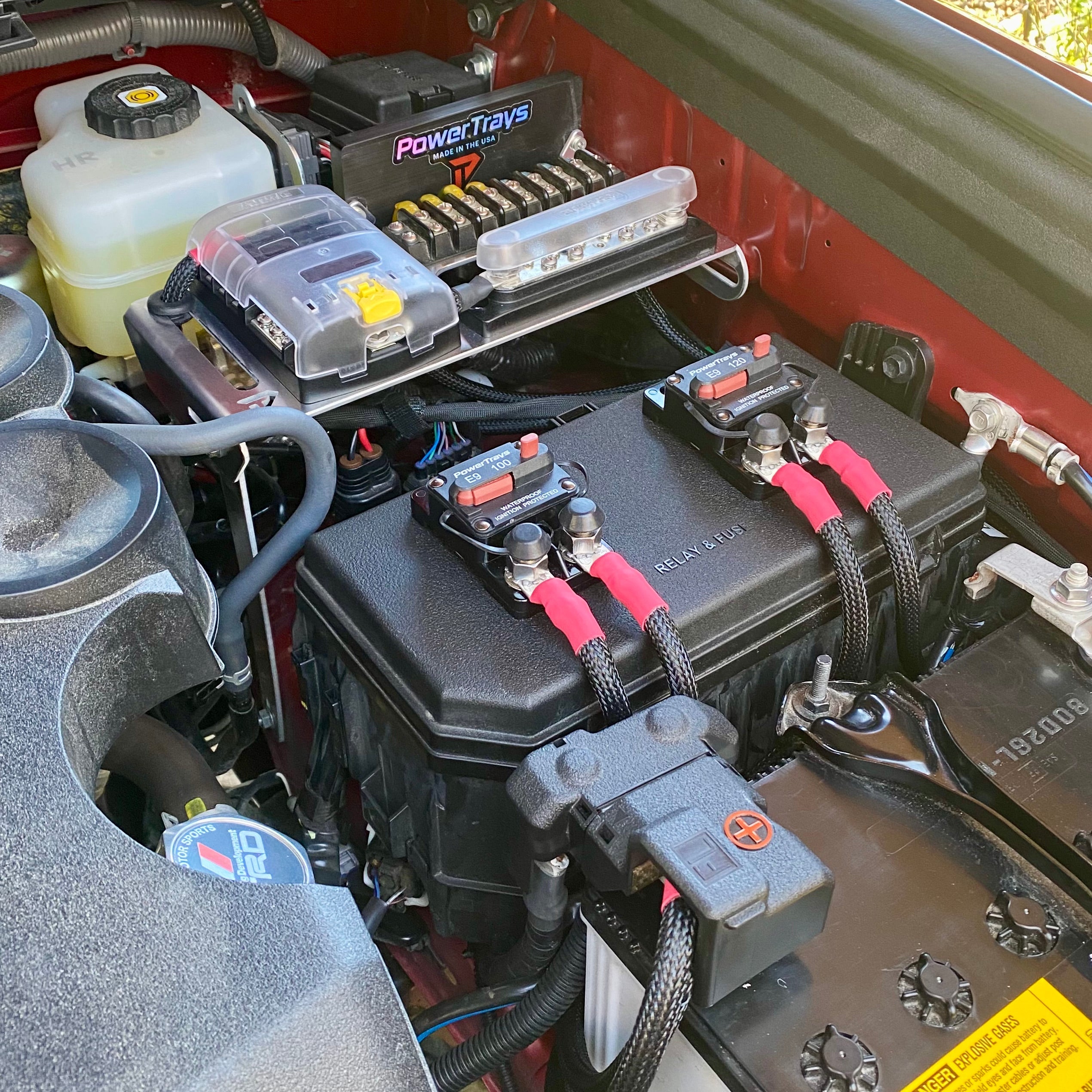

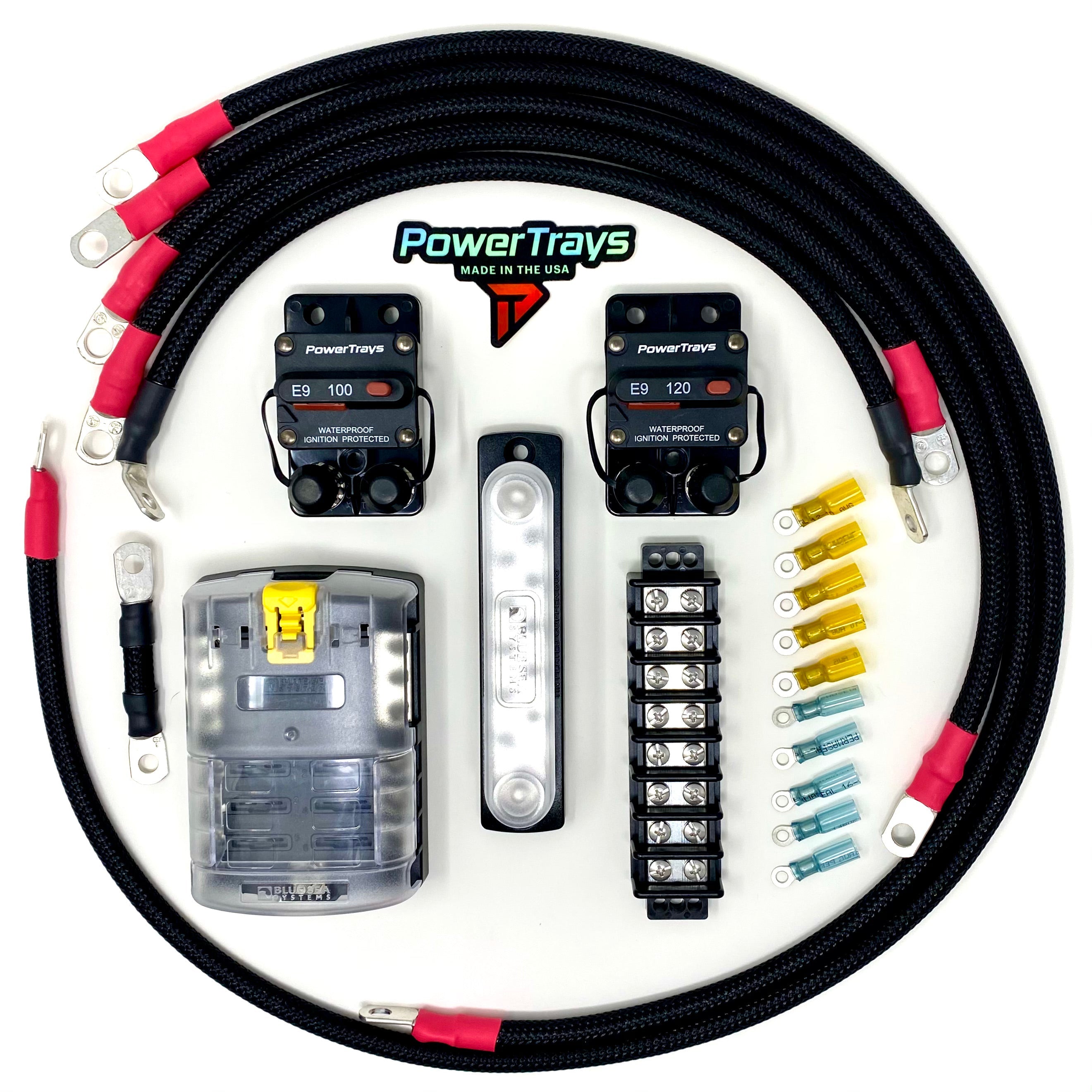

    2. Dual CB Option: This option utilizes 2 circuit breakers as opposed to the terminal mount MRBF's. Circuit breakers provide the same protection as the MRBF's, with the added benefit of being resettable if the current exceeds the max rating. These circuit breakers also have a manual trip button to cut power to the system for when you’re working on it and wiring up new accessories. Note: The circuit breakers can be mounted to the top of your factory fuse block cover with 3M double sided VHB tape if you don't want to drill any holes.

    CLICK HERE to see more pics of the Dual CB setup.

    This option includes the following:

    • 100A surface mount CB
    • 120A surface mount CB
    • 4 Premium USA Made Power Cables
      • 21"  Length 4 Gauge Power Cable ( Battery to 100A CB)
      • 21"  Length 4 Gauge Power Cable (Battery to 120A CB)
      • 42"  Length 4 Gauge Power Cable (100A CB to Fuse Block)
      • 30"  Length 4 Gauge Power Cable (120A CB to Switch-Pros)
    • 2 Premium USA Made Ground Cables
      • 3’’ Length 4 Gauge Ground Cable (Fuse Block to Busbar)
      • 16" Length 4 Gauge Ground Cable (Busbar to Fender Ground)
    • Blue Sea 5025 6 Circuit Fuse Block
    • Blue Sea 2300 10 Screw Common Busbar
    • Blue Sea 8 Circuit Barrier Terminal Block
    • Molex PermaSeal Ring Terminals (5 large, 5 small)

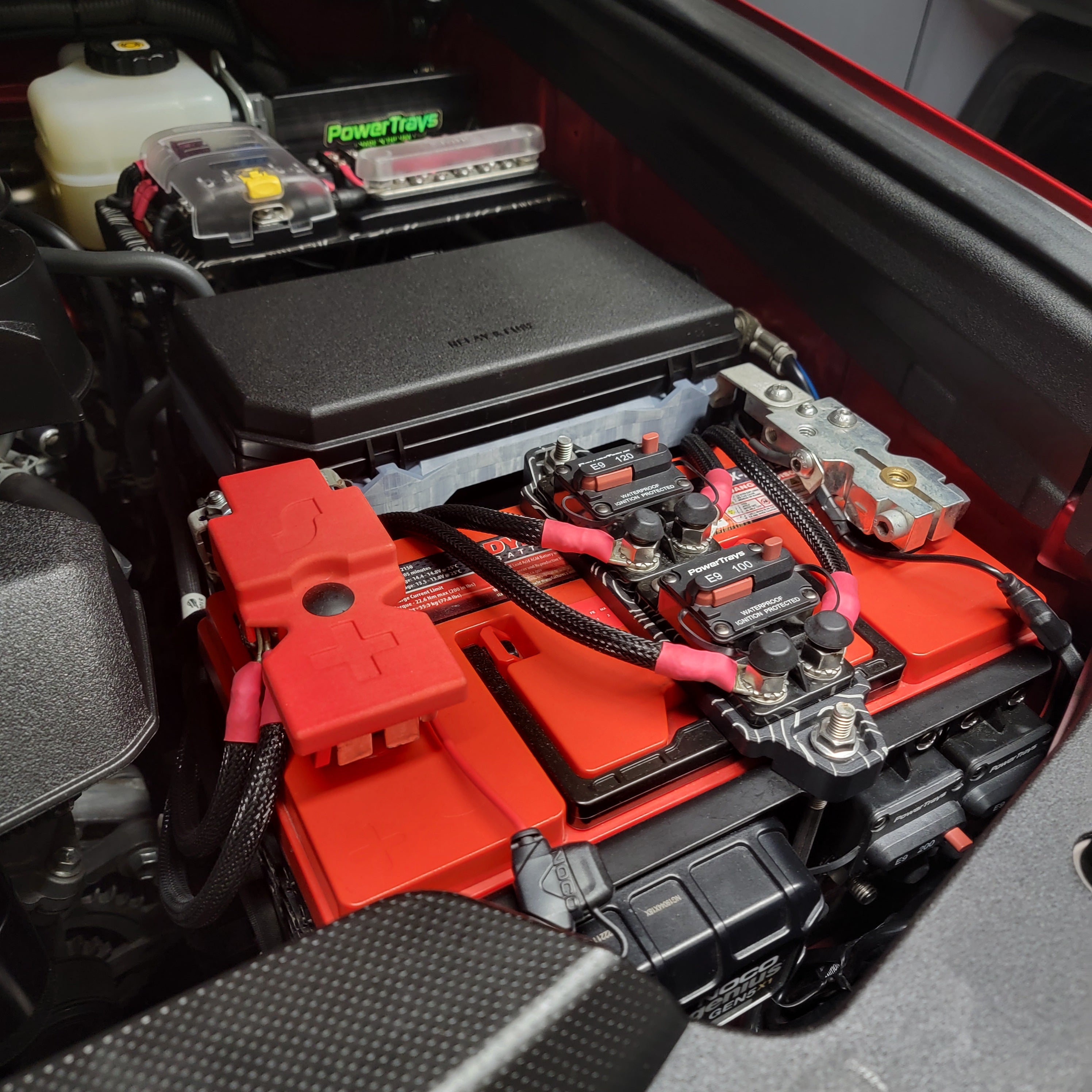

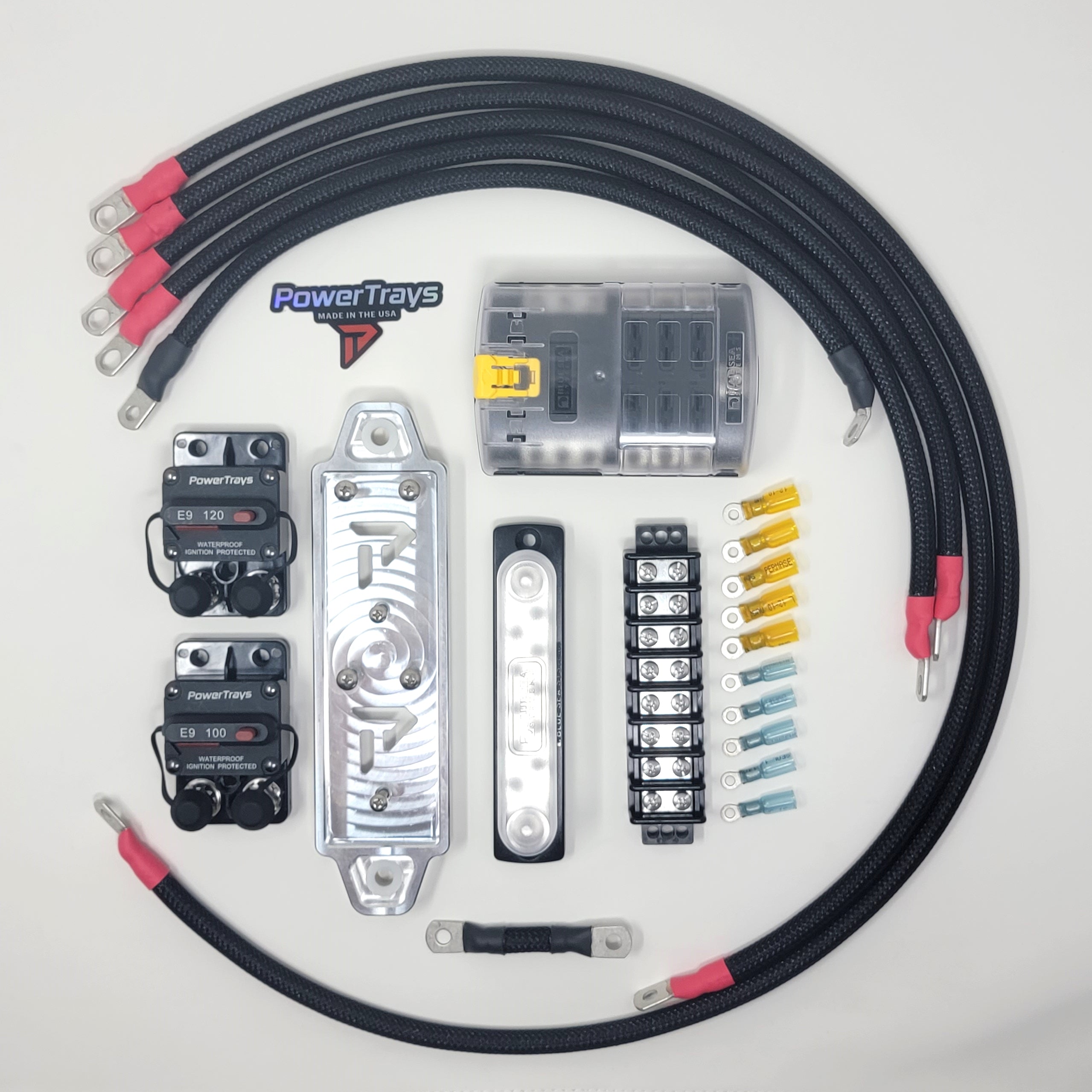

    3. Dual CB w/ Battery Tiedown Option: This option includes our CNC machined aluminum tie-down to mount the Circuit breaker to instead of the having to mount them on top of the factory fuse cover. Does not work with OEM lead-acid batteries due to the vents on top of the battery. Requires aftermarket battery with a flat top.

    This option includes the following:

    • CNC Machined Aluminum Tie-down
    • 100A surface mount CB
    • 120A surface mount CB
    • 4 Premium USA Made Power Cables
      • 21"   Length 4 Gauge Power Cable (  Battery to 100A CB)
      • 21"   Length 4 Gauge Power Cable (Battery to 120A CB)
      • 42"   Length 4 Gauge Power Cable (100A CB to Fuse Block)
      • 30"   Length 4 Gauge Power Cable (120A CB to Switch-Pros)
    • 2  Premium USA Made Ground Cables
      • 3’’  Length 4 Gauge Ground Cable (Fuse Block to Busbar)
      • 16"  Length 4 Gauge Ground Cable (Busbar to Fender Ground)
    • Blue Sea 5025 6 Circuit Fuse Block
    • Blue Sea 2300 10 Screw Common Busbar
    • Blue Sea 8 Circuit Barrier Terminal Block
    • Molex PermaSeal Ring Terminals (5 large, 5 small)

    Note: Your stock battery tie down may have welded J-Hooks or you may need longer J-Hooks for taller batteries. Click here for longer J-Hooks.

    Tie-Down does NOT work with factory batteries or vented lead acid batteries.

      Low-Profile Mini fuse taps: Our Toyota's use Low-Profile Mini fuses which are less common here. In order for the Switch-Pros to operate, it needs and ignition sense; AKA it needs to know if the vehicle is running or not. Note: Switch-Pros does supply (1) Mini fuse tap, which is not the same as fuses our Toyota's use. The regular mini tap will work, but due to its height the factory fuse box cover located behind the dash might need modification to snap back on. The other taps are optional and used as a light sense, to dim the switch panel at night, and a trigger tap.
