Description
Details:
- Outstanding 5000LM output for low beam projector and high beam applications.

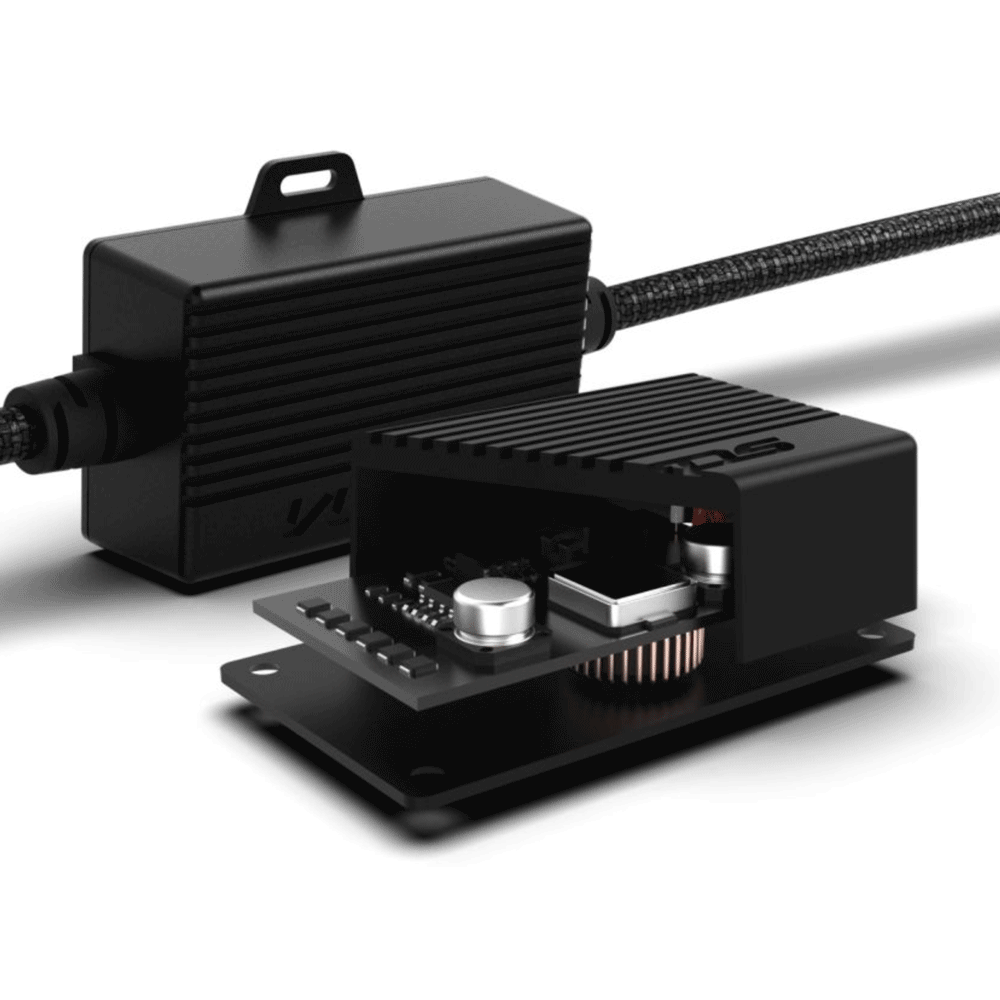

- Error-free external driver provides added reliability and longevity.
- Ultra-thin, 1.5mm Copper Core PCB for optimal light output and a focused, crisp beam pattern.

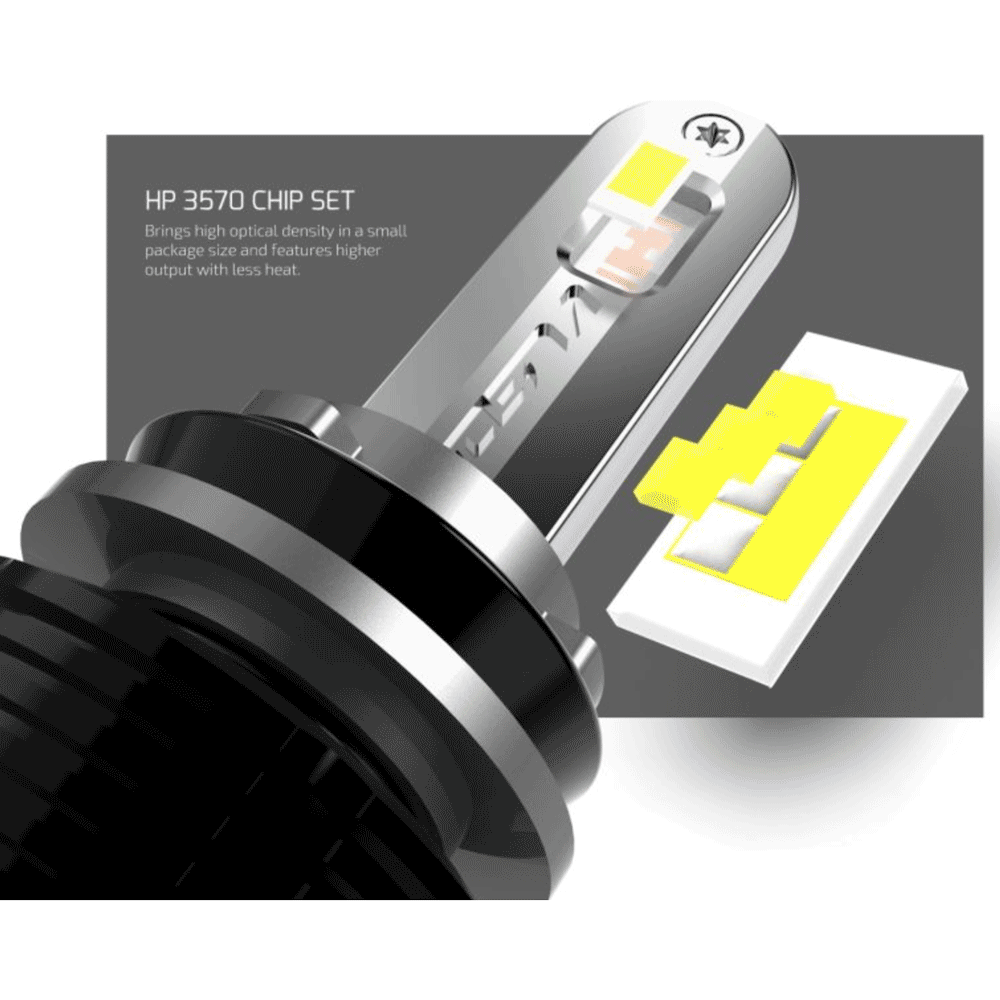

- HP 3570 chipset features higher output with less heat. Dedicated thermal pad for direct transfer from chip to PCB.

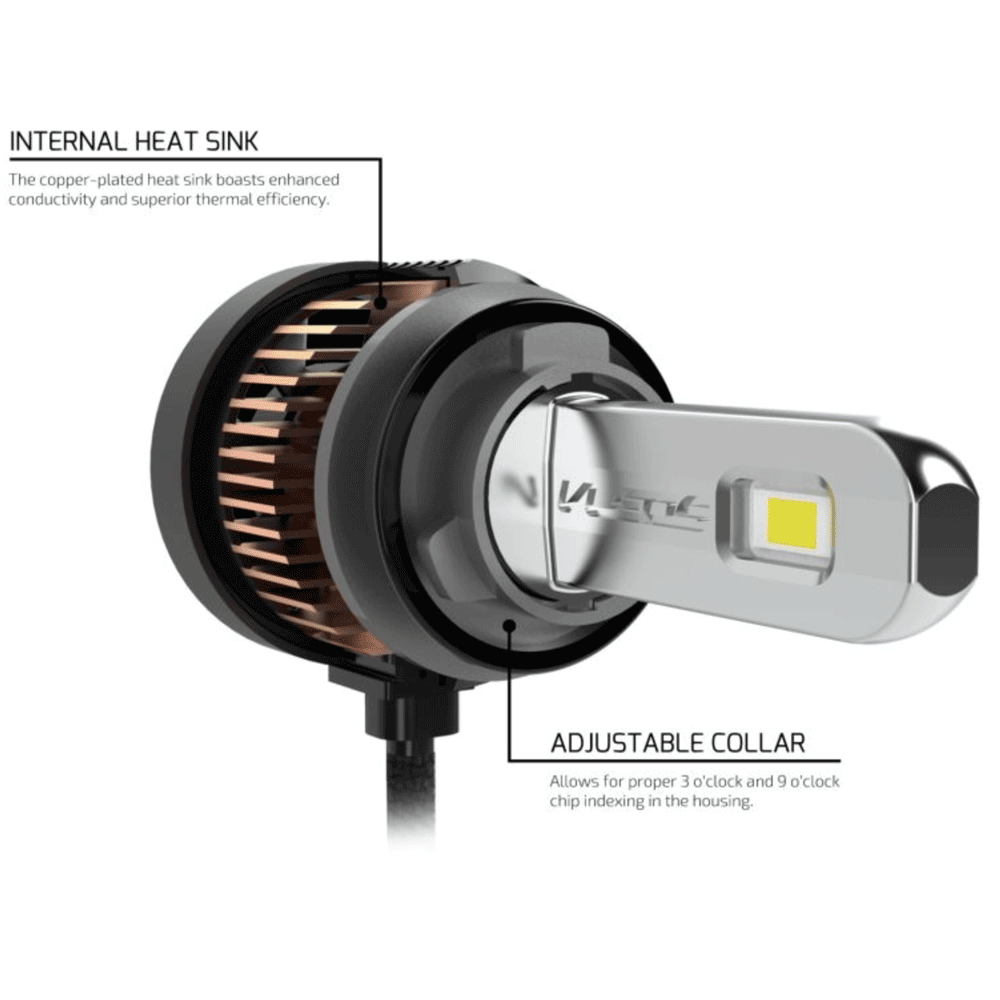

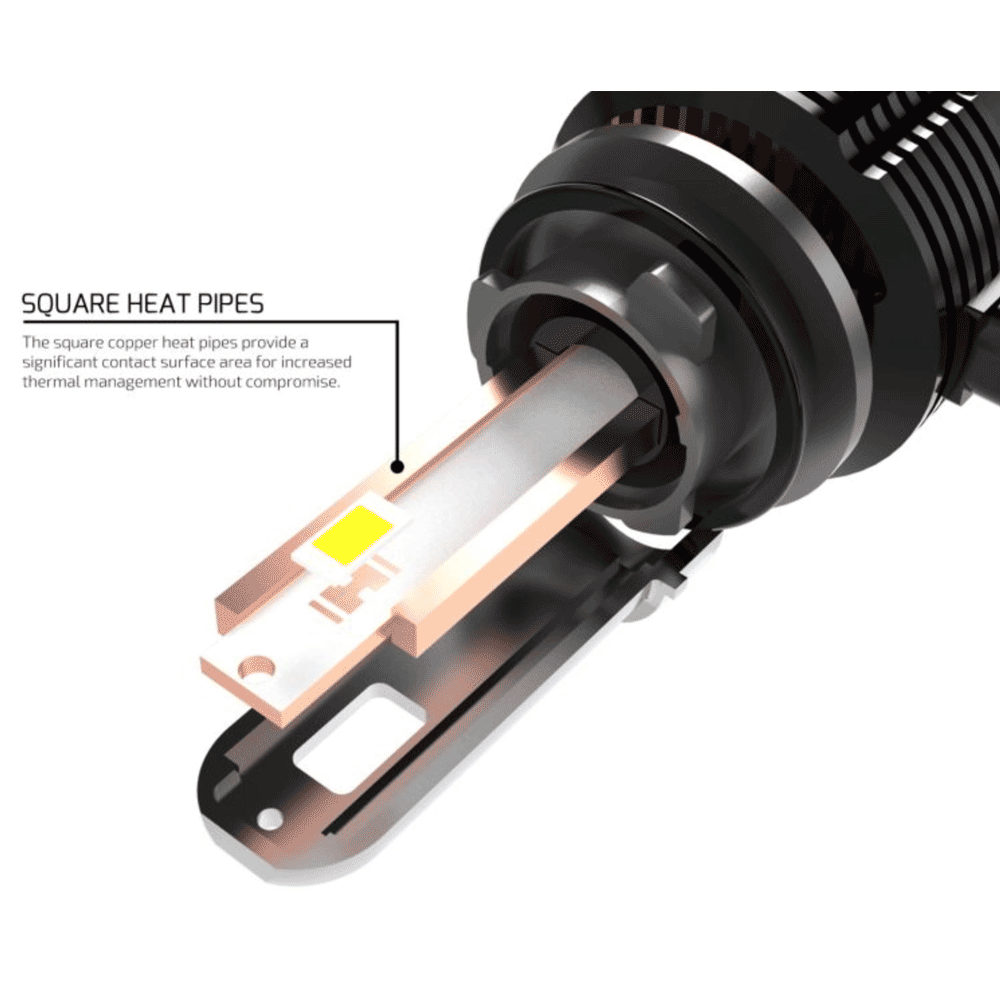

- Dual square copper heat pipes provide a significant increase in contact surface area, enhancing efficiency in thermal management. Enhanced conductivity and superior thermal efficiency with a copper-plated internal heat sink.

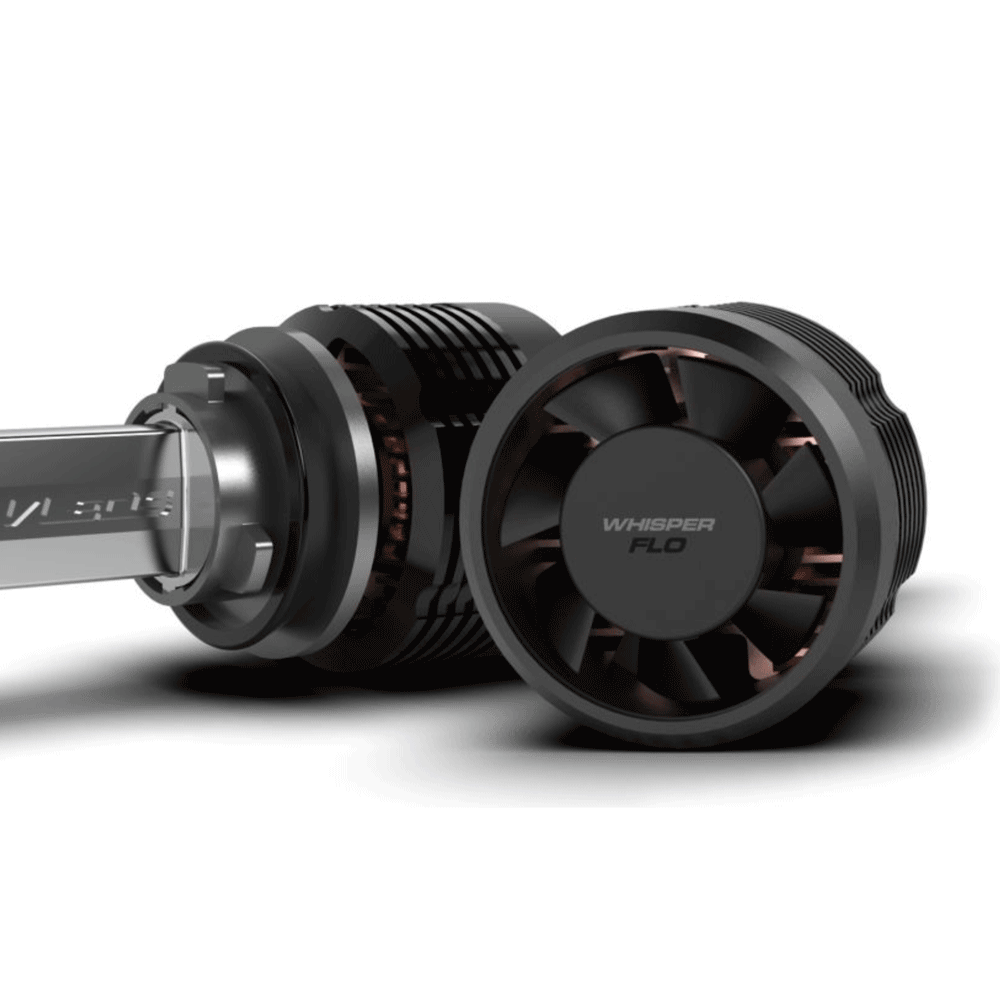

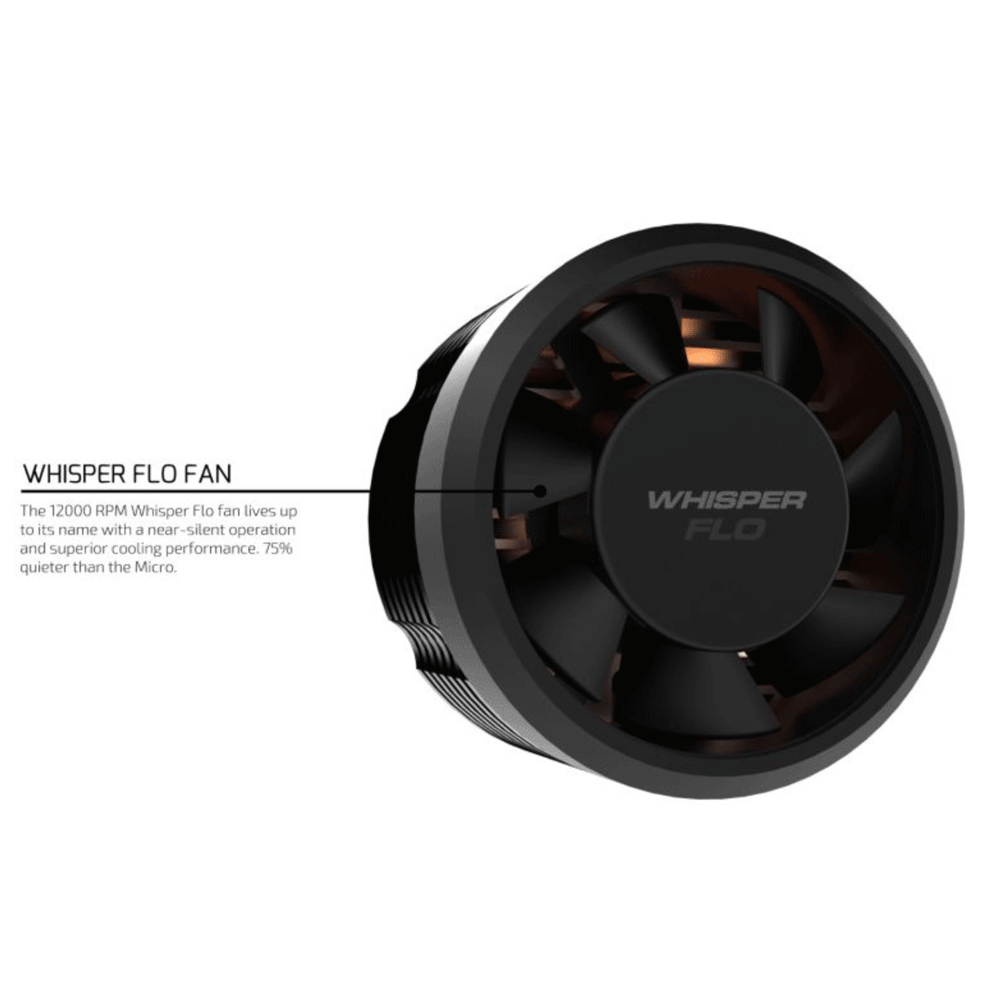

- 12000 RPM Whisper Flo fan with a near-silent 55 dB operation.
- 5500K color temperature emulates optimal daylight driving conditions.
- Over-molded wiring effectively isolates electrical components from the elements, leaving no base types or connections overlooked.
- Chrome-plated stem virtually disappears inside the housing, blending perfectly with the factory reflector.
Specs:
| Base number | H11 |
|---|---|
| Series | V50 Monochrome |
| Output | 5000LM |
| Current draw @ 14.4V | 4.7A |
| Operating voltage | 8-18V |
| Light source | HP 3570 |
| Chip quantity | 12 |
| Contact material | Nickel plated |
| Compatible bases | H11, H11SU, H11ST, H11XV, H16, H8, H9, PGJ19-2, PGJ19-1, PGJ19-5 |
| Color | 5K pure white, 6K cool white |
