Description
Direct replacement Designed specifically for the 5th Gen 21-24 4Runner with BiLED low beam/high beam (all in one under the projector) and dedicated halogen daytime running lights. No more ugly yellow DRLs! This kit is a direct replacement for the dull factory halogen DRL bulbs.
How it works When a DRL input is detected by the bulb's smart voltage sensing circuitry, the V35 bulb's output is then controlled to a set parameter, resulting in the perfect output for DRL use.
Real-world testing The DRL output level was crucial. We performed extensive on-road testing to find the perfect lumen figure. It's not too bright during overcast days or dusk and not too dim in direct sunlight. So many products on the market are either too dim, and you lose your high beams, or they are too bright, running at full output, and blind oncoming traffic.
Easy to install With just a few connections, you'll have this kit installed in no time. Everything you need is included in the kit to get that professionally installed look.
Compatibility test procedure:
Some 21+ models with factory LED headlights may use the PWM halogen DRL system. Please use the following test procedure to determine the type you have.
- Start the vehicle and leave it running in Park with the e-brake off.
- Turn on low beam headlights.
- Push the headlight turn signal switch forward to engage the high beams. The blue high beam indicator should illuminate.

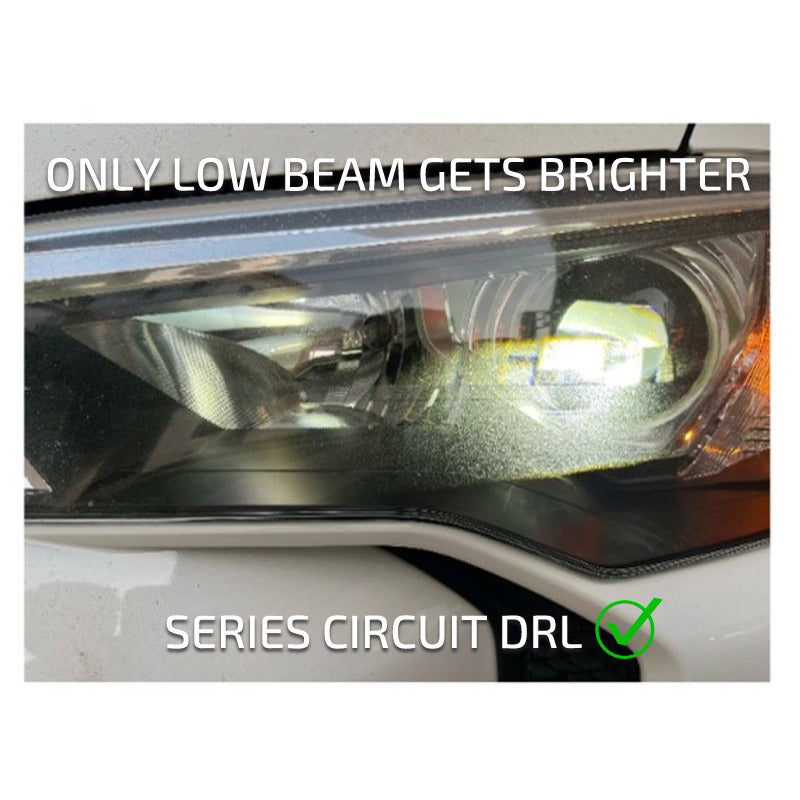

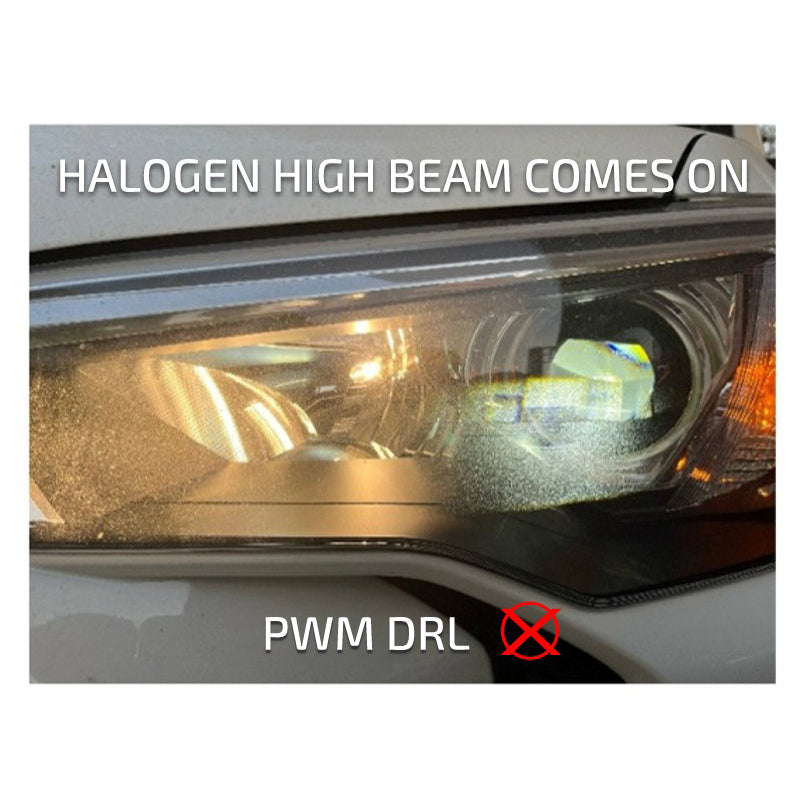

- Match the function to the images below to determine which kit you need.
Highlights:
- 6K color temp to match factory LED low beam.
- Unoffensive 400LM output.
- No flicker DRL.
- Ultra-thin, 1.5mm copper core PCB for optimal light output and a focused, crisp beam pattern.
- The HP 3570 chipset with higher output and less heat. Dedicated thermal pad for direct transfer from chip to PCB.

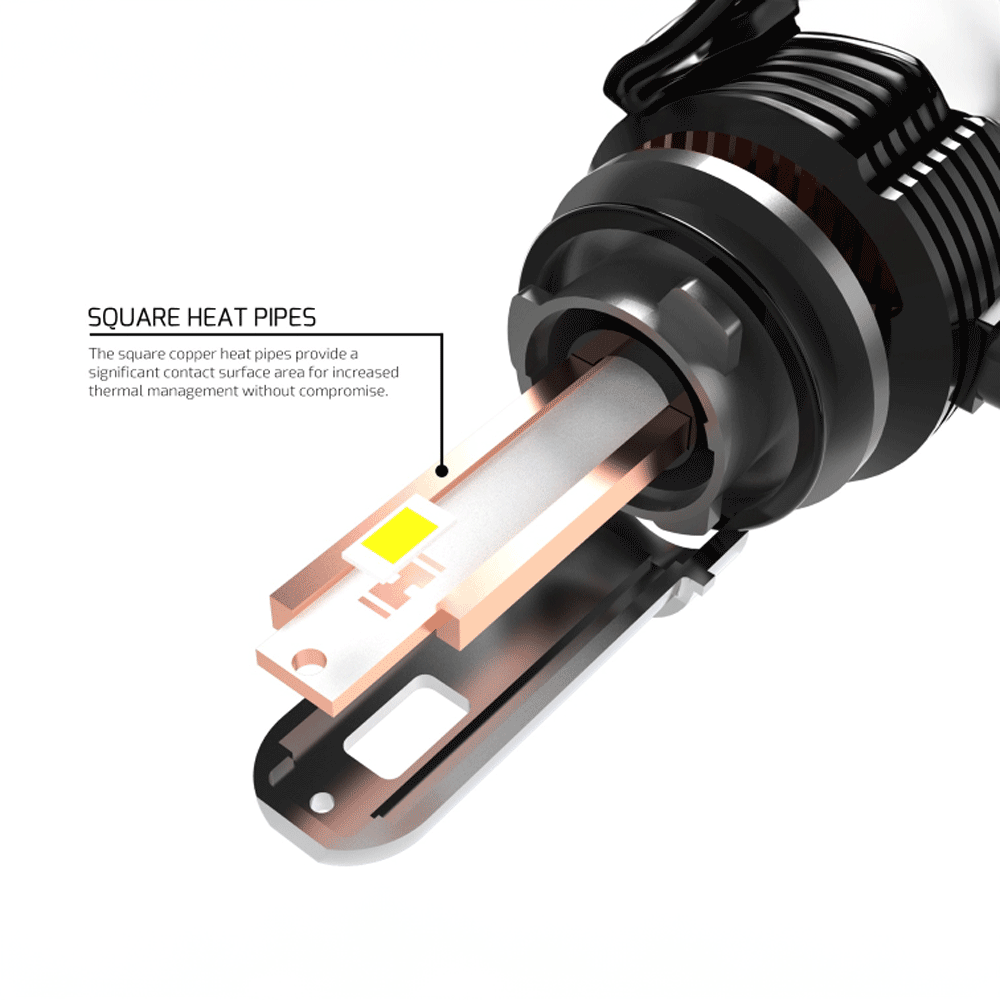

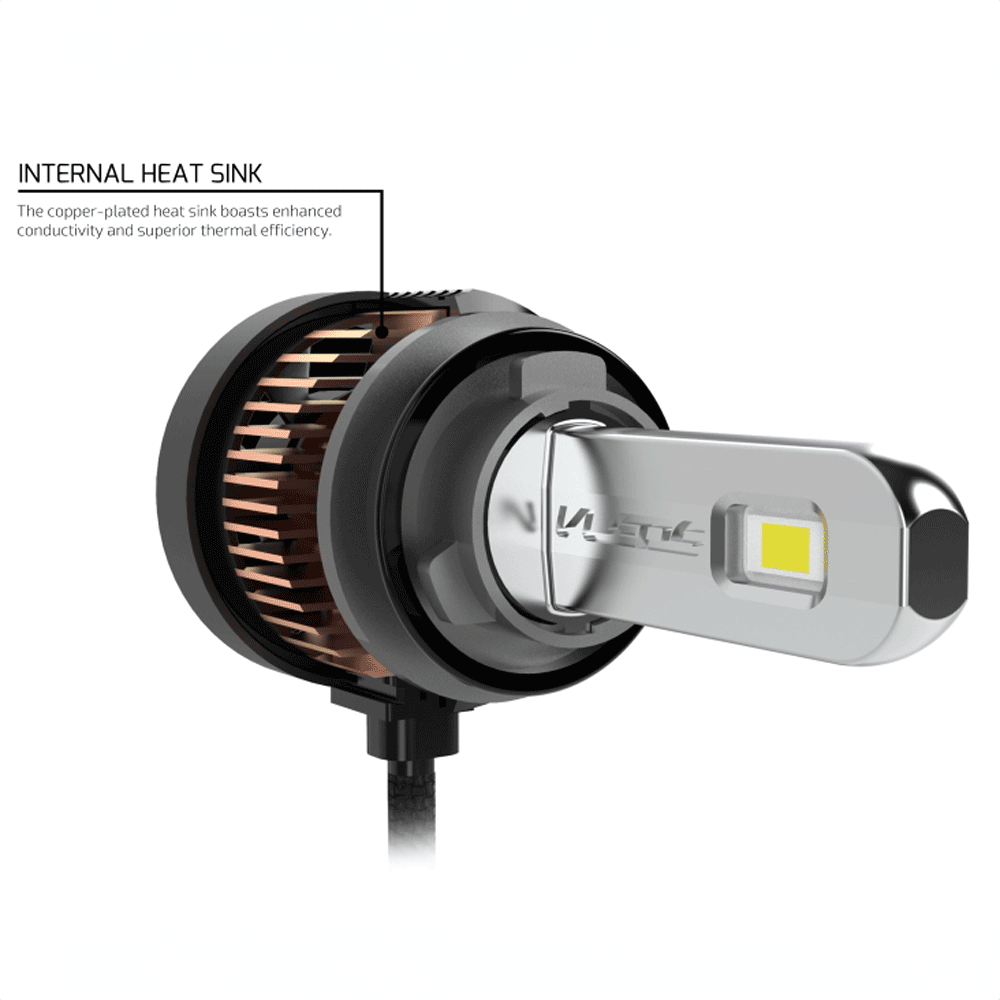

- Dual square copper heat pipes significantly increase contact surface area, enhancing efficiency in thermal management: enhanced conductivity and superior thermal efficiency with a copper-plated internal heat sink.

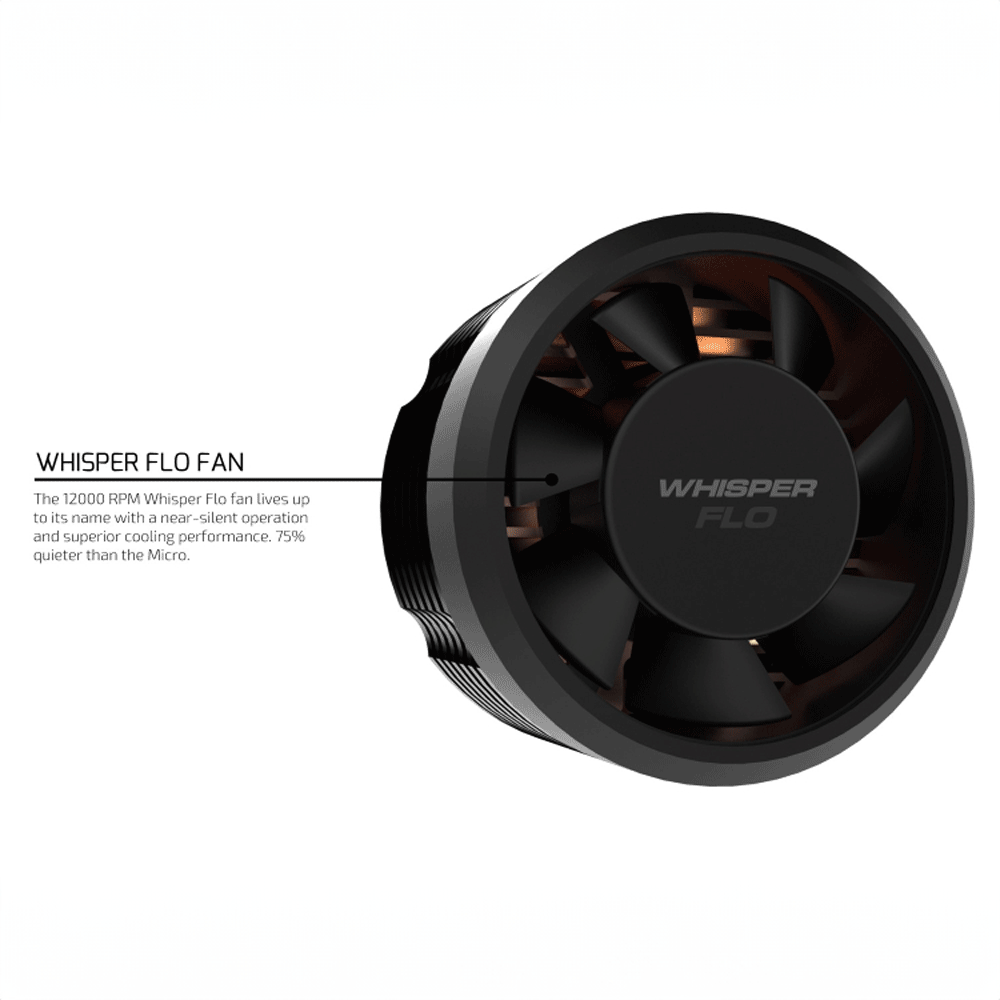

- 12000 RPM Whisper Flo fan with a near-silent 55 dB operation.
- Over-molded wiring effectively isolates electrical components from the elements, leaving no base types or connections overlooked.
- Chrome-plated stem virtually disappears inside the housing, blending perfectly with the factory reflector.
What's included:
-
2X - V35 monochrome series DRL bulbs.
- 2X - VLR_15 load resistors.
